Grant DuoWave Series User Manual

Technical
Specifications
7
Dims Model
(mm) 170 200 250 300 400
A 210 210 210 210 210
B 210 210 210 210 210
C 230 230 230 230 240
D 340 415 460 505 610
E 475 605 720 840 1005
F 510 635 745 860 1040
G 735 880 1025 1250 1430
H 795 955 1210 1475 1980
I 1025 1170 1430 1695 2050
J 1075 1230 1480 1745 2110
Dia 580 580 580 580 580

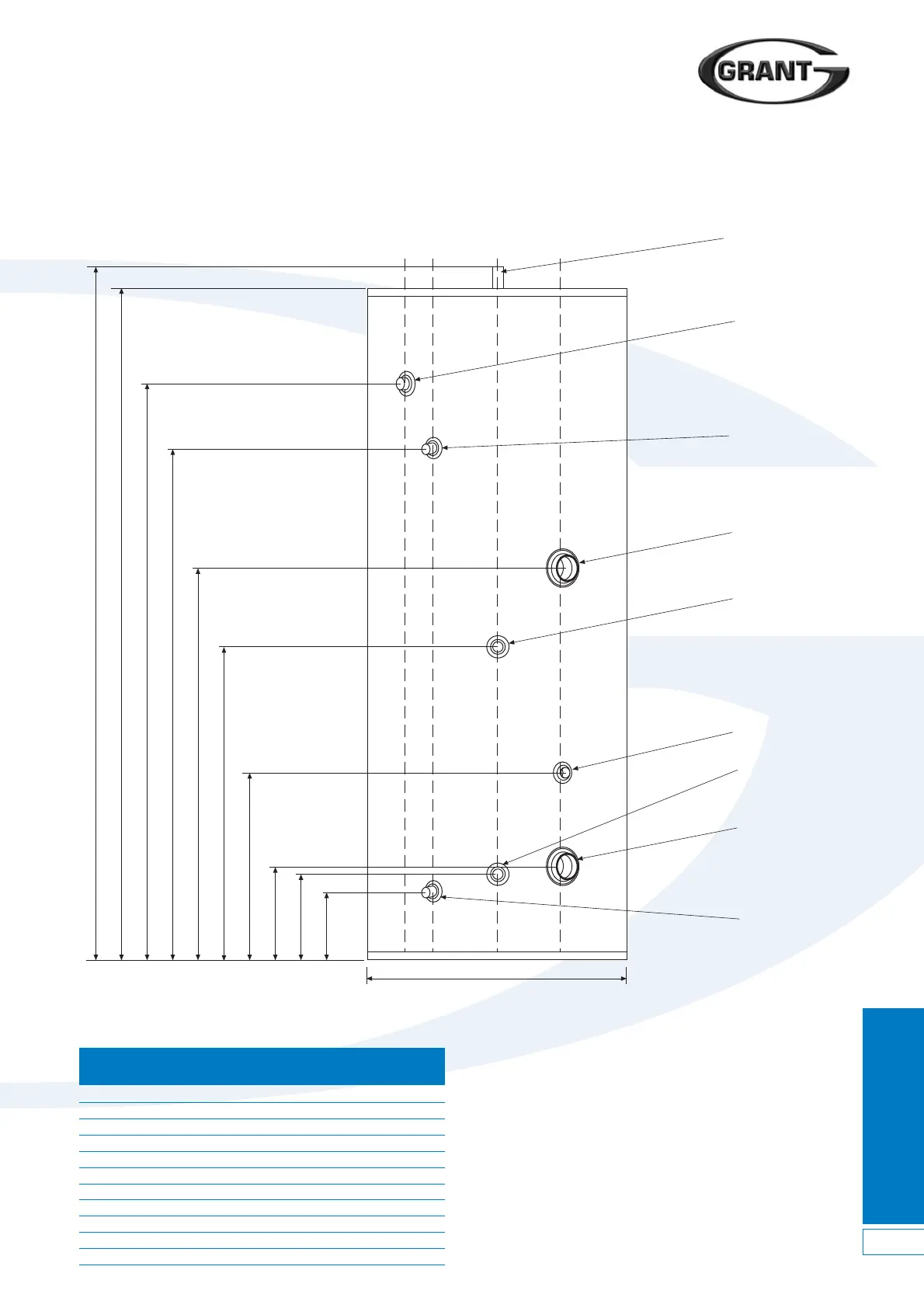

Figure 2-2: DuoWave direct solar cylinder dimensions
Dia
ABCDEFGHIJ
DuoWave Direct Solar Cylinder Dimensions
40˚ 30˚
22mm Hot water
draw off
1
/2" T & P Relief
valve (factory fitted)
22mm Secondary
return
Solar stat pocket
22mm Solar flow
Immersion heater
(factory fitted)
Immersion heater
(factory fitted)
22mm Cold water
inlet
22mm Solar return
0˚30˚
