GRAPHTEC Yamato GL240 - Connecting to a DC Power Supply

2-5
CHAPTER 2 Checks and Preparation
Connecting to a DC Power Supply
Use the optional DC drive cable (B-514).
•
Use a power supply within the 8.5 to 26.4 VDC range.
•
For DC drive cable, please be sure to use the B-514.
(1) Congure the tip of the DC drive cable (B-514: 2m) to enable it to be connected to the DC power supply.

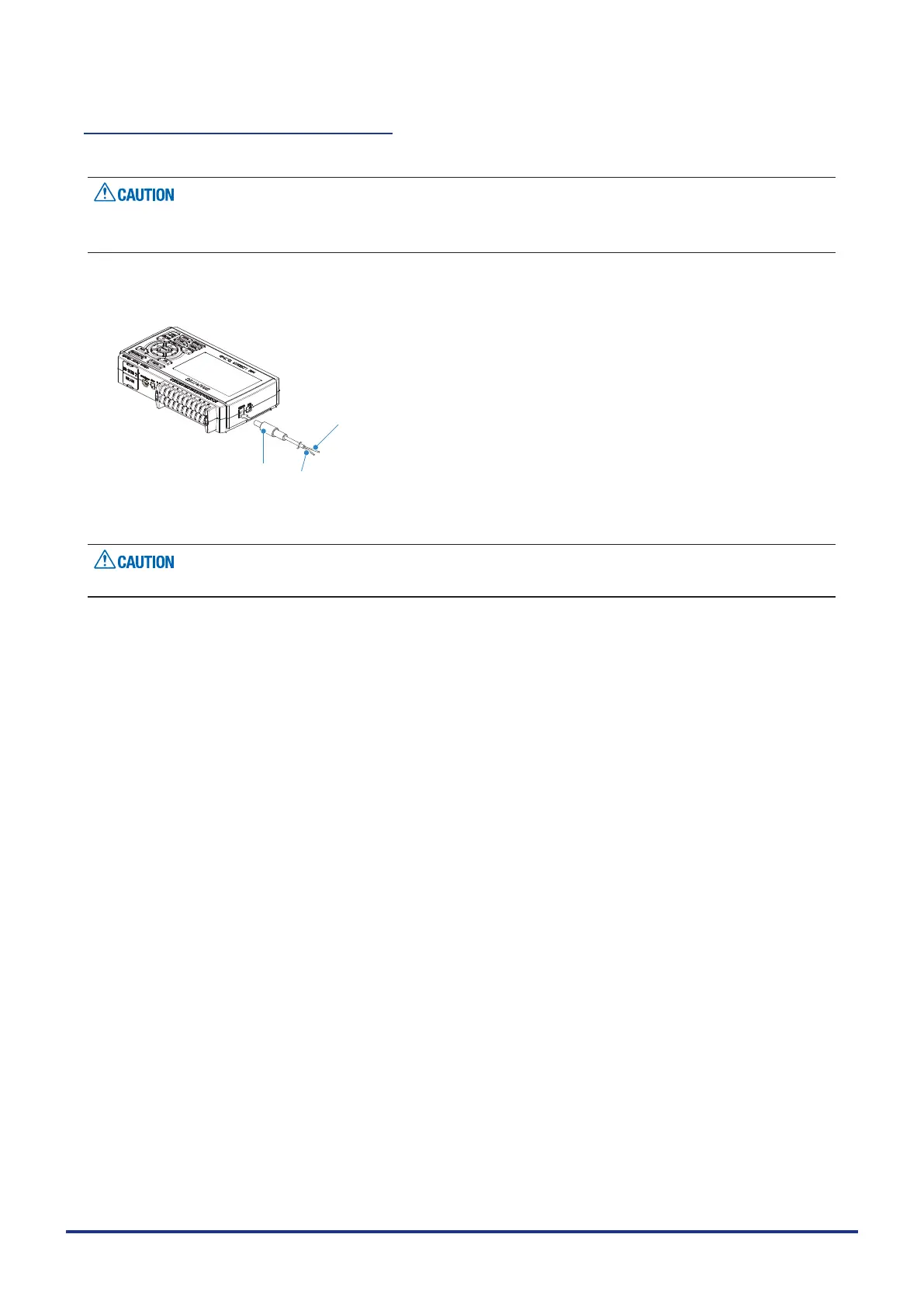

(2) Connect the DC output side to the power supply connector on the GL240.
DC drive cable
(B-514: Option)
White (+ side)
Shielded lead (- side)
(3) Connect the DC input side to the DC power supply.
Be sure to check the polarity of the wire tips when performing wiring.
(4) Press the power switch on the GL240 to the ON side to turn on the power.
