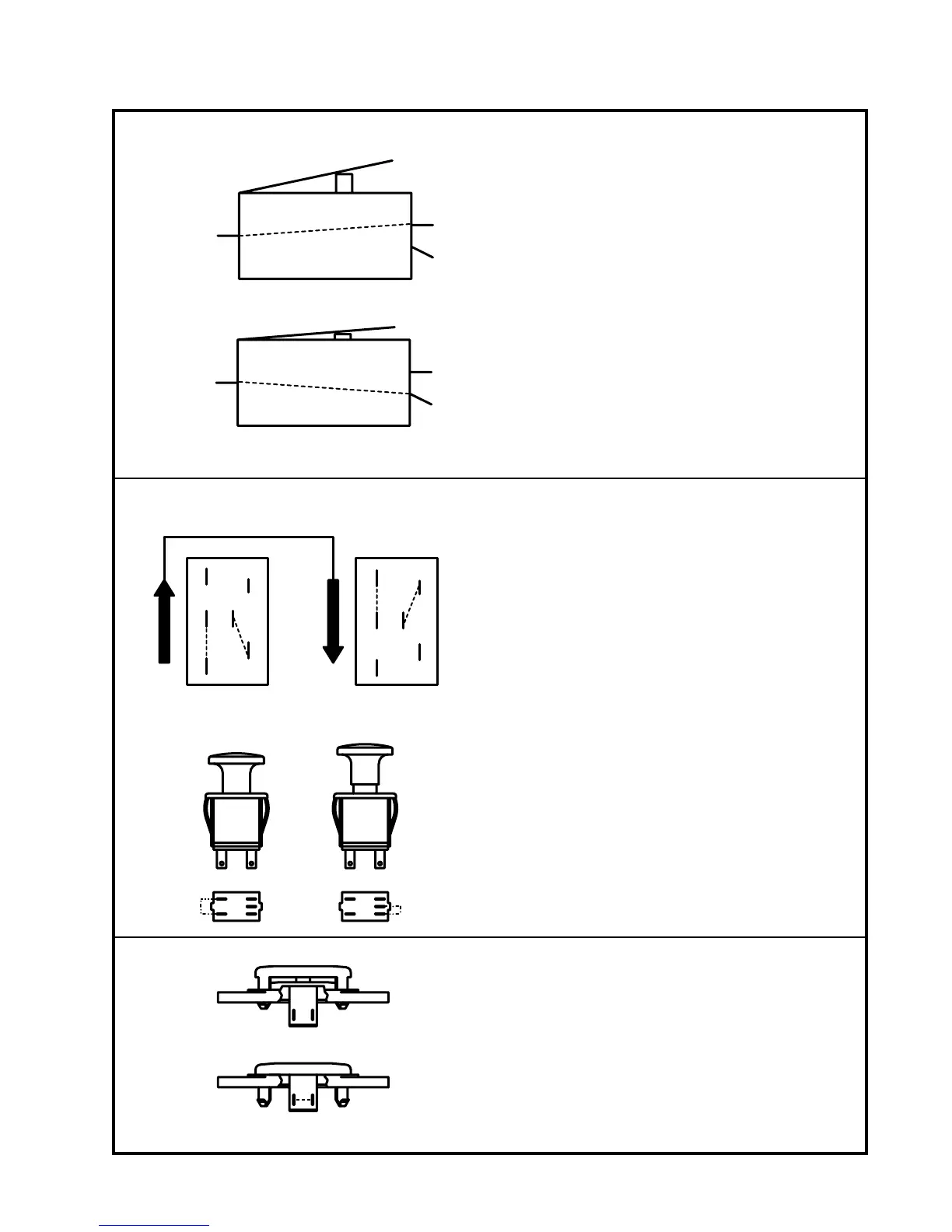

Left and right steering switch, part no. 183860.
NC (normally closed) - means that the
contact is closed with the switch
mechanism released. The contact
position is reversed when the switch
lever is depressed.
NO (normally open) - means that the
contact is open with the switch
mechanism released. The contact
position is reversed when the switch
lever is depressed.
The dotted line indicates an electrical con-
nection between the two terminal posts.
PTO switch, part no. 184082.
The dotted line indicates an electrical con-
nection between the two terminal posts.
PTO switch, part no. 183925.
The dotted line indicates an electrical con-
nection between the two terminal posts.
Seat switch, part no. 183870.
The dotted line indicates an electrical con-
nection between the two terminal posts.
SWITCH FUNCTIONS
ON
OFF
TOGGLE SWITCH POSITION
OFF
ON
RELEASED
DEPRESSED
RELEASED
DEPRESSED
NC
NO
NC
NO
COMMON
COMMON
