Grasshopper EDGE-Eze User Manual

11
Back Hole
Linkage Tube
06107

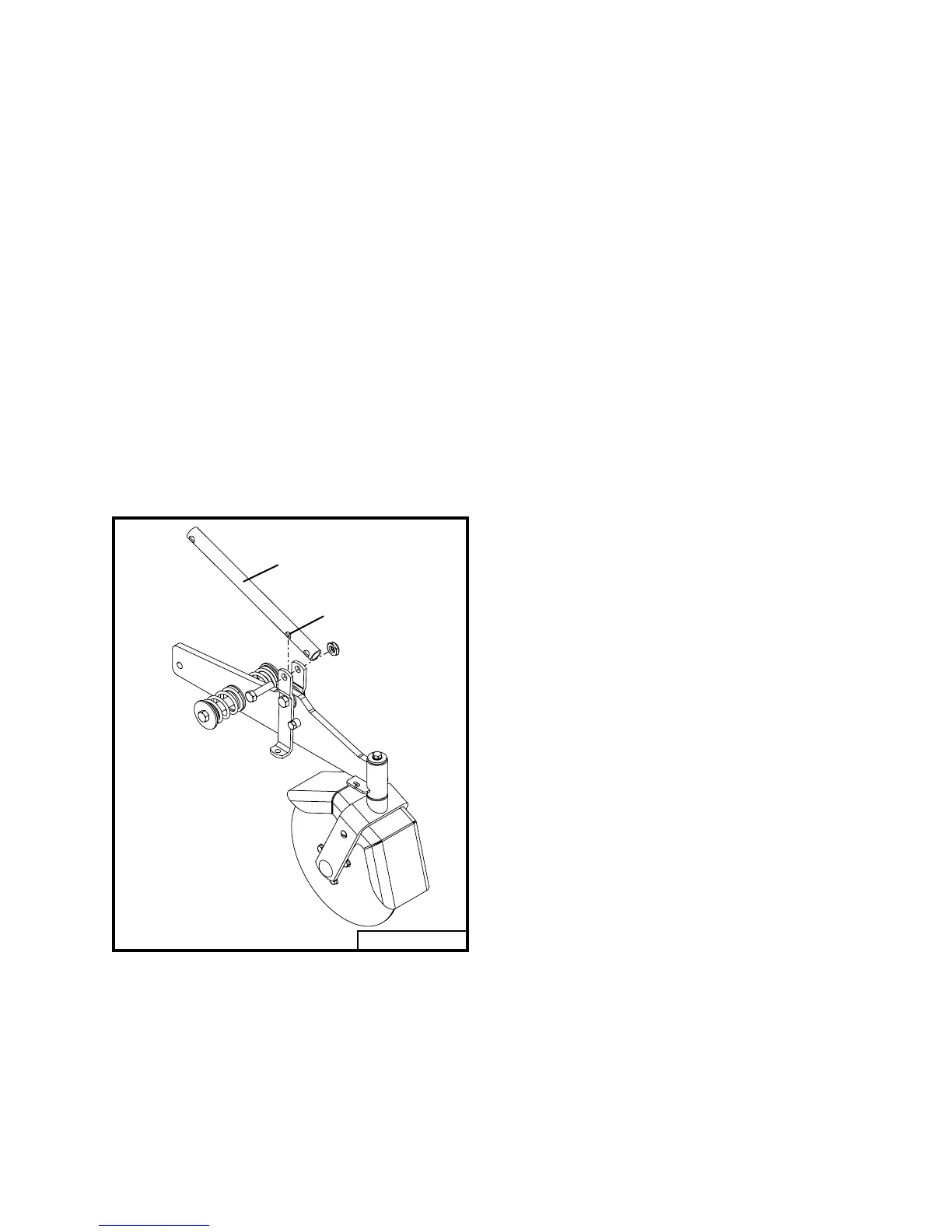

Fig. 3
MANUAL LIFT EDGER HEIGHT
ADJUSTMENT
(Refer to pages 15 & 19)
• When edger is not in use, pull back on the
disc lift lever (item 28) until edger is in its
highest position.
• When using edger, adjust the disc lift lever
forward until the edger hub (item 7) is in
contact with the supporting surface and
springs are slightly extended.
NOTE: The edger depth can be adjusted
while moving by using the lift lever on the
deck.
• A higher edger setting can be achieved by
utilizing the back hole on the front of the
edger linkage tube as shown in Fig. 3. This
may be helpful when edging curbs from the
street.
• Additional height or depth adjustment can
be made by adjusting deck height.
ELECTRIC LIFT EDGER
HEIGHT ADJUSTMENT
(Refer to pages 17 & 21)
• To set desired disc depth with the electric
edger, move the disc lift lever (item 28)
forward to the lowest notch. Adjust the
actuator with the rocker switch until the
edger hub (item 7) is in contact with the
supporting surface and springs are slightly
extended.
NOTE: The edger depth can be adjusted
while moving by using the lift lever on the
deck.
• When the edger is not in use, move the disc
lift lever back to the highest notch, then ac-
tivate the rocker switch so the disk is fully
raised.
