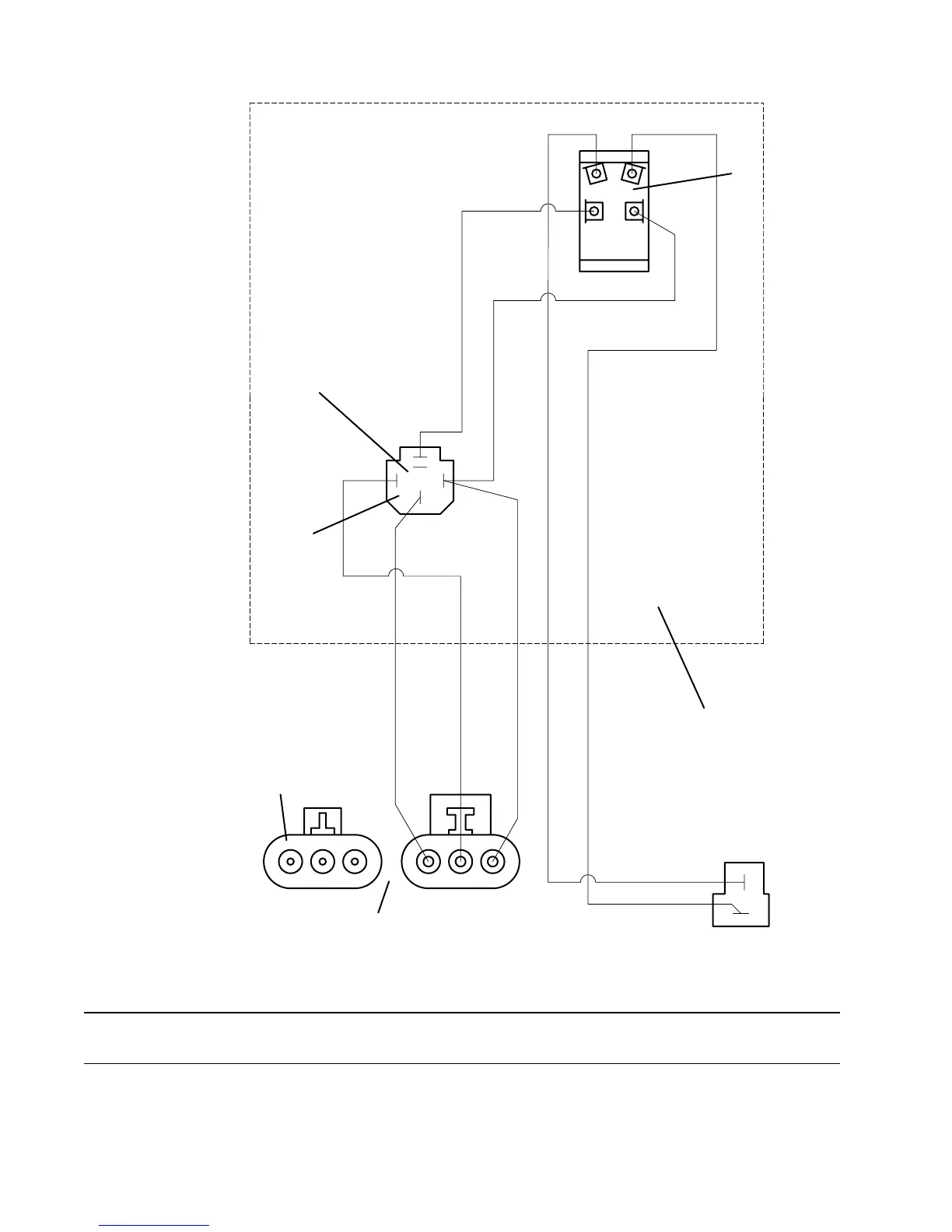

WIRING ASSEMBLY
02-06093A
Rev. 06-08
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
605852 Wiring Assembly - Edger
1 184177 Rocker Switch
2 833515 Switch Box
833524 Cover Panel - Switch Box
3 184272 Relay
22
06093A
SWITCH BOX
ABCCBA
PURPLE
GREEN
1
5 WAY FEMALE
CONNECTOR TO RELAY
3
2
BLACK
WHITE
GREEN
BLACK / WHITE
RED / WHITE
TO POWER HARNESS
#605950 (INCLUDED IN KIT)
OR
UNIVERSAL WIRING HARNESS
WITH ADAPTER #605860
WHEN REMOVING MOWER DECK
FROM TRACTOR, DISCONNECT
WIRING HARNESS AT THIS POINT
2 WAY FEMALE CONNECTOR
TO ACTUATOR MOTOR
