GRAUPNER HoTT SMART-BOX

11 33700 SMART-BOX - Graupner HoTT 2.4

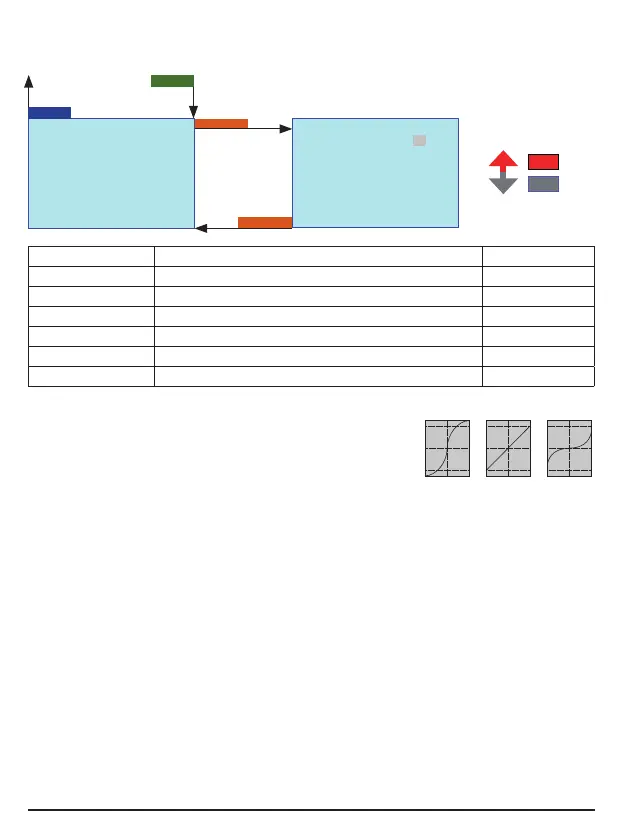

3.2.5 Expo Functios (RX CURVE)
To switch to the Expo functions display, press the ENTER button repeatedly until RX CURVE appears on
the screen.
Display Description Setup
CURVE1 CH Channel number, servo curve 1 1 – 8
CURVE1 TYPE Servo curve 1 Type A, B, C
CURVE2 CH Channel number, servo curve 2 1 – 8
CURVE2 TYPE Servo curve 2 Type A, B, C
CURVE3 CH Channel number, servo curve 3 1 – 8
CURVE3 TYPE Servo curve 3 Type A, B, C
The servo curve function is used to manage the exponential function
for up to three servos.
CURVE1 CH: this function is used to select the desired channel of the
fi rst servo; the remainder of the settings in CURVE 1 TYPE only affect
the channel selected at this point
CURVE1 TYPE: at this point you can select the servo curve for the channel selected under CURVE 1 CH.
A: EXPO = -100% and DUAL RATE = 125%
The servo responds slowly to stick movements around the neutral position, but the curve becomes
steeper with increasing control travel.
B: linear setting: the servo’s response to stick movements is linear The servo follows the stick movement
with a linear response.
C: EXPO = +100% and DUAL RATE = 70%
The servo responds slowly to stick movements around the neutral position, but the curve becomes steeper
with increasing control travel.
Note:
The control characteristics programmed at this point also affect mapped receiver outputs.
CURVE2 CH: this function is used to select the desired channel of the second servo; the remainder of the
settings in CURVE 2 TYPE only affect the channel selected at this point
CURVE2 TYPE: at this point you can select the servo curve for the channel selected under CURVE 2 CH.
CURVE3 CH: this function is used to select the desired channel of the second servo; the remainder of the
settings in CURVE 3 TYPE only affect the channel selected at this point
CURVE3 TYPE: at this point you can select the servo curve for the channel selected under CURVE 3 CH.
RX CURVE < >
CURVE 1 CH : 01
TYPE : B
CURVE 2 CH : 02
TYPE : B
CURVE 3 CH : 03
TYPE: B
INC + DEC
INC + DEC
INC
DEC
ENTER
ESC
RX CURVE < >
CURVE 1 CH : 01
TYPE : B
CURVE 2 CH : 02
TYPE : B
CURVE 3 CH : 03
TYPE: B
Expo = +100%
–100%
+100%
0
–100%
+100%
0
Expo = –100%
TYP A
–100%
+100%
0
–100%
+100%
0
linear
–100%
+100%
0
–100%
+100%
0
TYP B
TYP C
DR = 125% DR = 70%
Servoweg
Geberweg
Servoweg
Geberweg
Servoweg
Geberweg
