07 33700 SMART-BOX - Graupner HoTT 2.4

3.2.2 Servo data (RX SERVO)

To switch to the servo data display, press the ENTER button repeatedly until RX SERVO appears on the

screen.

Channel select (OUTPUT CH): here you select the desired channel; the remainder of the settings in this

display only affect the channel which you select at this point.

Servo reverse (REVERSE): sests the direction of rotation of the connected servo

Normal: REVERSE OFF

Reverse: REVERSE ON

Servo centre (CENTER): The “CENTRE” line displays the current pulse width in μs of the control channel

selected in the “OUTPUT CH” line. The displayed value varies according to the current position of the

transmitter control which affects this control channel, and also its trim position. A pulse width of 1500 μs

corresponds to the standard centre position, and therefore the usual servo centre setting.

To change this value, select the “CENTRE” line and touch the INC + DEC buttons simultanously. Move the

corresponding transmitter control to the desired position, and touch the INC + DEC buttons again to store the

current transmitter control position. This position is now stored as the new neutral position.

Trim position (TRIM): The purpose of the “TRIM” line is to provide ﬁ ne adjustment of the neutral position of

a servo connected to the control channel selected in the “OUTPUT CH” line. Adjustments are made in 1 μs

increments using the INC or DEC buttons. The value in the “CENTRE” line can be adjusted over the range

+/- 120 μs around the TRIM value set here.

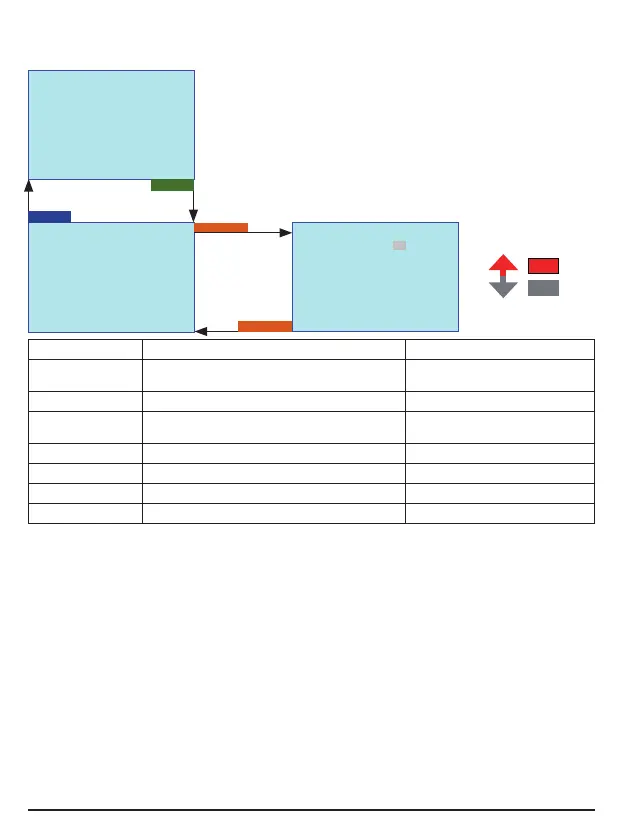

Display Description Setup

OUTPUT CH Channel select 1 – X, depends on the connected

receiver

REVERSE Servo reverse OFF / ON

CENTER Neutral point in usec. If active (highlighted), according

to transmitter control position

TRIM Trim position in usec. -120 – 120 usec

TRAVEL- Servo travel in %, negativ 30 – 150%

TRAVEL+ Servo travel in %, positiv 30 – 150%

PERIOD Cycle time in msec. 10 oder 20 msec

RX DATAVIEW >

S-QUA 100% S-dBm -49dBm

S-STR 065% R-TEM. +30°C

L PACK TIME 00005msec

R-VOLT : 05.9V

LR-VOLT : 05.8V

SENSOR1 : 00.0V 00°C

SENSOR2 : 00.0V 00°C

RX SERVO < >

OUTPUT CH: 01

REVERSE : ON

CENTER : 1500usec

TRIM : -000usec

TRAVEL- : 100%

TRAVEL+ : 100%

PERIOD : 20msec

INC + DEC

INC

DEC

ENTER

ESC
