12 / 16
3974.32_MP_V1
Installation / Connection
Procedure: The Kingpad is connected to any proportional channel (5
pins). A switching channel (3 pins) is not suitable!
The XH plug has a reverse polarity protection.
In the model, this separate channel from the receiver must be
connected to the "Kingpad" input on the Graupner central module.
Driving and steering channel must continue to remain connected to
the central module as well!

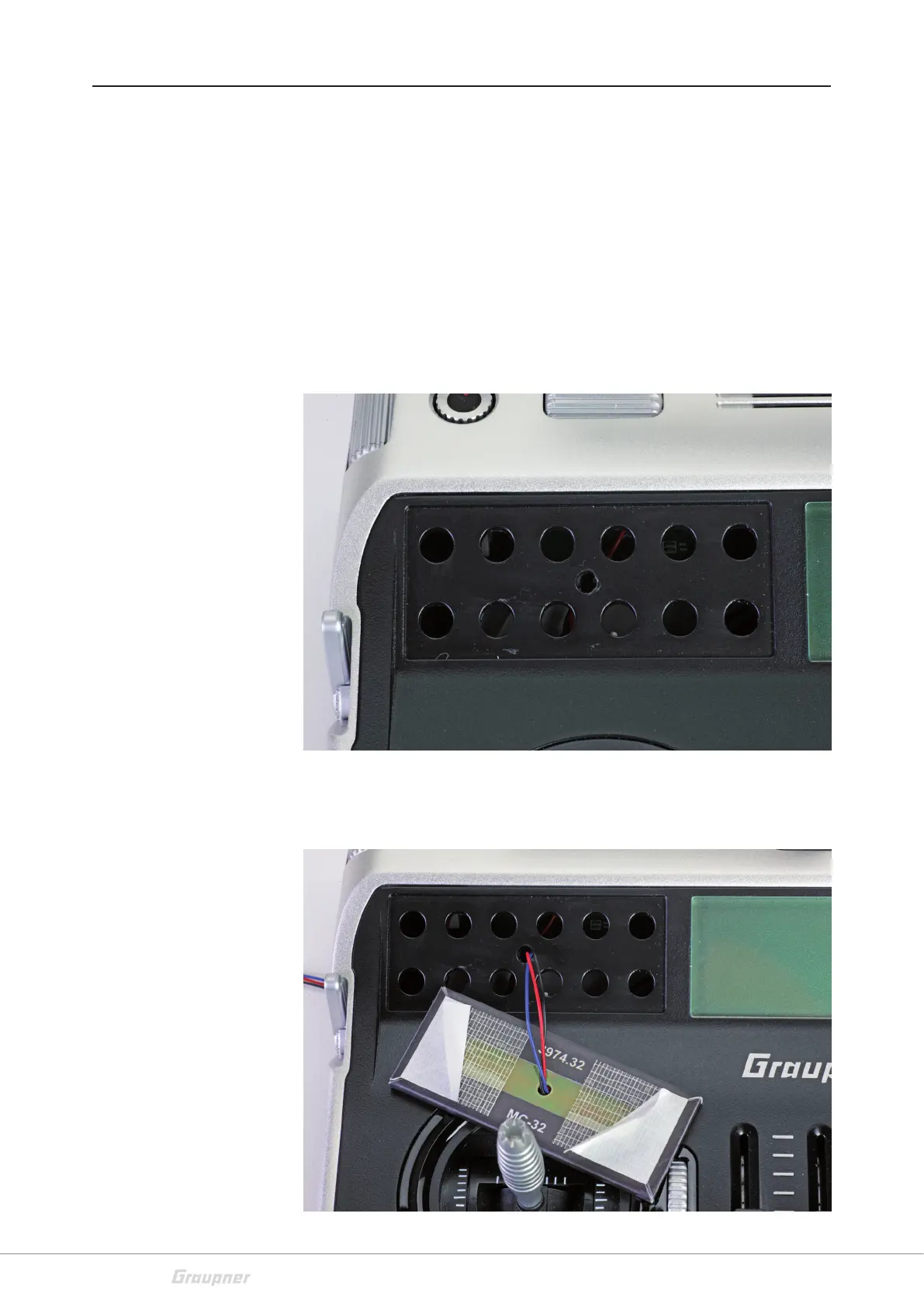

First, remove the built-in switches and the aluminum trim board
Drill a 4 mm hole in the center of the plastic housing
Now the cables WITHOUT plugs are led through the hole.
Now remove the protective adhesive and place the pad in the
recess of the transmitter. Please push gently!
Bundle the cables of the Kingpad with the existing switch cables
