Graupner MC-19

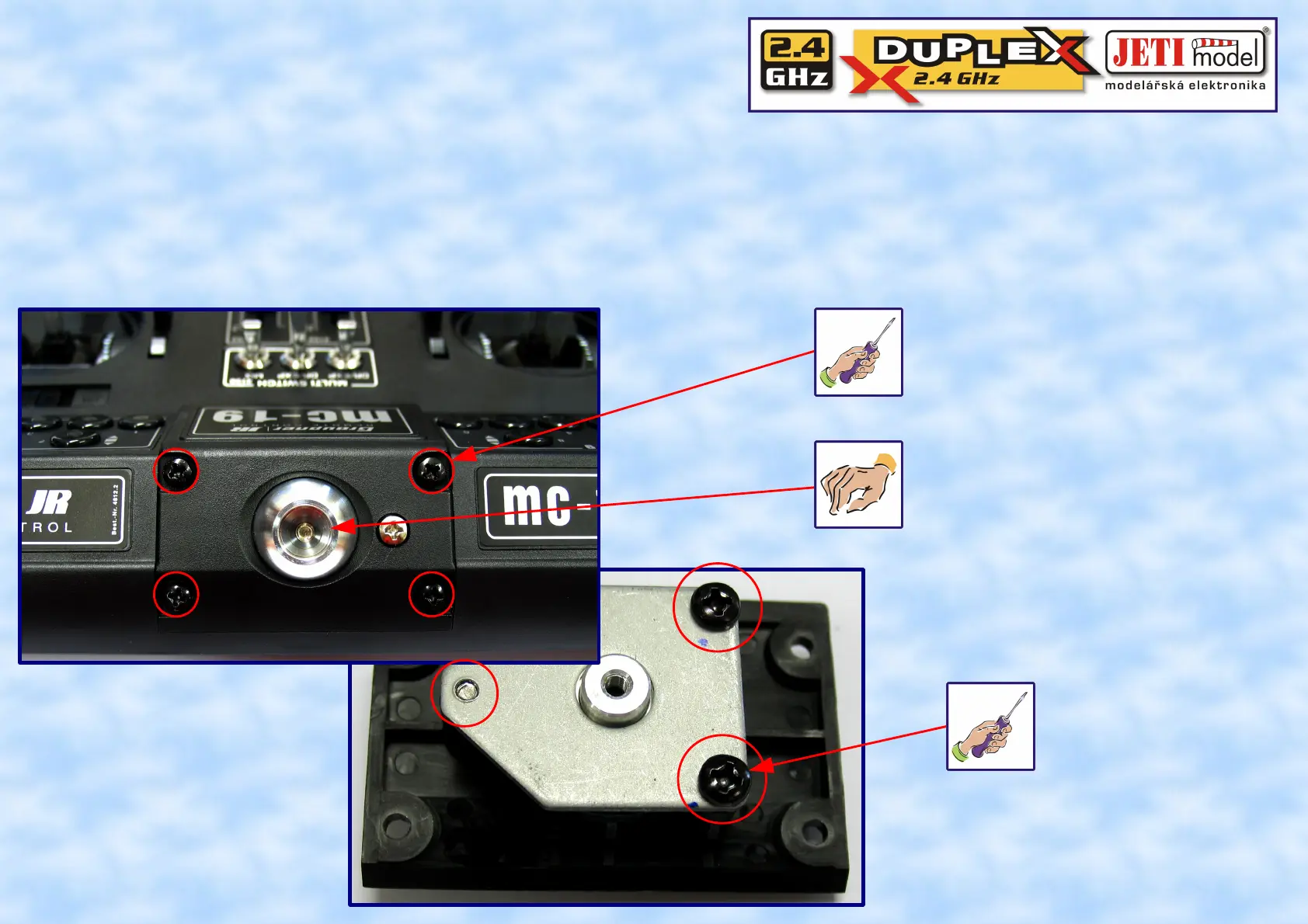

Unscrew 4 screws
Remove antenna module
Unscrew the screws that
hold the joint
If the 2.4 Ghz antenna is installed to the place of original antenna, it is necessary to
remove metal joint. Unscrew 4 screws that hold antenna plastic part in the transmitter and
remove it. Metal joint is held by 3 screws. Unscrew all of them.
