Graupner MC-19
Drill one 6mm hole
Drill three 3mm holes
Cut out the plastic part
Mount antenna connector
to the hole in the plastic
part

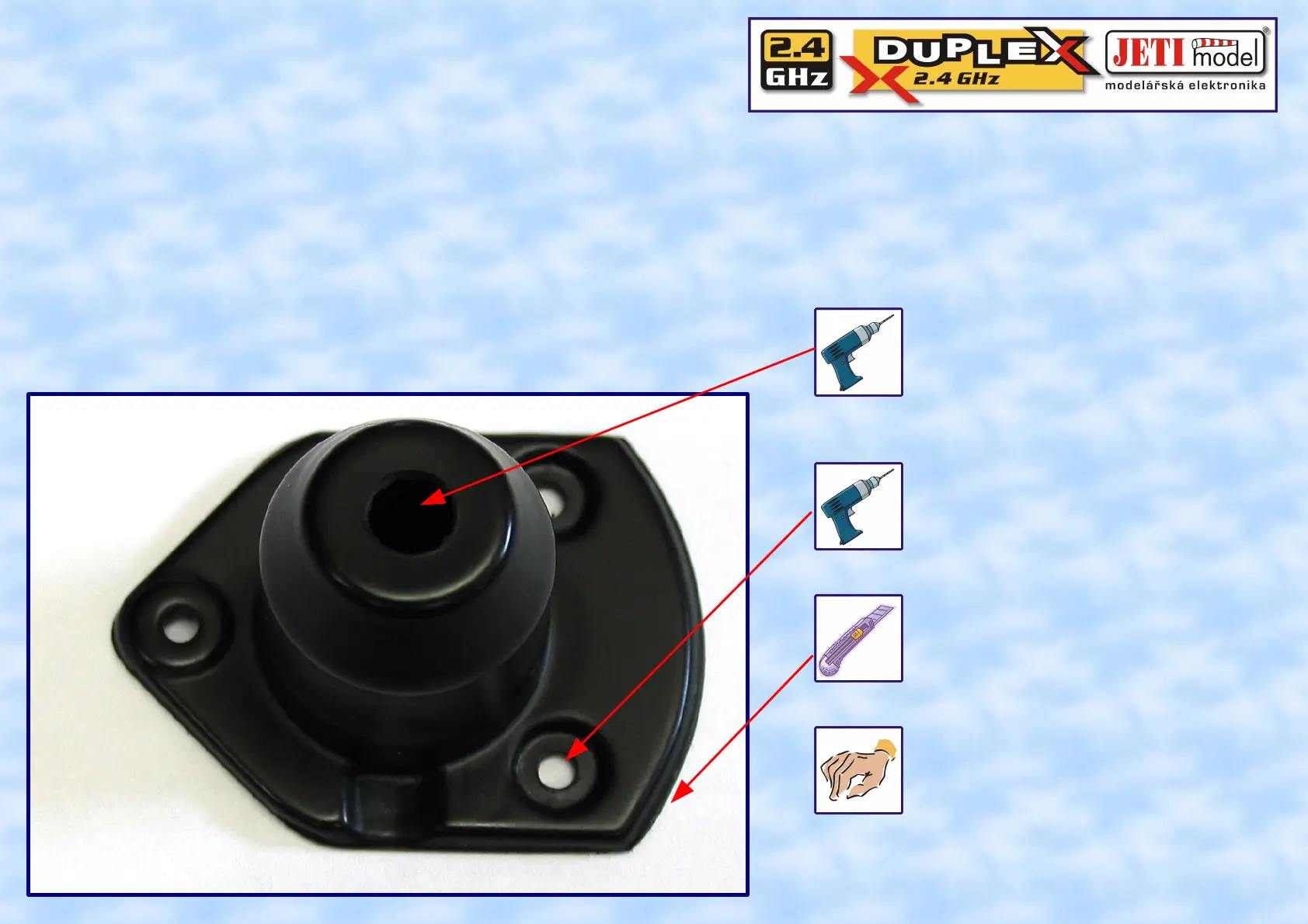

2.4GHz antenna will be held by plastic part from G19 assembly kit. It is necessary to drill
6mm hole for mounting the antenna connector and three 3mm holes for mounting this part
to the antenna module. Cut out the part to the required shape, see picture. Unscrew the
nut and washer from the antenna connector. Put the antenna connector out from the inside
of the transmitter through the hole in the plastic part. Insert the washer and screw the nut.
