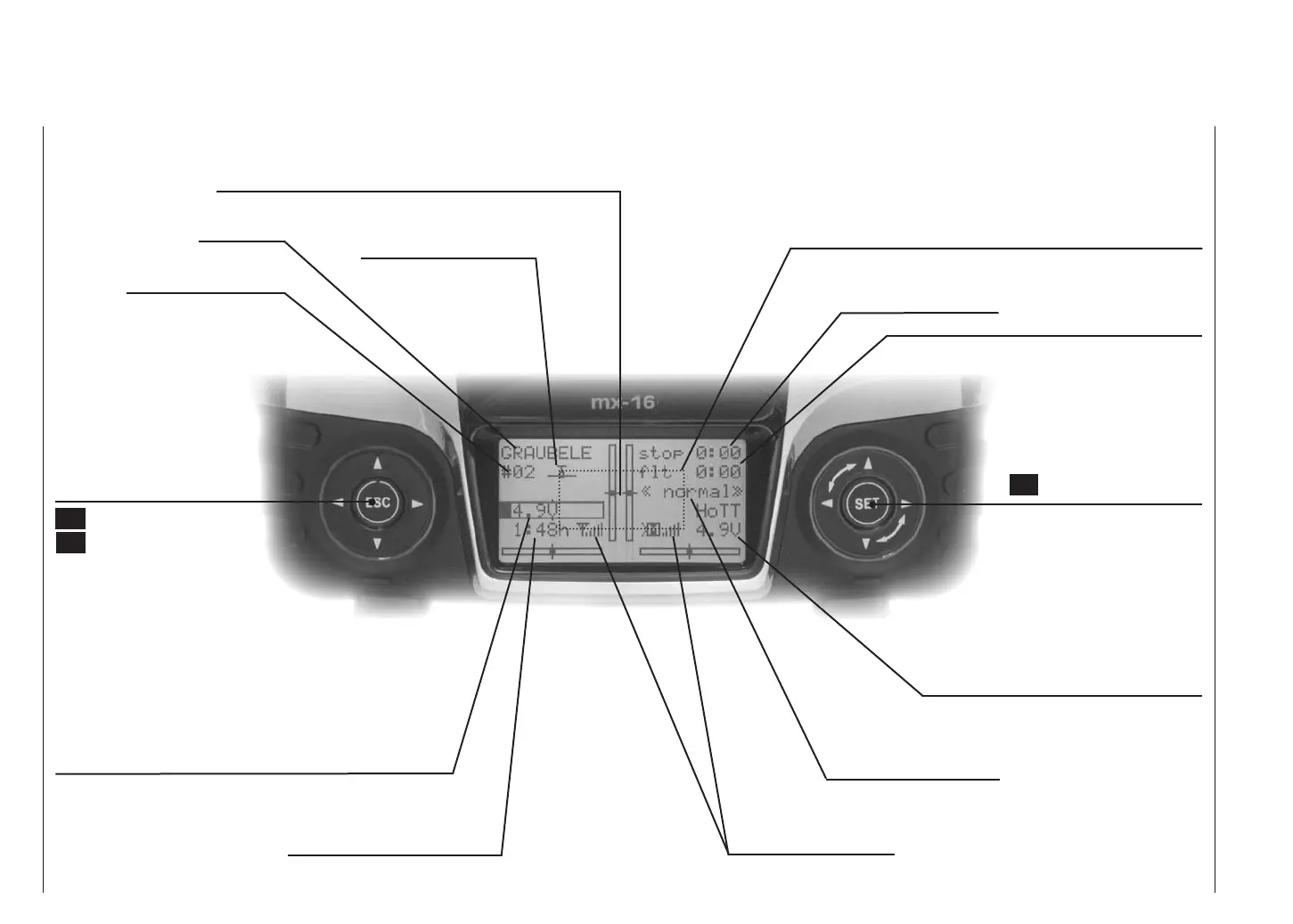

Description of transmitter - screen and keypad
Signal strength indicator
Battery operating time since
last battery charge, in hr:min
Screen and keypad
Flight timer in min:sec
(count-up / count-down)
Stopwatch in min:sec
(count-up / count-down)
Flight phase name
Switching between
flight phases using switch
Receiver power supply voltage
Right-hand touch-key
leaf through / alter values
SET Select / Confirm
Model name
Model memory 1 … 20
Battery voltage
(If battery voltage falls below a particular level, you will see
a warning display - see “Warning notes” on page 36. At the
same time the transmitter emits an audible warning signal.)
Visual display of the trim lever positions; alternatively - if rota-
ry controls CTRL 7 … 9 are operated - display of the current
settings of these two controls
Model type display
(fixed-wing / helicopter)
Left-hand touch-key
leaf through
pressed briefly together:
switches to Servo display
menu
ESC = interrupt / back
ESC touched for about three
seconds; Switches to the
Telemetry menu, and
back to the base display
See page 36 for possible warnings
Simultaneous brief press of
or = CLEAR
