31 32

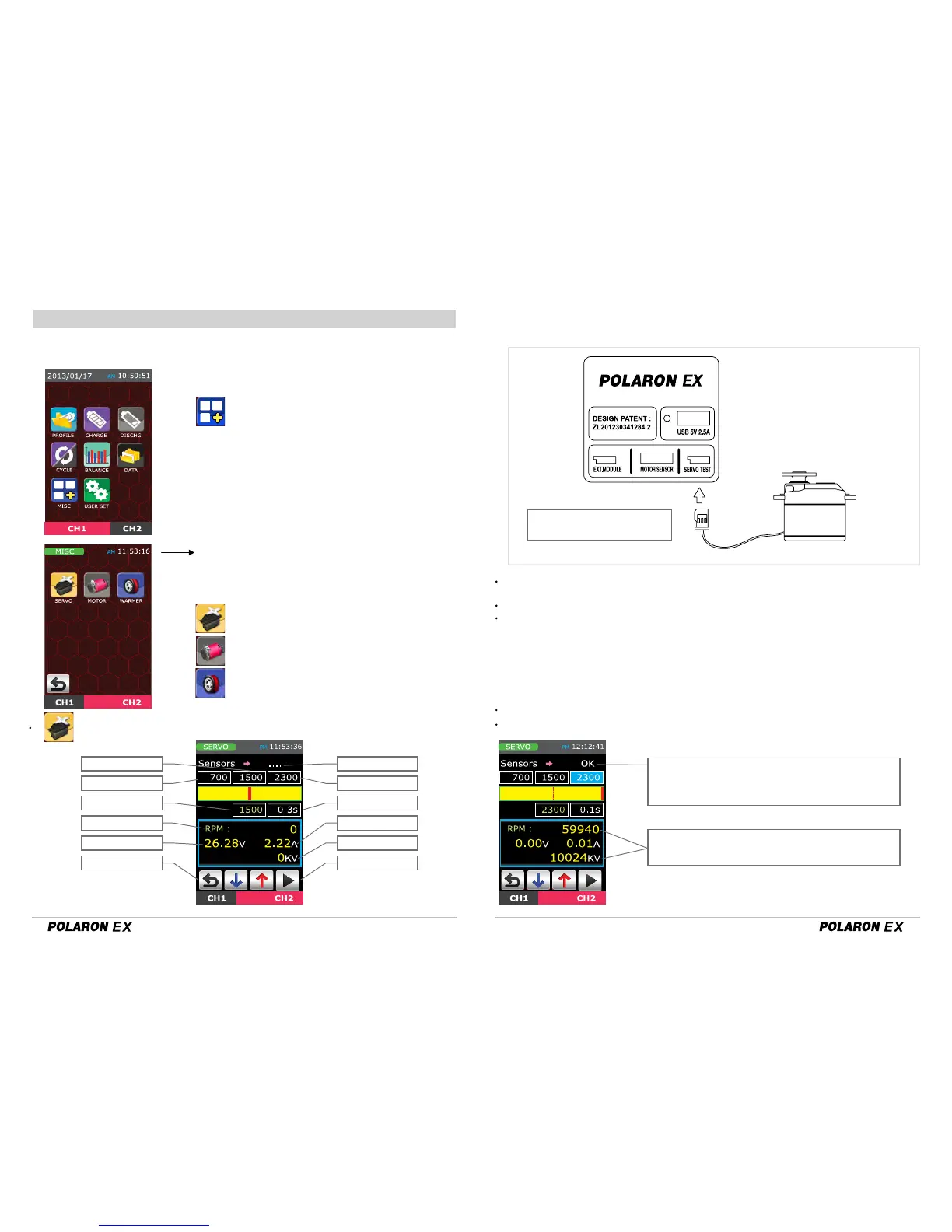

◎ MISE PAGE (Addition function)
Tap MISE icon to program MISE setup at
main page
You may use the additional function at CH1
or CH2, which is not operated.
This is MISE setup page.
When to tap 3 icons, each mode can be accessed and tap ESC
button to get back to the previous page at each mode
When to tap MISE icon on main page, you may access to MISE mode and program Servo,
Brushless/Brushed power motor, Warmer function.
- It is used to test Servo and Brushless Motor
- It is used to test and tame Brushed Motor
- It is used to warm up battery and tire
Servo and Brushless motor testing setup
Check the servo connector
polarity S,+,-
1) Servo test division (Screen top)
- Connect Servo to the connecter in the right side of charger, refer below picture
2) Motor test division (Screen Top and bottom)
- Motor sensor connector and servo test connector are used
Min, Mid, Max signal
Auto loop time
Output signal
Sensors on the top shows whether 3 sensors in the motor is OK or not
RPM and Kv are shown in the bottom
:
When to tap the relevant buttons, servo is operated in accordance with the preset
signal. The parameters of each article can be changed tapping DEC/
INC buttons
:
When to tap Enter button after setting 0.1~5.0sec, Auto loop is operated.
The high power servo may not be operated smoothly in the short operating
time since it needs much more peak current. In this case, extend the
operating time
Rotate the motor shaft for about 5 seconds continuously,
then the charger shows whether sensor is OK or not.
Motor should be connected to motor sensor connector
To check motor RPM and Kv, the optional splitter is
needed , refer below picture
: It shows the current signal output parameters
Mid signal Sensor check
Min signal Max signal
Output Signal Auto loop time
Motor RPM Output current
Output voltage Kv data
Stop Start
