33 34
The optional accessory

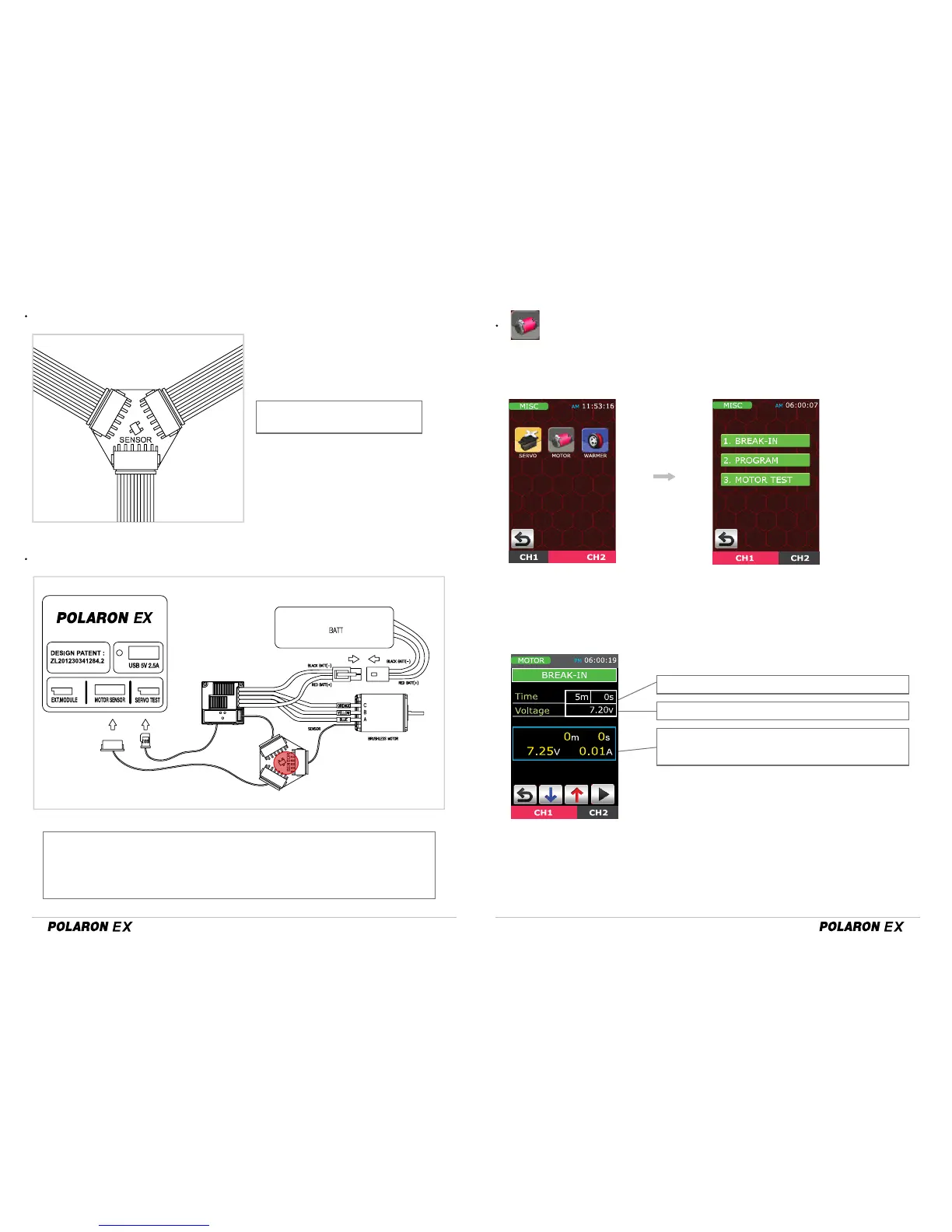

Connection configuration for ESC, Motor, Battery, Wire splitter
Wire splitter for testing motor sensor
(S8002)
It is for connection of charger side terminal.
The connector marked “sensor in the wire splitter is connected to motor and the left 2
connectors are connected to charge and ESC
ESC signal connector is connected to charge servo test socket
Brushed motor setup
Connect motor to 4mm banana charge socket and tap MOTORicon to access motor setup mode
This page is consisted of 3 menus
1) Break-In
- Motor is operated and tamed with the preset voltage for the preset time
2) Program
- There are 4 steps. Set voltage, operating time, delay time and number of cycle for
every 4 steps and tap Enter button. The charge will repeat to tame motor as many as
the preset number of cycle. The blue character shows the current process
The operating time is set by minute, second
The operating voltage is set
Tap Enter button to check the operating time, voltage,
consumption current
To Next Page
