Description of the transmitter

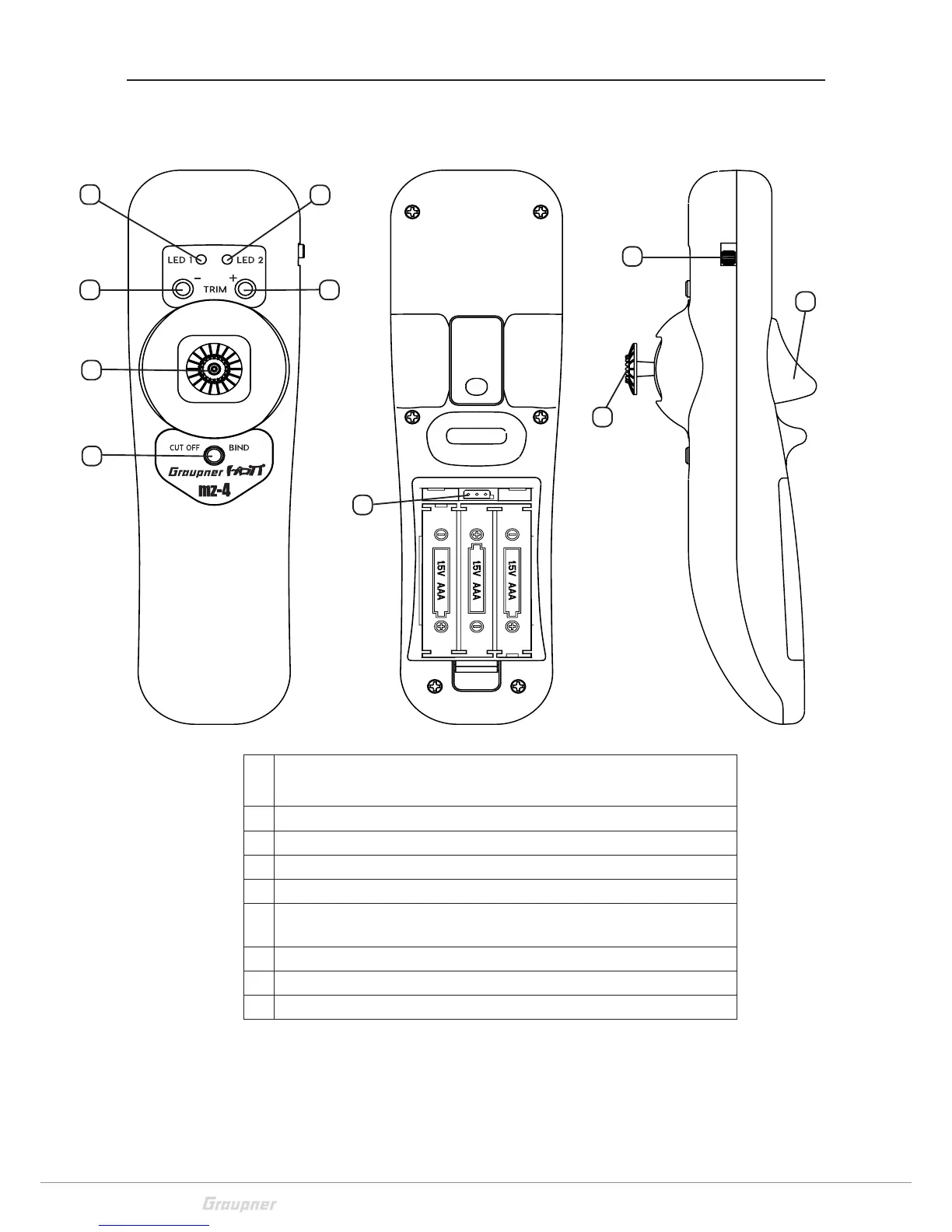

Control elements on the transmitter
1 LED 1, yellow (Motor cut-off display, model memory) LED ON: Motor OFF
Model memory 1, LED 1 blinks 1x each 2seconds.
2 LED 2, red (status and binding display, warnings) ON: bound*
3 Trim - (trim and servo travel setting)
4 Trim + (trim and servo travel setting)
5 CUT OFF/BIND (binding / motor cut-off)
6 Control stick gimbal (with control stick switch for model change/throttle
limiter)
7 Data-port for updates
8 Trigger-switch (throttle travel and functions setting)
9 On/off switch
* Acoustic warning:
LED 2 blinking and 2x higher signal tones - Model battery under voltage
LED 2 blinking and 4x higher signal tones - transmitter battery under voltage
