Gravely 200 Series - Modifying Exhaust and Mounting Bagger; Modify Muffler Exhaust Direction; Install Bagger Mount

8
MODIFY MUFFLER EXHAUST DIRECTION
1. Install exhaust deflector (item 10) on rear bumper
with four locking nuts (item 23) and hex bolts
(item 15) (figure 3). If needed, drill two 9/32" holes
for mounting hardware.
INSTALL BAGGER MOUNT FIGURE 4
1. Remove original mounting hardware from rear
bumper.
2. Drill out the three holes, through both walls, with
13/32" drill bit (if needed).
3. Install lower mount (item 7) on rear bumper and
frame with six .38-16 x 3.25 hex bolts (item 19) and
.38-16 nyloc nuts (item 17).
CAUTION: Exhaust gases can melt mesh bags
and cause a fire hazard. Make sure exhaust
gases vent to the side or downward and not
directly on the mesh bags.
Item Description Item Description
10 Exhaust Deflector 23 .25-20 Locking Nut
15 .25-20 x .50 Hex
Bolt
35 .312 x .734 x .065
Flat Washer

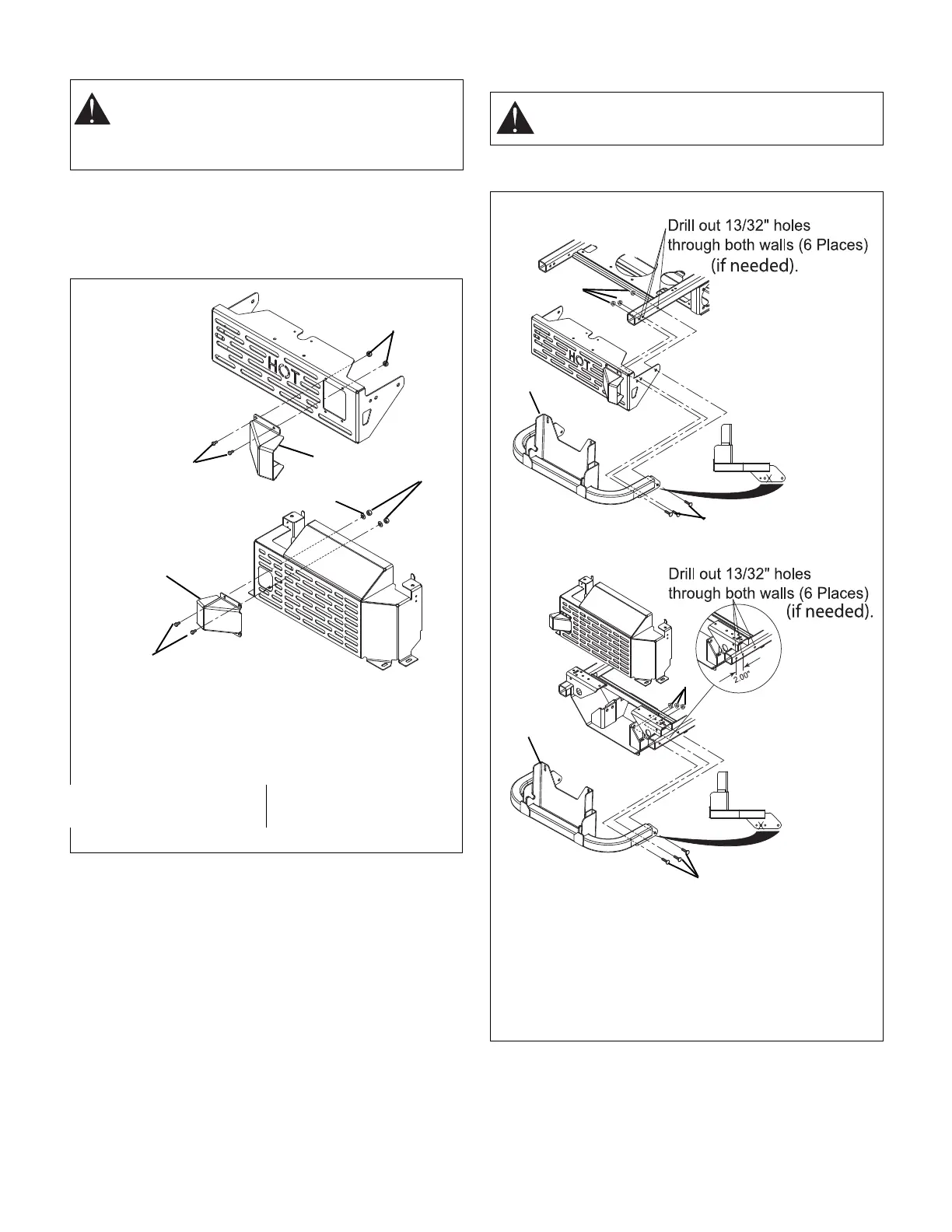

Figure 3
ODd0310
10
10
15
23
23
15
35
200 Series
Vertical Shaft
200 Series Diesel
CAUTION: Support rear bumper prior to
removing original mounting hardware.
Item Description
7 Lower Mount
19 .38-16 x 3.25 Hex
Bolt
17 .38-16 Nyloc Nut
Figure 4
ODd0395
200 Series
Vertical Shaft
200 Series Diesel
17
19
7
17
19
7
