Gravely 200 Series User Manual

9
ASSEMBLE CATCHER
1. Attach inlet assembly (item 2) onto cover assembly
(item 1) with (4) .31-18 x 1.00 hex bolt (item 20) and
.31-18 nyloc nut (item 14).
2. Attach cover assembly (item 1) onto upper mount
(item 6) with (8) .38-16 x 1.00 hex bolt (item 16) and
(8) .38-16 nyloc nut (item 17).
ATTACH CATCHER TO LOWER MOUNT
FIGURE 6
1. Slide catcher assembly into lower mount. Rotate up
and secure with .38-16 nyloc nut (item 17) or,
optional tool-less hardware, 3/8" wing knob
(item 12) and .375 x .115 lock washer (item 25).
NOTE: For ease of assembly, use latch attached to
Upper Mount (Item 6) to temporarily hold the mount in
place while securing mounting hardware.
2. Install bag assembles (item 5) on cover assembly
(item 1).
Item Description Item Description
1 Cover Assembly 3 Hose
2 Inlet Assembly 14 .31-18 Nyloc Nut
20 .31-18 x 1.00 Hex
Bolt

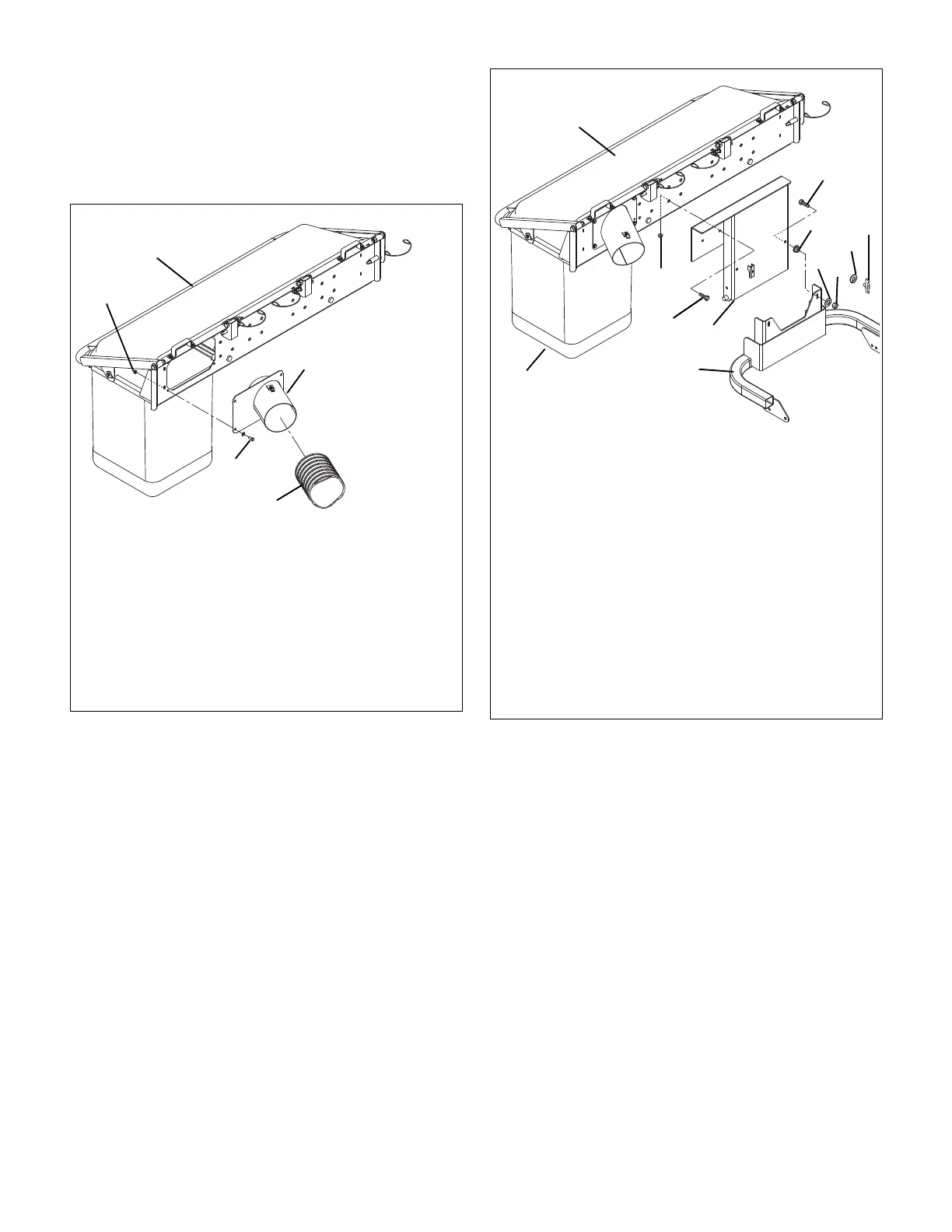

Figure 5
1
20
3
14
2
ODd0420
Item Description Item Description
5 Bag Assembly 12 3/8" Wing Knob
(Optional Tool-less
Hardware)
6 Upper Mount
7 Lower Mount 18 .38-16 x 1.75
Round Head Bolt
22 .406 x 1.50 x .245
Flat Washer
25 .375 x .115 Lock
Washer (Optional
Tool-less Hardware)
17 .38-16 Nyloc Nut 31 3/8" Spinlock
Flange Nut
Figure 6
1
5
17
6
7
22
31
16
18
17
25
12
