6.4 POWER TAKE OFF CONTROL
1. Thread jam nut onto PTO shaft (supplied). Thread
ball joint (supplied) onto PTO shaft until overall
length of shaft and ball joint is 17.00 inches,
Figure 16.
2. Install rod/ball joint assembly onto tractor,
Figure 15.
3. Start unit and test operation of PTO. Test to ensure
that all interlocks function as described in the
owner’s manual.
NOTE:
Slight adjustment of the PTO rod length may be
necessary to achieve proper operation.
6.5 RANGE SHIFT CONTROL (TWO SPEED
AXLE)

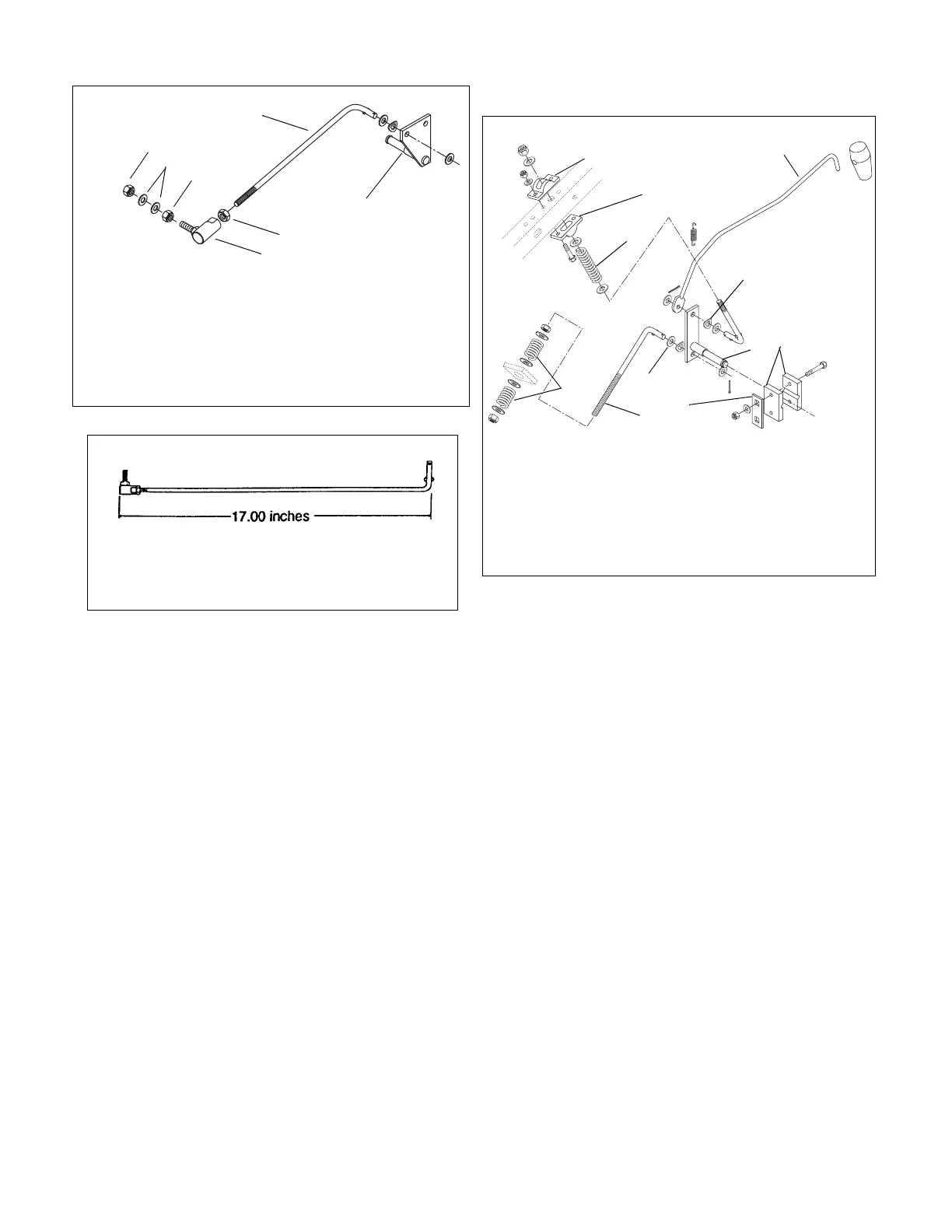

Figure 15
1. Tie Rod
2. Ball Joint
3. Jam Nut
4. Flat Washer
5. Lock Nut
6. PTO Bellcrank
Weldment
PH0051
3
4
5
1
6
3
2
Figure 16
Figure 17
1. Shifter Cam
2. Shifter Rod
3. Compression Spring
4. Spring Washer
5. Shifter Crank
6. Shift Lever Block
7. Mower Height Adjuster
Bracket Shim
8. Shifter Link
9. Compression Spring
PH0240
1
1
2
3
4
4
5
6
7
8
9
