Gravely 985103 - Continuity Diagrams

9 -38
9.10 CONTINUITY DIAGRAM
OFF
M
G
S2
B
S1
A
RUN
M
G
S2
B
S1
A
START
M
G
S2
B
S1
A
Key Switch
(03602300)
DISENGAGED
(button in)
Handlebar Switch
(08828300)
1
2
HAND
ON HANDLE
1
2
HAND
OFF HANDLE
Relay
(03042800)
87
87A
86 85
30
NOT ENERGIZED
87
87A
86 85
30
ENERGIZED
PTO Switch
(08571800)
ENAGED
(button out)
1
2
1
2
FWD/REV Switch
(08571900)
1
2
1
2
NEUTRAL
(button out)
FORWARD OR REVERSE
(button in)
Solenoid
(03492300)
NOT ENERGIZED ENERGIZED

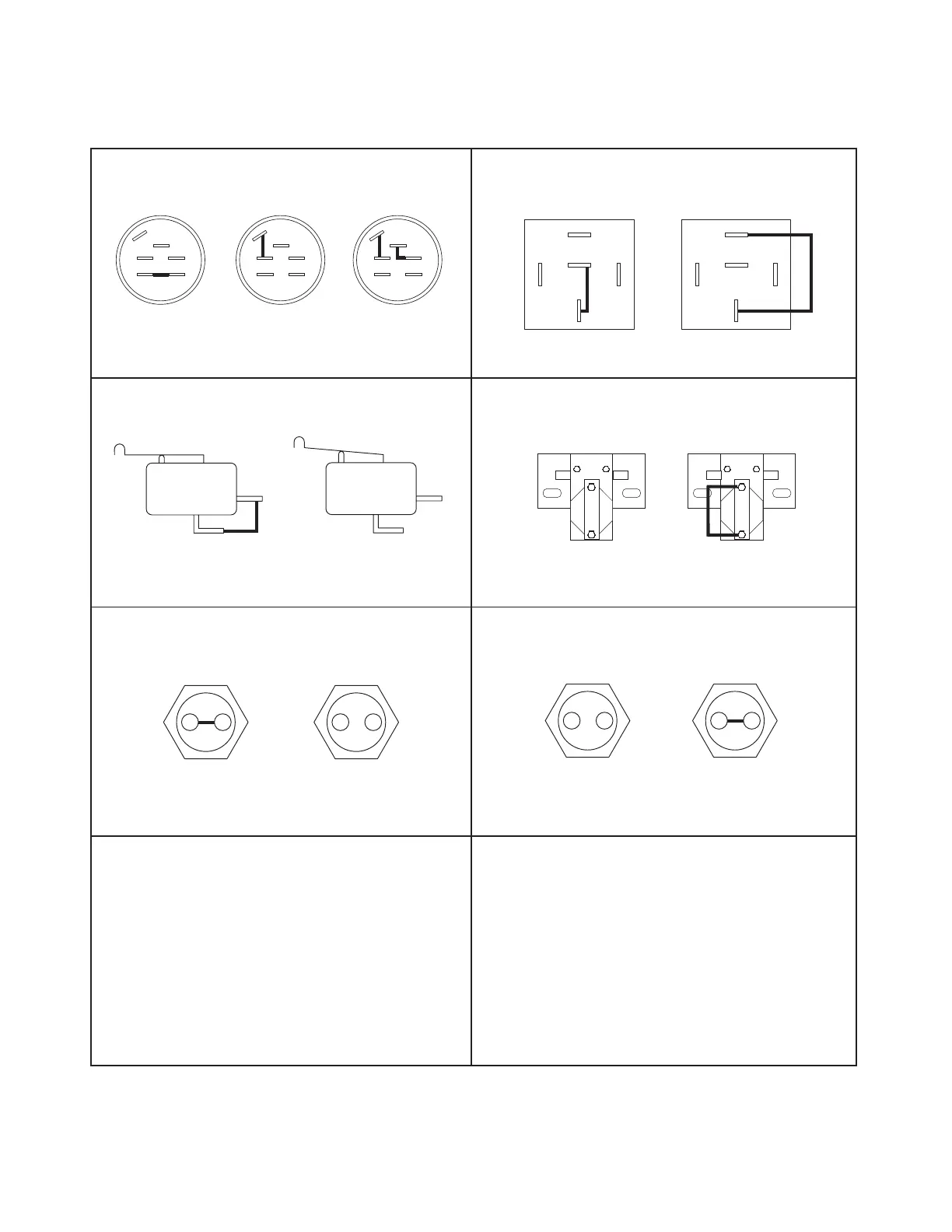

The diagrams below show the various states of connection for electrical components.
The solid lines on switches show continuity.
NOTE: All switches are viewed from the rear.
PH0421
