6. Install new bushings (D). Ensure that
bushings are fully seated in weldment.
7. Install caster yoke/wheel assembly (E),
washer (C), lock washer (B) and hex bolt
(A).
8. Apply grease to lubrication fitting (F).
Checking Rear Wheel Lug Nuts
Tighten rear wheel lug nuts in an alternating
pattern to 55 lbf-ft (75 N•m).

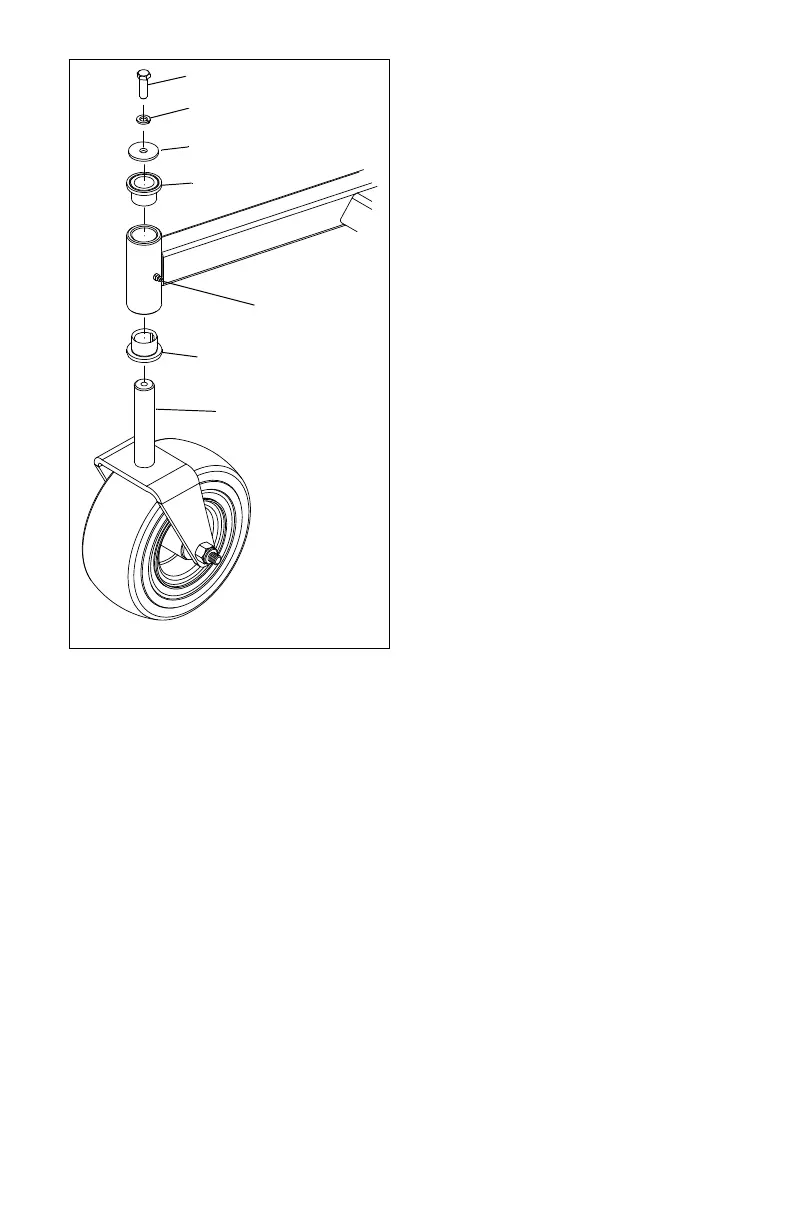

Figure 43
A
B
C
D
E
D
F
