Gravely ZT User Manual

GB - 11

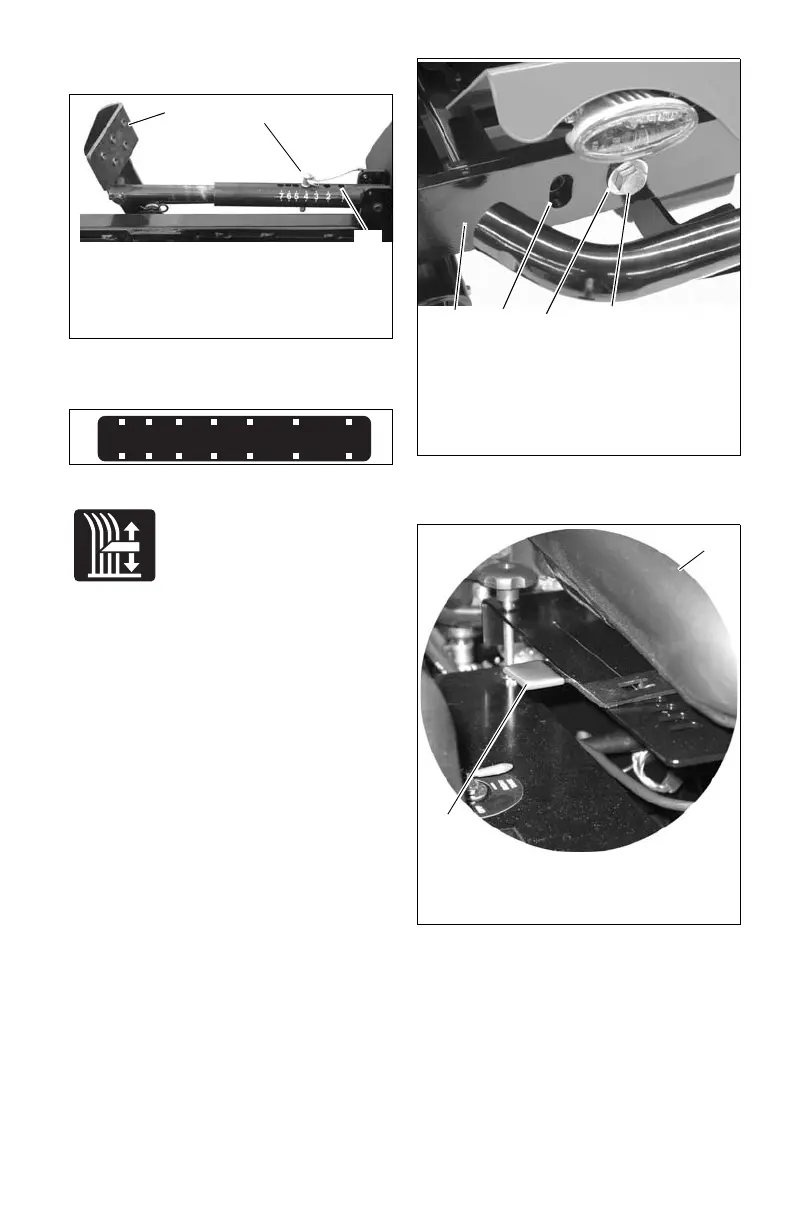

Mower Lift Pedal (Figure 5)
Raises and lowers mower deck.
NOTE: The adjustment pin is used to set the
height of the mower deck. See
SPECIFICATIONS on page 27 for cutting
height dimensions.
Press mower lift pedal and install adjustment
pin in the desired adjustment hole.
NOTE: Adjusting the seat
further forward will help
increase the leverage in lifting
the mower deck (see Adjusting
Seat on page 11).
Axle Locks (915044, 046, 048, 050)
(Figure 6)
NOTE: The unit comes shipped with the front
axle in the lockout position.
If a pivoting front axle is needed: Remove
axle lock hardware from lockout position and
install axle lock hardware in pivoting position
on both sides of front axle.
NOTE: To lock front axle, install axle lock
hardware in the lockout position on both sides
of the axle.
Adjusting Seat
Lift adjustment lever and slide seat forward or
backward to the desired position.
OE0060
2
3
1. Adjustment Pin 2. Mower Lift
Pedal
3. Adjustment Hole
Figure 5
1
765 4 3 2 1
05304900
OE0090
08088400A
OE0240
43
2
1
1. Front Axle
2. Pivoting
Position
3. Lockout
Position
4. Axle Lock
Hardware
Figure 6
OE0150
2
1. Seat 2. Adjustment
Lever
Figure 7
1

Gravely ZT Specifications

General

Engine Brand	Kawasaki
Transmission Type	Hydrostatic
Deck Material	Steel
Deck Type	Fabricated
Turning Radius	Zero-turn
Cutting Width	52 in
