IS CHIPS COLLECTOR • 14
Description

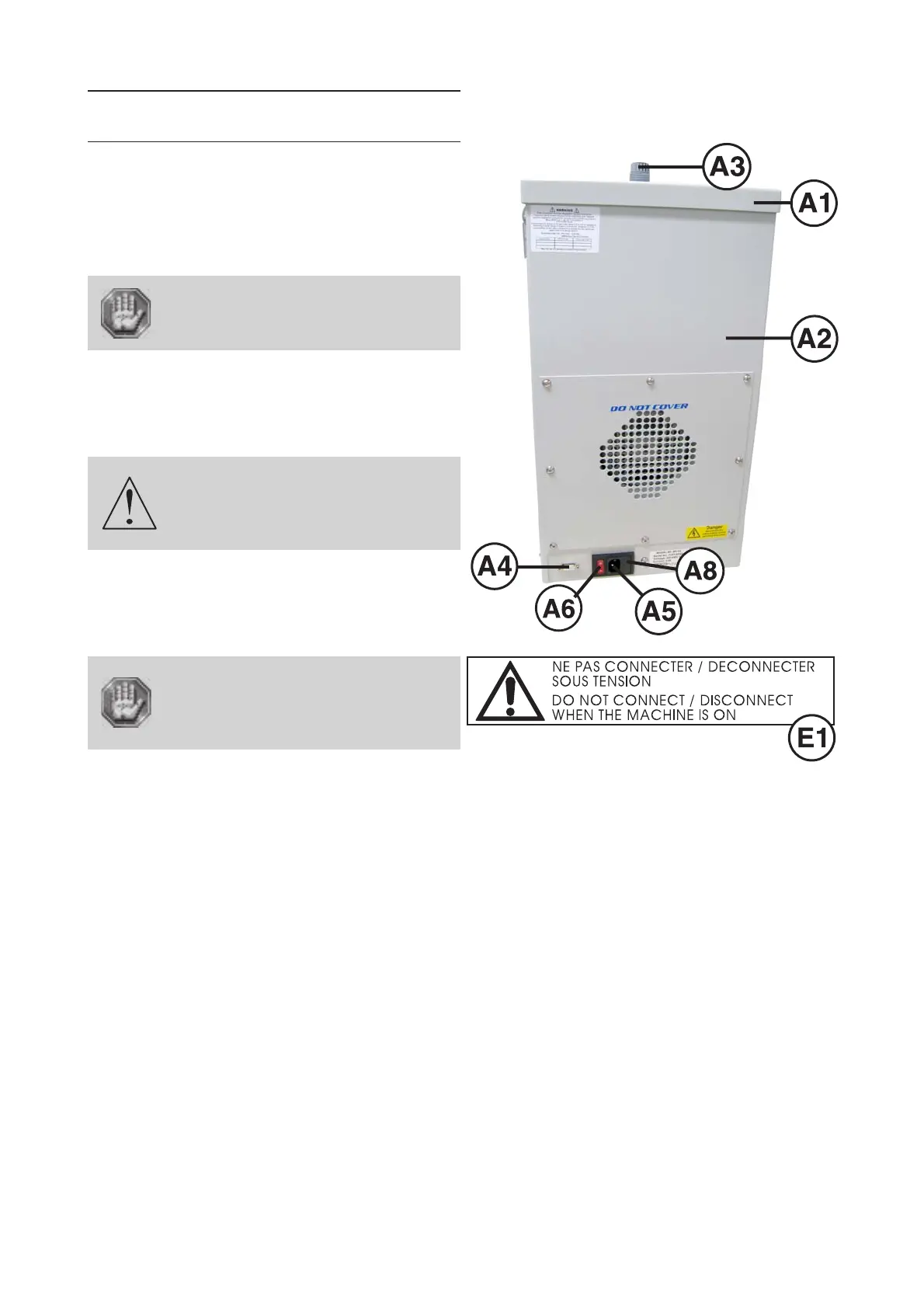

Chips collector assembly
A1 - Cover.
A2 - Main body.
A3 - Entry of aspired chips.
Each connection responds to one of
the following security levels :
- Dangerous voltage.
- Very low safety level
A4 - "Inputs/Outputs" Sub-D female 9-pin connector -
Very low safety level.
A5 - External power supply connection -
Dangerous voltage.
The machine must always be switched
off before connecting or
disconnecting a cable as indicated
on label (E1) displayed on the back
of the machine.
A6 - General shutdown button used as an immediate
stop.
A8 - Drawer for fuses 5 A (T*) - gefährliches
Spannungsniveau.
(T*) = These fuses are temporized,
with a high breaking capacity and
comply with the IEC 127-2 norm.
