GRAVOGRAPH IS - Installation - Suction Tube Mounting; Mounting the Suction Tube

IS CHIPS COLLECTOR • 17
Installation

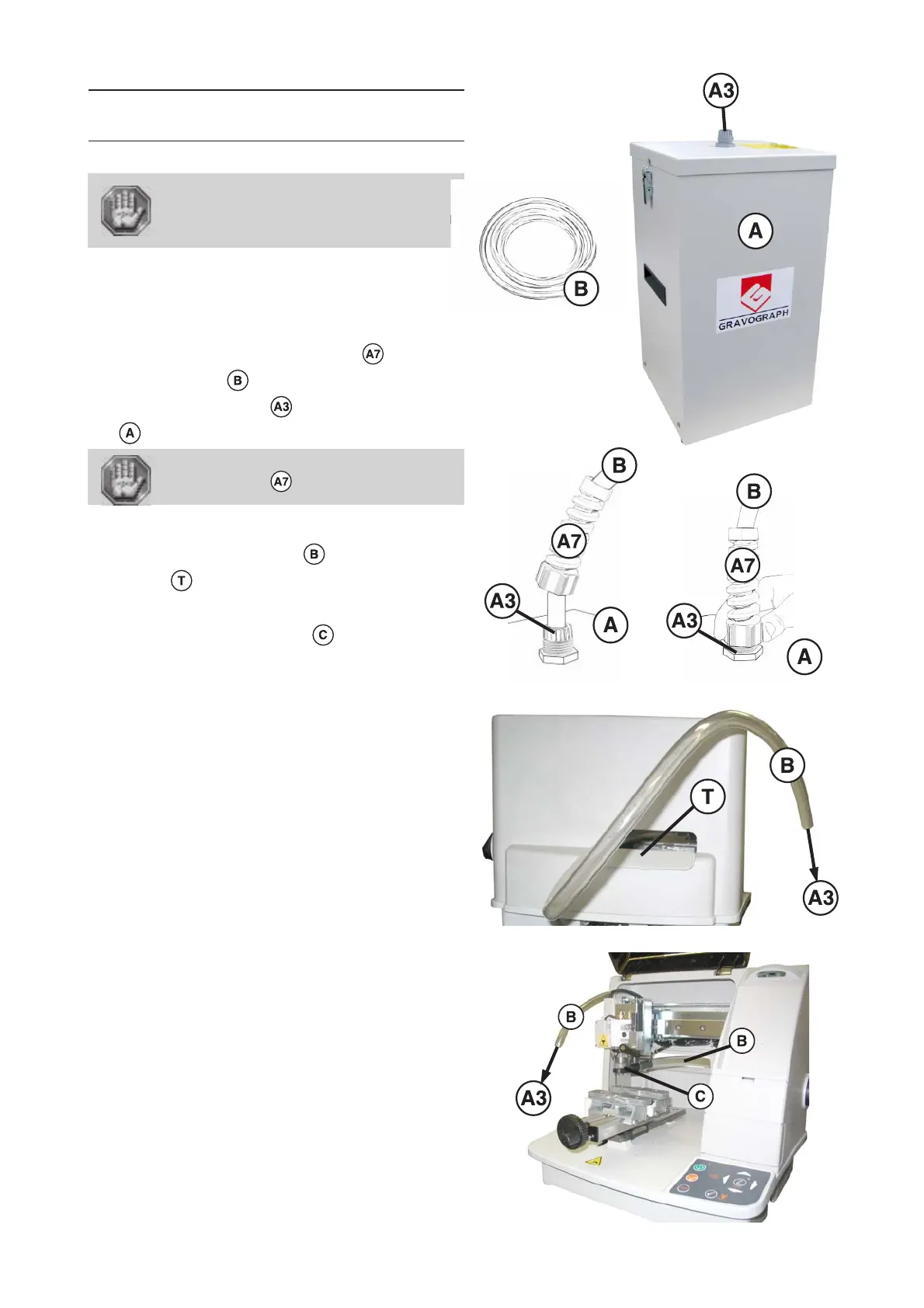

Mounting the suction tube
Switch off the machine before
proceeding with any operation:
unplug the power supply cable from
the mains.
1. Remove the depth regulating nose which is
mounted on the spindle of the machine
(example : GravoTech M20).
2. Slide the flexible connector onto the
suction tube and screw the connector
with hose on entry of the chips collector
.
Do not over tighten the flexible
connector to avoid creating an
obstruction.
3. Pass the suction tube through the trap
door to the back of the machine
(example : GravoTech M20).
4. Install a vacuum nose on the suction
tube and on the spinde of the machine
(example : GravoTech M20).
GravoTech M20
