GRAVOGRAPH IS - Connecting the Chips Collector; Connection Procedure

IS CHIPS COLLECTOR • 20

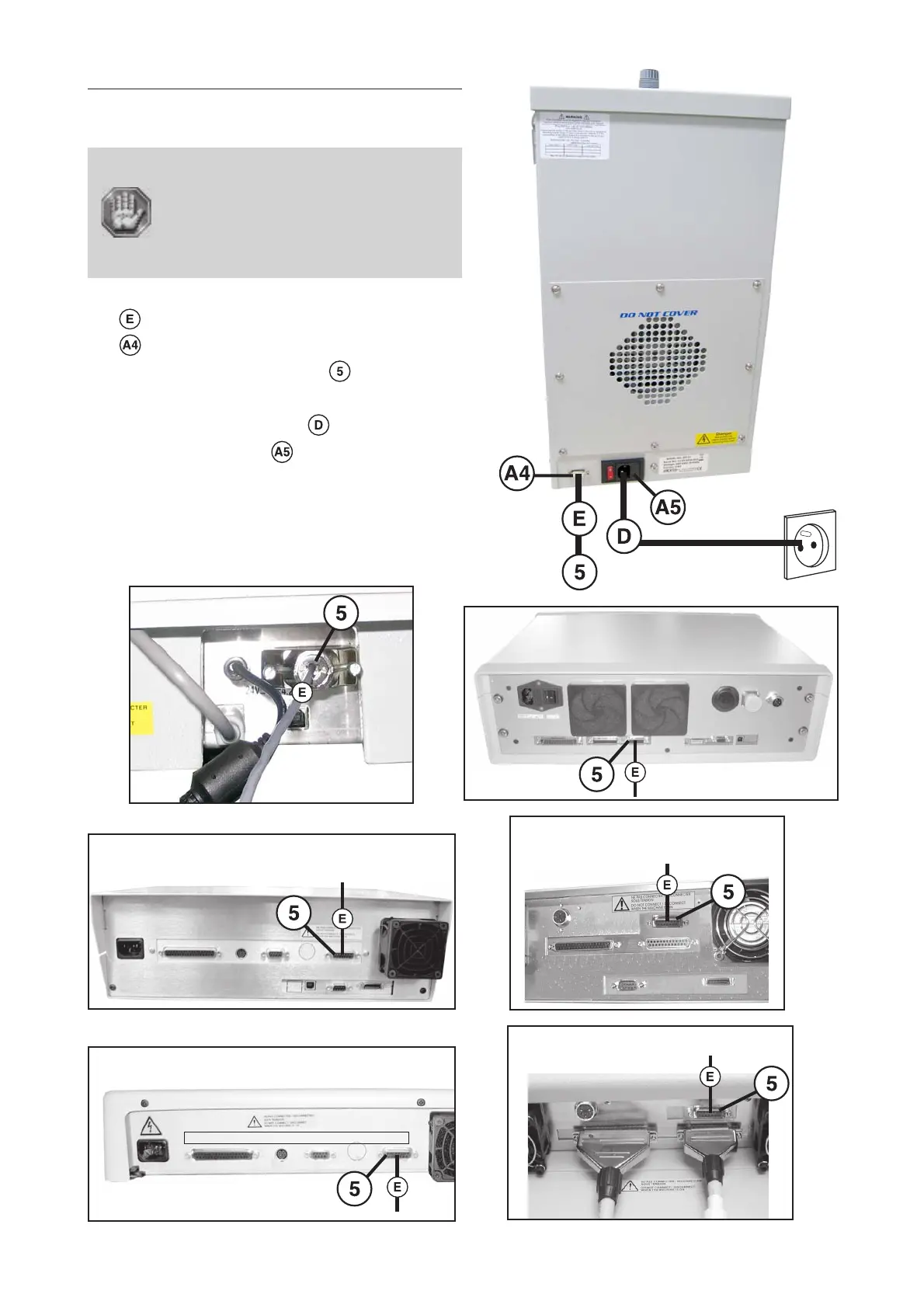

Connecting the chips
collector
Switch off the machine before
proceeding with any operation:
unplug the power supply cable from
the mains.
Always switch off the machine before
connecting or disconnecting the chips
collector.
7. Plug the "Input/Output" connection cable
into the Sub-D female 9-pin connector
of the chips collector and into the Sub-D
female 15-pin connector found at the
rear of the machine.
8. Plug the mains cable into the power
supply connection of the chips collector
and then into the mains socket.
9. Switch on the machine and the chip
collector.
Liaison boitier électronique/machine
Electronics-machine connection
Verbindung Elektronikeinheit/Maschine
Tourne Cylindre
Cylinder attachment
Abrollvorrichtung
Broche externe
External Spindle
Externe Spindel
E/S Standard
Standard I/O
E/A Standard
Nouvelle Machine IS400 (MEPB)
Ancienne Machine IS400
Ancien boîtier électronique IS
IS6000 / IS7000/ IS8000
Nouveau boîtier électronique IS
IS6000 / IS7000/ IS8000 (MEPB)
Boîtier électronique IS XP
IS6000 XP / IS7000 XP/ IS8000 XP
GravoTech M20/M40
