D Series Modular Air-cooled Scroll Chillers
Service Manual

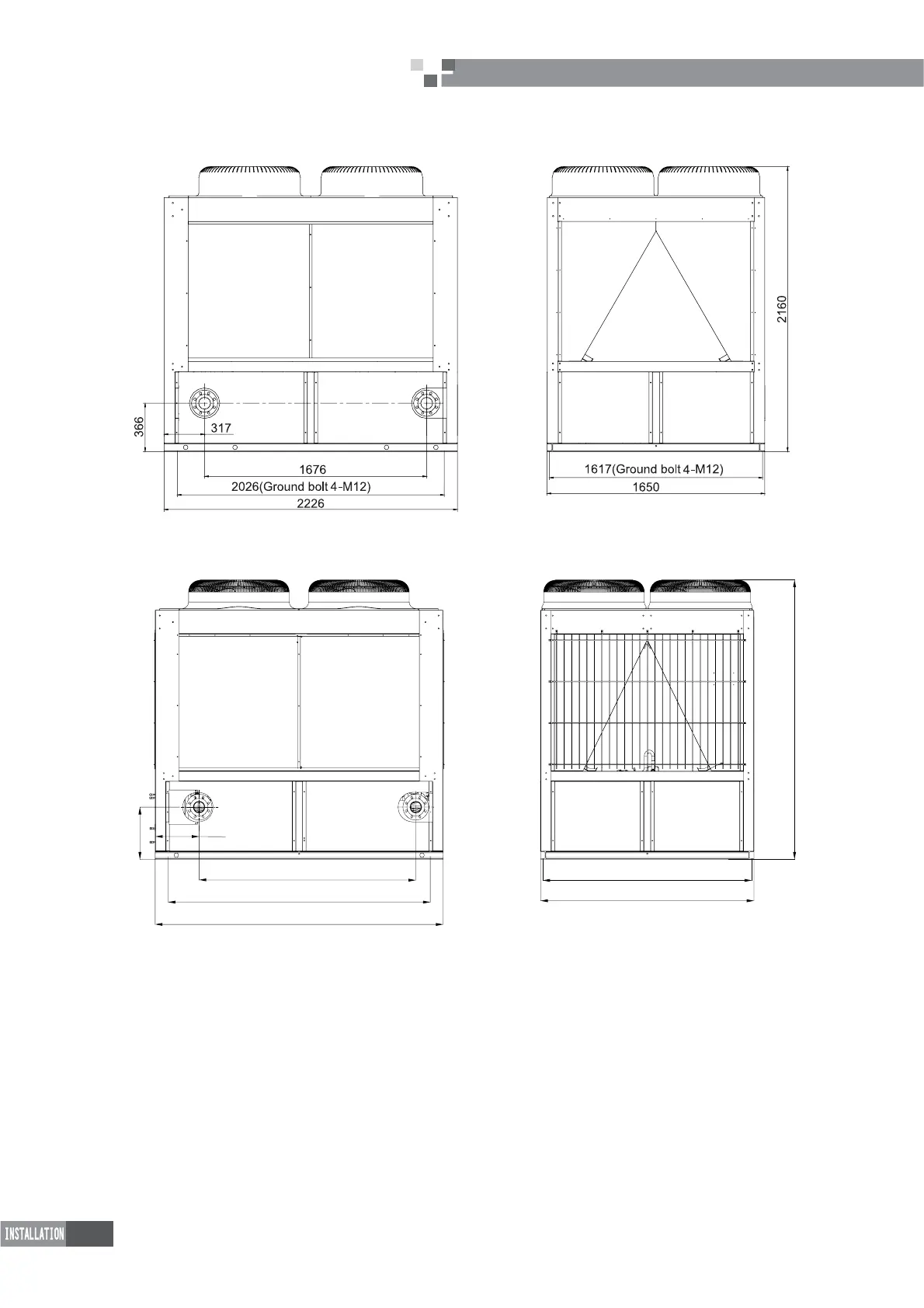

(2). Graph for the shape and size for LSQWRF130M/NaD-M Unit:mm
(3). Graph for the shape and size for LSQWRF160M/NaD-M Unit:mm
403
2160
1676
2226
2026(Ground bolt 4-M12)
1650
1617(Ground bolt 4-M12)
339
