3 REMOVALS AND REINSTALLATION
3.1 MAIN PARTS

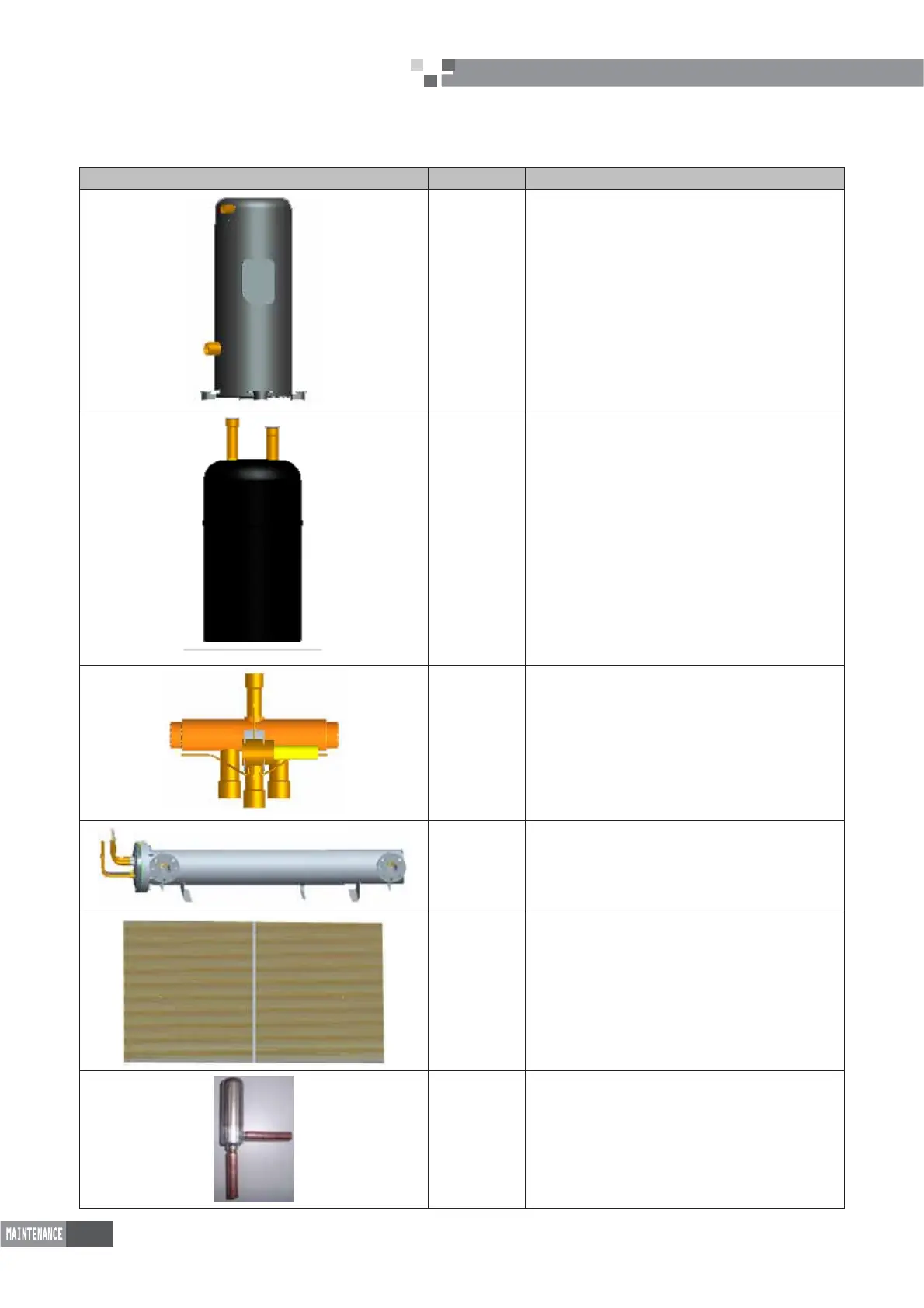

Appearance Name Function
Compressor
It drives the refrigerant cycle and turns the low-
temperature, low pressure refrigerant vapor into high-
temperature, high-pressure vapor.
Accumulator
It is used to separate oil and refrigerant liquid from the
refrigerant vapor.
4-way Valve
,WLVXVHGWRVKLIWWKHGLUHFWLRQRIWKHUHIULJHUDQWÀRZWR
realize either cooling or heating.
Shell-and-
tube heat
H[FKDQJHU
In the cooling mode, it is used to absorb heat and
evaporate the liquid refrigerant In the heating mode, it
is used to release heat and condense the refrigerant
vapor.
Fintube heat
H[FKDQJHU
In the cooling mode, it is used to absorb heat and
evaporate the liquid refrigerant In the heating mode, it
is used to release heat and condense the refrigerant
vapor.
Electronic
H[SDQVLRQ
valve
,WLVXVHGWRUHJXODWHWKHÀRZUDWHRIWKHUHIULJHUDQWWR
make it perfectly match with the load in need.
