3.2 Removal and Installation of Main Parts
Compressor
7KHVHVWHSVOLVWHGEHORZDUHDSSOLFDEOHWRWKHGXDOV\VWHPXQLW)RUWKHIRXUV\VWHPXQLWSOHDVH¿UVWUHPRYHWKHHOHFWULFER[HVRIWZR
compressors in between and then follow the steps below. )
Note: Be sure there is no refrigerant in the pipeline system and the power supply is cut off.

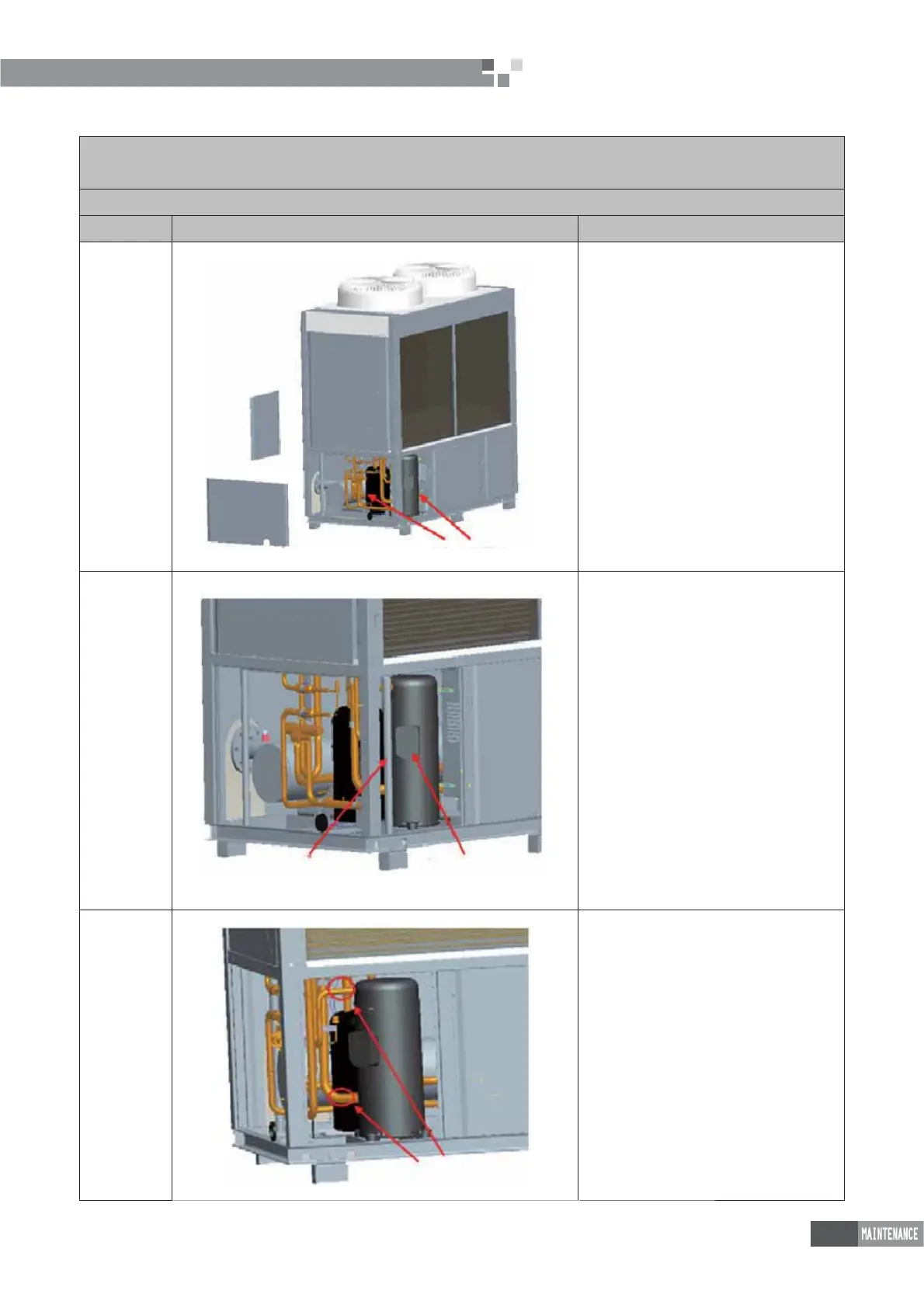

Steps Graphic Reprentation Instructions
1. Remove
the panel
Remove the panel here
ƹ
Loosen screws around the panel with a
screwdriver.
ƹ
Remove the panel.
ƹ
Collect the screws in case of loss.
ƹ
Place the panel in the right place to avoid
inadvertent damage.
2. Remove
the power
cord and
drain pipe
Remove the drain pipe
Open the cover and
remove the power cord
ƹ
Loosen screws for the power cord with a
screwdriver.
ƹ
Draw out the power cord.
ƹ
Remove the crankcase heater, if applicable.
ƹ
Remove the drain pipe.
Note: when removing the power cord, mark
the color of the power cord and the code of
the wring terminal to avoid misconnection.
3. Separate
the
compressor
from the
pipeline
system
Soldering spot
ƹ
Unbraze the brazing spots of the pipeline
as quick as possible.
ƹ
Minimize damage on the compressor for
further analysis.
