19
D Series Modular Air-cooled Scroll Chillers
Service Manual

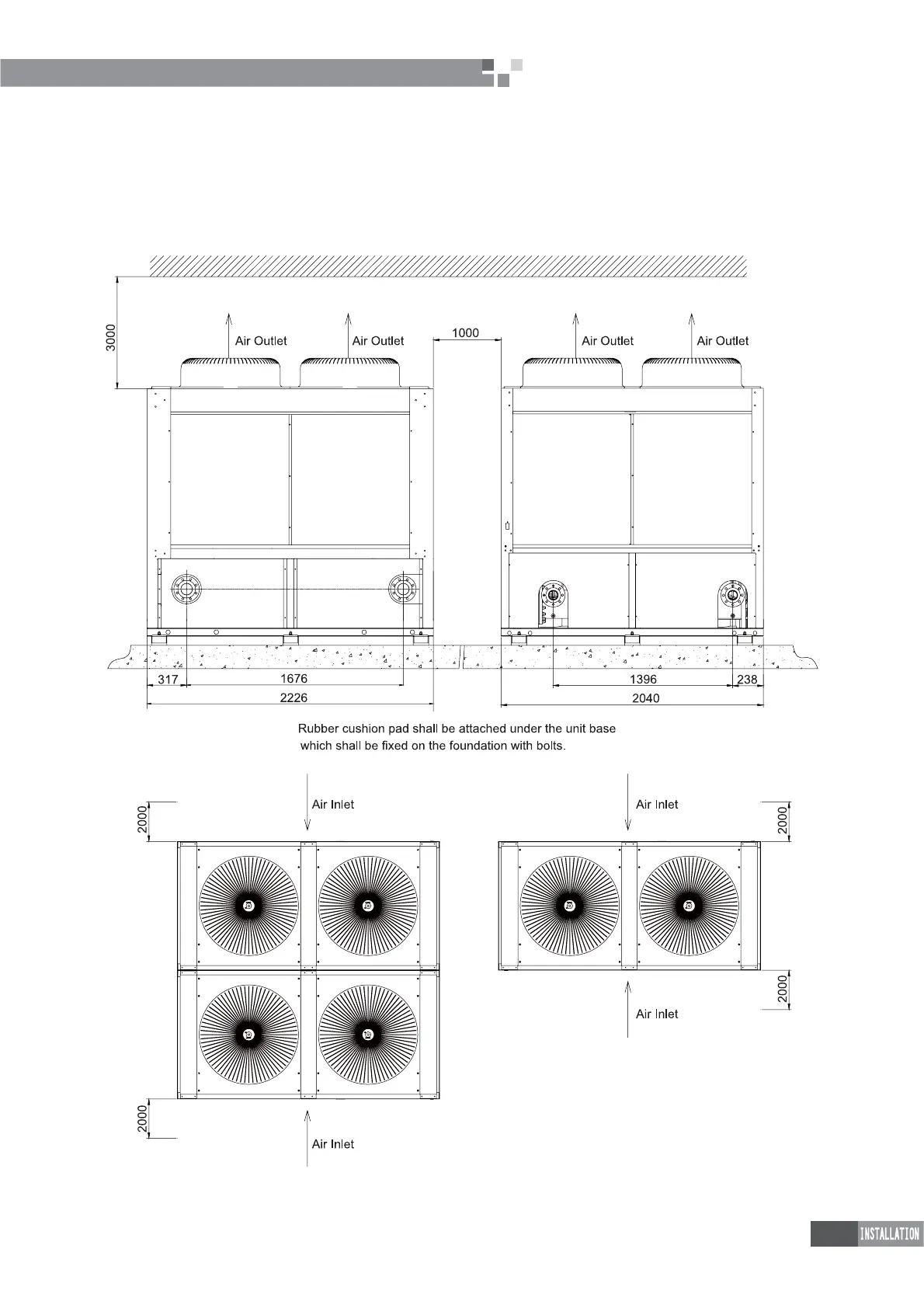

5 MACHINE FOOTPRINT
A minimum spacing of 1m should be left between any two modules for unobstructed air intake and
equipment service. Additionally, a minimum of 2m should be kept between the chiller and any barrier. If
allowable, it would be better to set up a suncover 3m ahead of the chiller.
Unit:mm
