D Series Modular Air-cooled Scroll Chillers
7

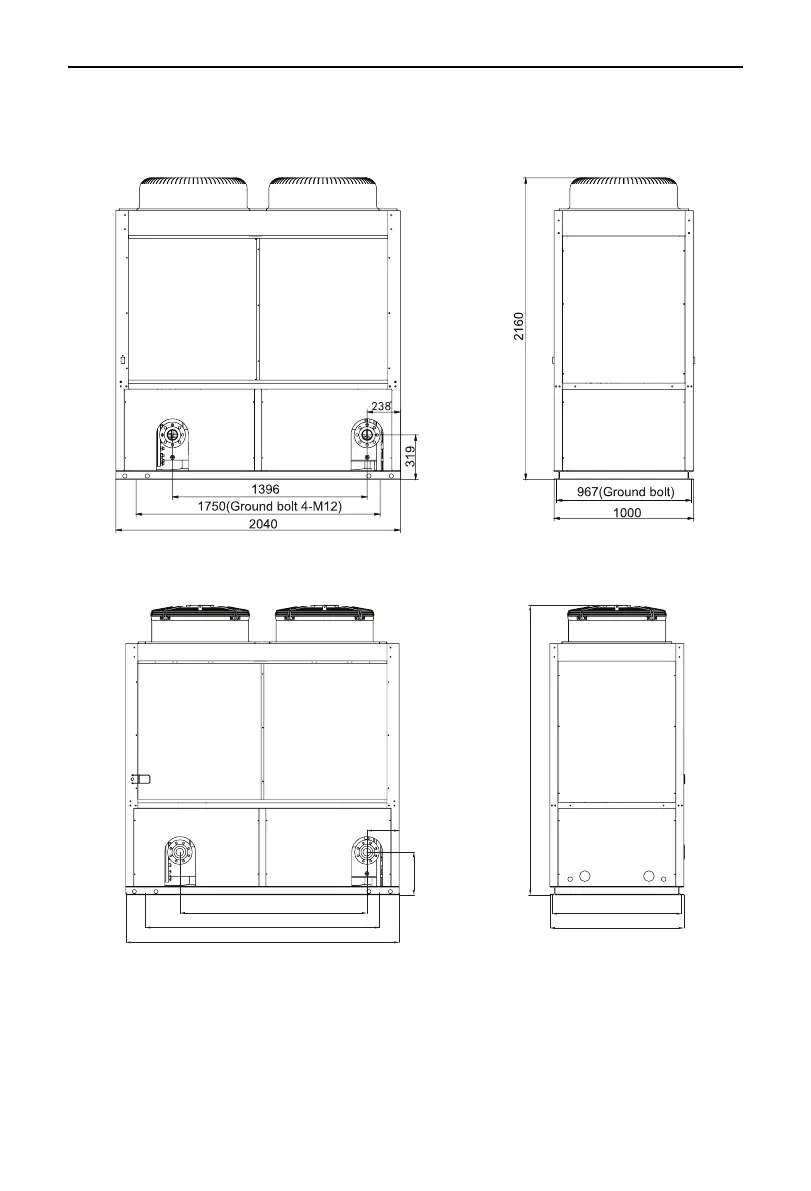

3 Outline Dimension
(1) Graph for the shape and dimensions for LSQWRF65M/D-M, LSQWRF80M/D-M
(Unit:mm)
(2) Graph for the shape and dimensions for LSQWRF65M/NaD-M, LSQWRF80M/NaD-M
(Unit:mm)
1000
2160
2040
1396
238
319
1750(Ground bolt 4-M12)
967(Ground bolt)
