D Series Modular Air-cooled Scroll Chillers
8

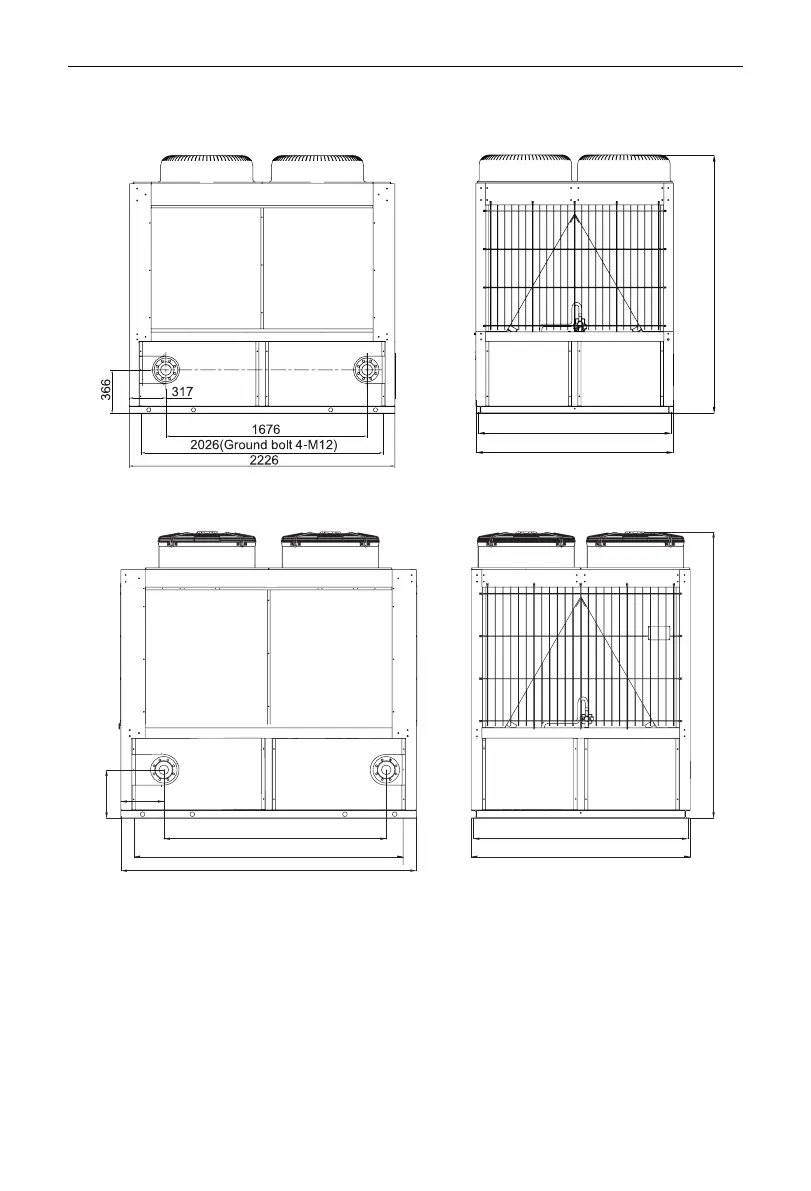

(3) Graph for the shape and dimensions for LSQWRF130M/D-M
(Unit:mm)
2160
1650
1617(Ground bolt 4-M12)
(4) Graph for the shape and dimensions for LSQWRF130M/NaD-M
(Unit:mm)
2226
1676
2026(Ground bolt 4-M12)
1617(Ground bolt 4-M12)
1650
2160
323
366
