GREE Duct type split Air conditioner Inverter Series

120

5 Exploded Views And Part List

5.1 Indoor Unit

Model: FGR20Pd/DNa-X(I)

、

FGR25Pd/DNa-X(I)

、

FGR30Pd/DNa-X(I)

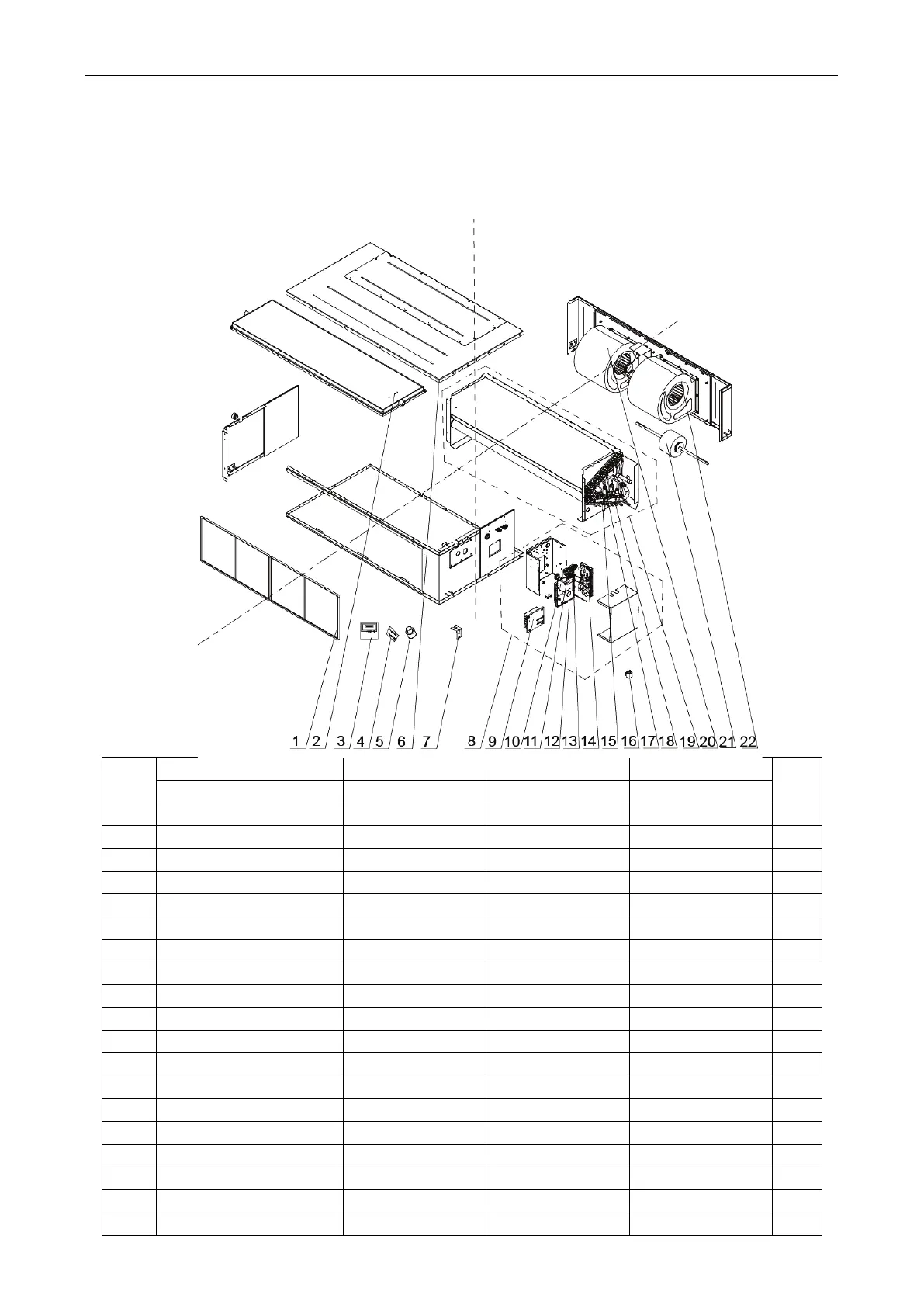

Exploded View:

No.

Model FGR20Pd/DNa-X(I) FGR25Pd/DNa-X(I) FGR30Pd/DNa-X(I)

Qty Product Code CF010N0730 CF010N0740 CF010N0750

Part Name Part Code Part Code Part Code

1 Filter Sub-Assy 11725211 11724102 11724102 2

2 Water Tray Assy 01284620 01284306 01284306 1

3 Display Board 300001000097 300001000097 300001000097 1

4 Sensor Sub-assy 390002000058 390002000058 390002000058 1

5 Choke Plug of Water Pipe 76712454 76712454 76712454 2

6 Top Cover Board Sub-assy 01265359 01264100090 017011000037 1

7 Hook 02112466 02112466 02112466 4

Electric Box Assy

100002002010

9 Radiator 49018000068 49018000068 49018000068 1

10 Reactor 43130189 43130189 43130189 1

Teminal Board

4201800002601

12 Main Board 300002000383 300002000383 300002000383 1

13 Teminal Board 42010259 42010259 42010259 1

14 Main Board 300002000357 300002000357 300002000357 1

15 Electronic Expansion Valve 43044100190 43044100190 43044100190 1

16 Eletric Expand Valve Fitting 4304413205 4304413205 4304413205 1

17 Strainer 0741410000601 0741410000601 0741410000601 2

18 Evaporator Assy 011001000372 011001000371 011001000271 1
