MAINTENANCE
156

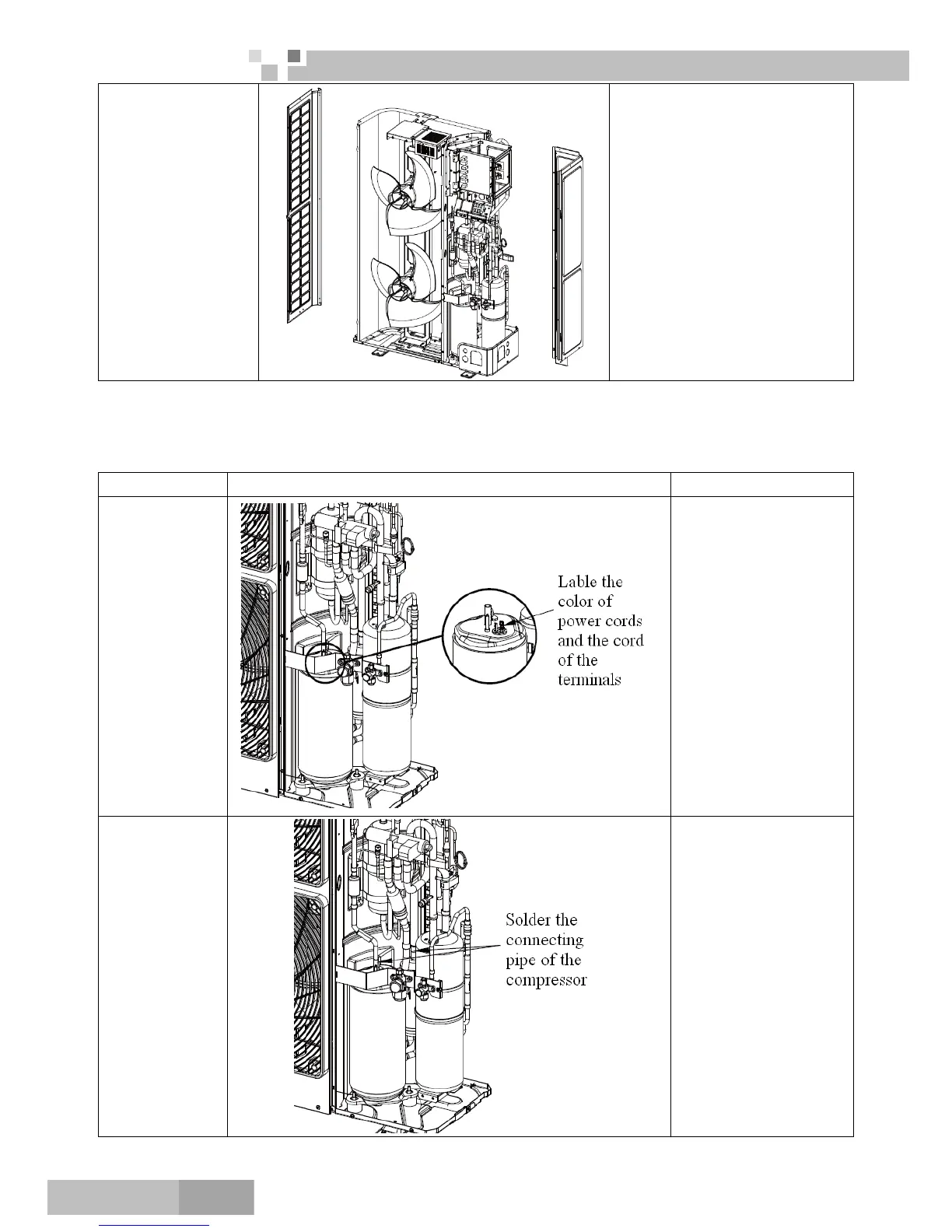

4.Disconnect the left
side plate and rear side
plate
a) Unscrew the fixed screws of
left side plate and rear side
plate;
b) Remove left side plate and rear
side plate.
6.1.2 Assembly and Disassembly of the Compressor
Remarks: Prior to the assembly of the compressor, make sure there is no refrigerant in the pipeline and the power
supply is cut off.
Steps Illustrations Operation Instructions
1.Remove the
power code of the
compressor
a) Unscrew the fixed
screws of power
code;
b) Remove the power
code.
Note: when removing the
power cord, please label
the power cord and the
terminals to avoid
misconnecting next time.
2.Remove the
connecting pipe
of the compressor
a) Solder the joint of
connecting pipe of
the compressor.
b) Pull out the
connecting pipe
Note: never let the flame
contact any other
component.
