6.2.2 Ducted type
◆ Removal and Assembly of Fan Motor
Remark: Prior to the assembly of the motor, make sure the power supply is cut off.

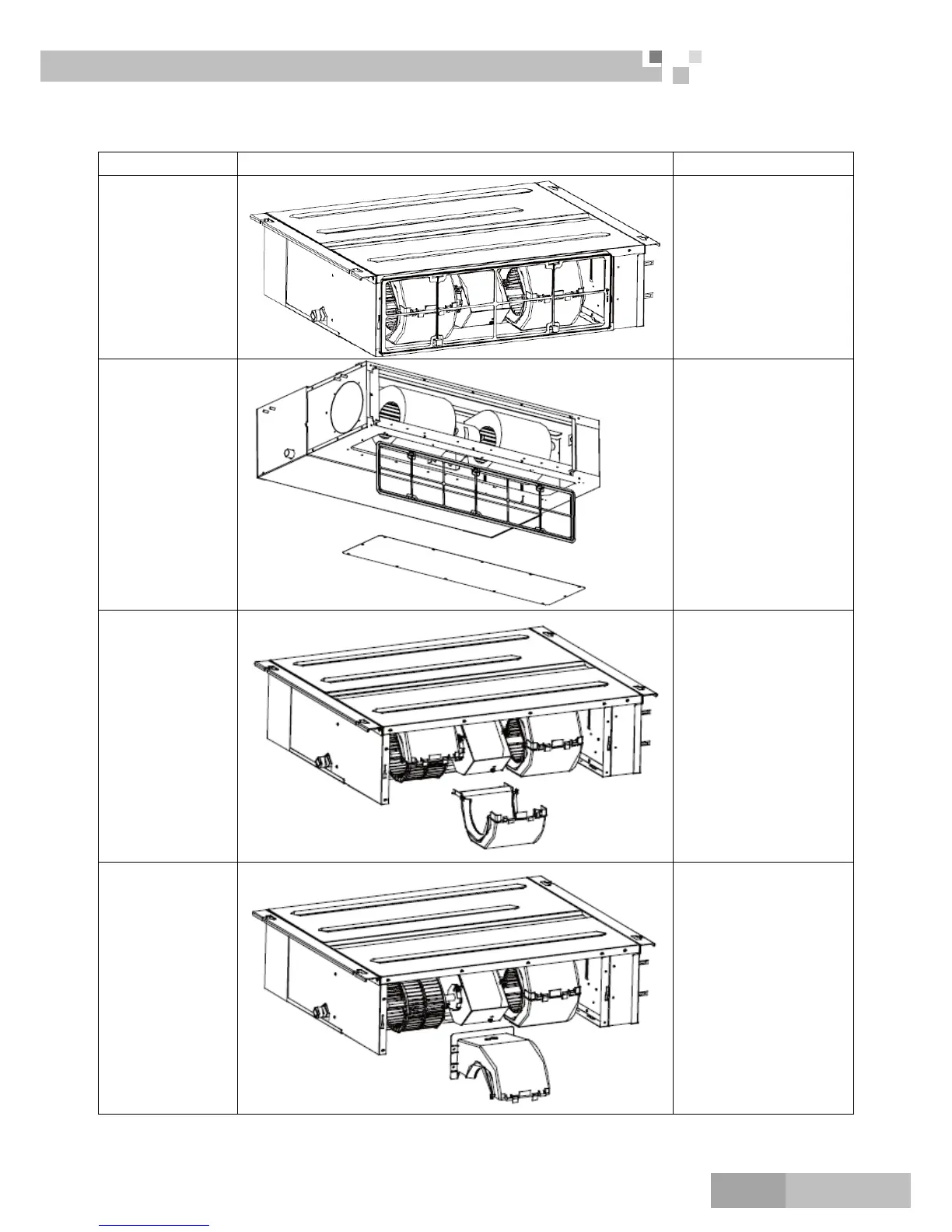

Steps Illustrations Operation Instructions
1.Pull out the
electric wire of the
motor
Open the cover plate of the
electric box and then pull
out the electric wire inside
the box.
2.Remove the
cover plate for
return air
a) Remove the filter
screen
b) Unscrew the fixed
screws of the return
air
3.Remove the rear
volute
Undo the buckle of the
rear and front volutes and
then remove the rear
volute away.
4. Remove the front
volute
Unscrew the fixed
screws of the front volute
and then remove it away
To Next Page
