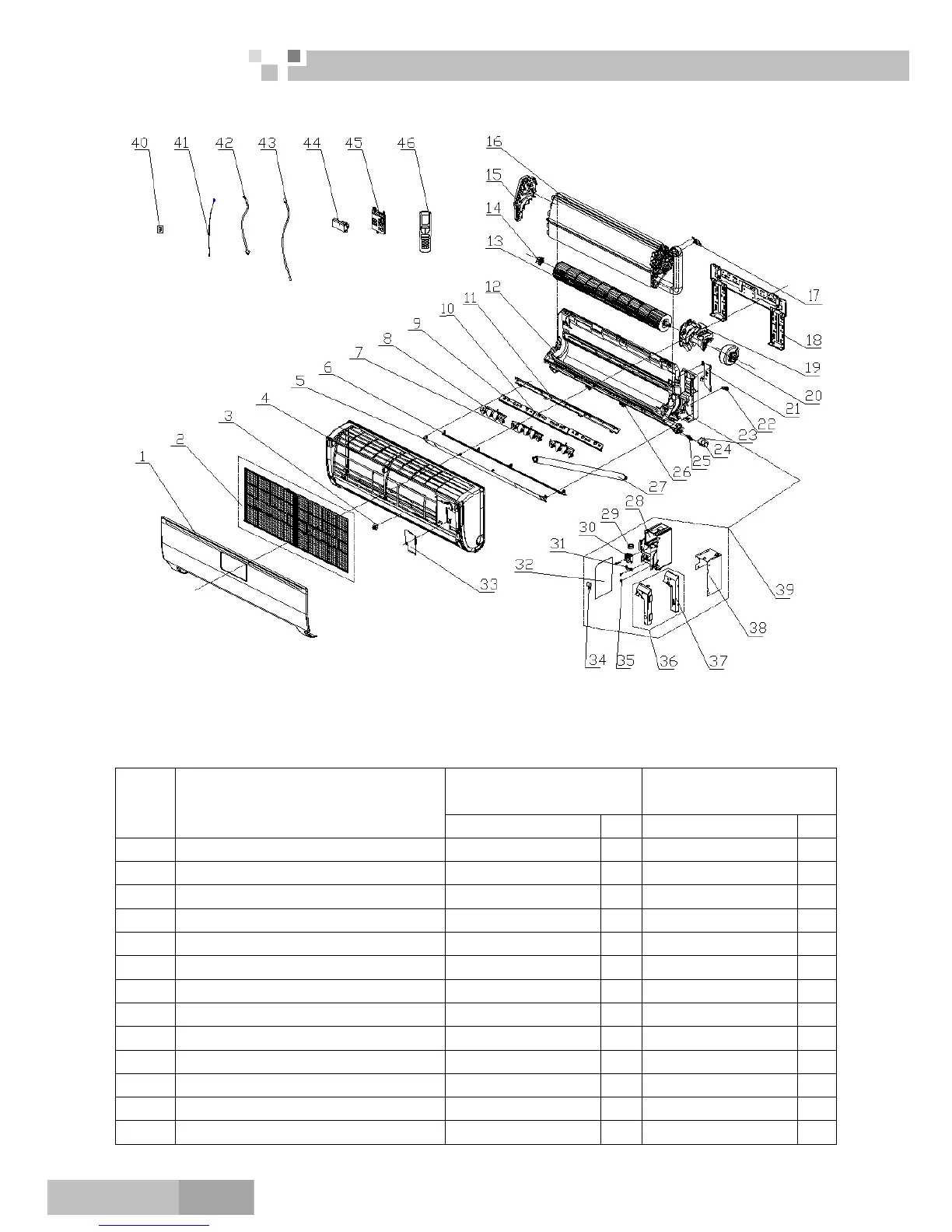

◆ U-Cool
GWH(07)UA-K3DNA1B/I; GWH(09)UA-K3DNA1B/I; GWH(12)UB-K3DNA1B/I;
Part list:
GWH(07)UA-K3DNA1B/I for CB204N02600; GWH(09)UA-K3DNA1B/I for CB204N02700;
GWH(12)UB-K3DNA1B/I for CB204N02800
GWH(07)UA-K3DNA1B/I
GWH(09)UA-K3DNA1B/I
GWH(12)UB-K3DNA1B/I
No. Description
Code Qty Code Qty
1 Front Panel Sub-Assy 2001269506 1 2001285901 1
2 Filter Sub-Assy 11122122 2 11122134 2
3 Screw Cover 24252024 1 24252024 1
4 Front Case Sub-assy 20022424 1 2001272701 1
5 Guide Louver 1 10512218 1 10512214 1
6 Guide Louver 2 10512219 1 10512215 1
7 Air Louver 2 10512439 1 10512185 1
8 Air Louver 1 10512438 2 10512184 2
9 Louver Clamp 1 26112492 1 26112263 1
10 Louver Clamp 2 26112491 1 26112264 1
11 Helicoid Tongue 26112490 1 26112262 1
12 Rear Case Assy 22202488 1 22202220 1
13 Cross Flow Fan 10352047 1 10352041 1
To Next Page
