Service Manual
MAINTENANCE
206
GTH(24)BA-K3DNA1A/I

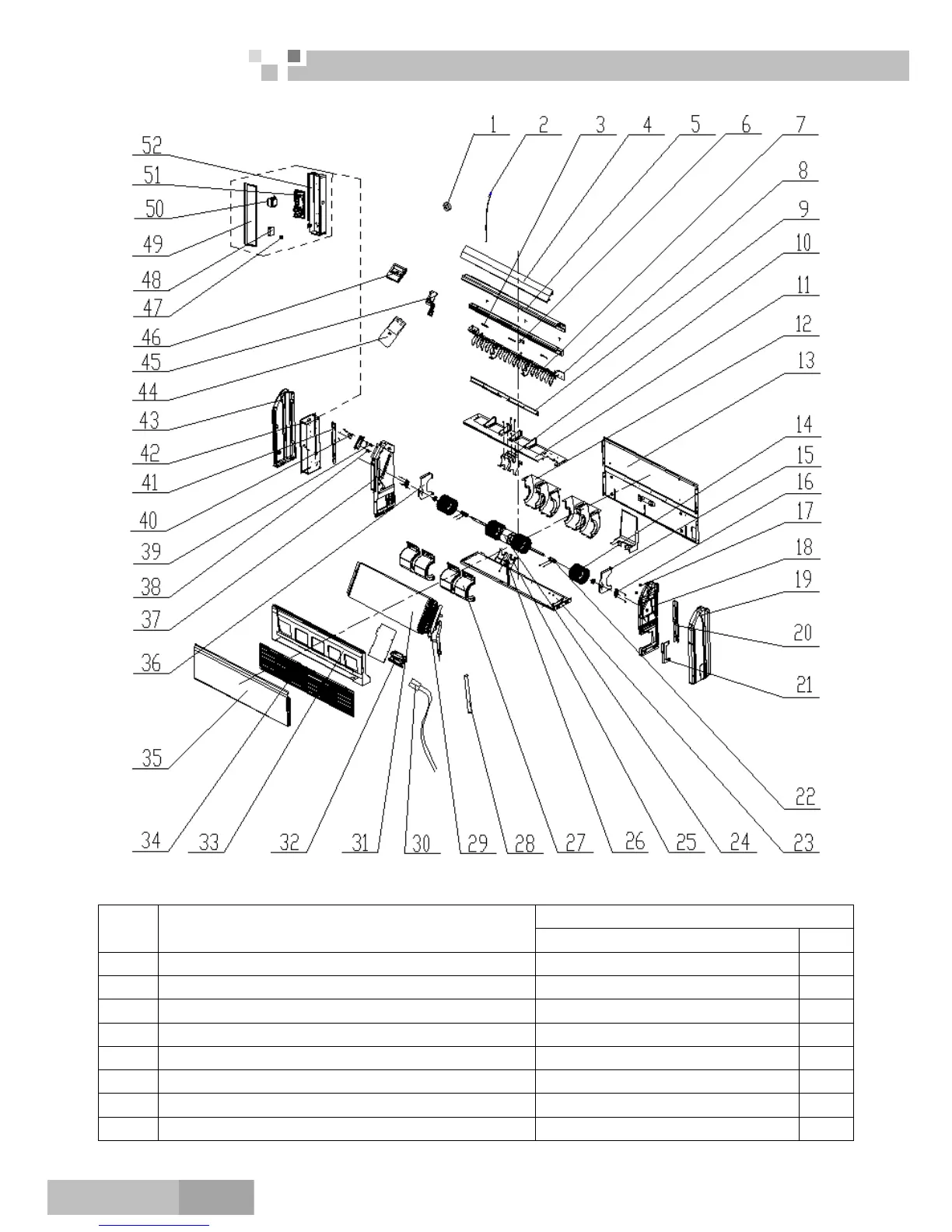

Part list:
GTH(24)BA-K3DNA1A/I f
or CN610N0040;
GTH(24)BA-K3DNA1A/I
NO. Description
Code Qty
1 Cable-Cross
Loop
76510021
4
2 Room
Sensor
39000191
1
3 Louver
Clamp
26112127
2
4 Guide
Louver
10619403
2
5
Front Connecting Plate
013494
14P
1
6 Rotating
Shaft
26909430
4
7 Air
Louver
10619404
16
8 Base
Frame
26909448
1
209
211
Table of Contents
Default Chapter
2
Table of Contents
2
Product
6
Models List
6
Outdoor Unit
6
BU Module
6
Indoor Unit
7
Nomenclature
9
Nomenclature of Outdoor Unit
9
Nomenclature of BU Module
9
Nomenclature of Indoor Unit
9
Function
10
Product Data
11
Product Data of Outdoor Unit
11
Product Data of Indoor Unit
12
Product Data of BU Module
24
Working Temperature Range
25
Piping Diagram
26
Control
29
Operation Flowchart
29
Cooling/Dry Operation
30
Heating Operation
31
Main Logic
32
Control Function of Outdoor Unit
32
Protection Function
33
Other Function
34
Control Function of Indoor Unit
35
Remote Controller
38
Wired Remote Controller
38
Wireless Remote Controller YT1F (MOTO)
43
Function of Press Buttons
43
Optional Operation
46
Wireless Remote Controller YAA1FB1
47
General Operation
50
Wireless Remote Controller YAG1FB
51
Special Operation
55
Wireless Remote Controller YB1F2 (XFAN)
57
Smart Zone Controller (CE50-24/E)
62
General Introduction
62
Communication Network
63
Lcd
63
Buttons
64
Installation
67
Precautions for Installation
67
Key Points of Installation
69
Flow Chart of Installation
71
Outdoor Unit Installation
72
Precautions for R410A
72
Precaution for Installation
72
Names of Main Parts
72
Parts and Components of Unit
73
Selection of Installation Location
73
Outline Dimension of the Outdoor Unit
74
Installation and Servicing Space
74
Installation of the Outdoor Unit
75
Indoor Unit Installation
76
Installation of Wall Mounted Type
76
Installation of Duct Type
79
Installation of Cassette Type
87
Installation of Floor Ceiling Type
93
Installation of Console Type
97
Bu Module Installation
101
Precaution for Installation
101
Names of Main Parts
101
Combinations for Outdoor and Indoor Units
102
Selection of Installation Location
102
Outline Dimension and Servicing Space of FXA2A-K
103
Outline Dimension and Servicing Space of FXA2B-K
104
Outline Dimension and Servicing Space of FXA3A-K
105
Outline Dimension and Servicing Space of FXA3B-K
106
Installation Instruction
107
Refrigeration Piping Work
108
Manifold Mode of Connecting Pipe
108
Allowable Length and Drop Height of Connecting Pipe
109
Dimension of Connecting Pipe
109
Connection of Branch Pipe
110
Design Requirements for Oil Trap
110
Connection of Outdoor Unit Refrigerant Pipe
112
Installation of Piping Adapter
112
Precaution for Connection
115
Leak Test
116
Vacuum Operation
116
Refrigerant Charging
117
Electrical Wiring Work
120
Wiring Connection
120
Requirements of Power Circuit and Cable
120
Ground Requirements
121
Precautions of Electrical Wiring Work
121
Precaution of Laying Wires
121
Electrical Wiring Work for Outdoor Unit
122
Electrical Wiring Work for BU Module
122
Electrical Wiring Work for Indoor Unit
124
Installation of Drainage Pipeline
125
Material Quality Requirements for Condensate Pipe
125
Key Points for Condensate Pipe Installation
125
Installation of Protective Layer on Connection Pipe
129
Maintenance
131
Testing Board Introduction
131
Compose of Testing Board
131
Instruction of Function and Data Section
131
Process Control Setting
132
Troubleshooting
134
Check before Contacting Maintenance Serviceman
135
Problem Handling
135
Error Description
136
Flow Chart of Troubleshooting
138
Malfunction Display: High Pressure Protection
139
Malfunction Display: Low Pressure Protection
139
Malfunction Display: Discharge Temperature Protection
141
Malfunction Display: Current Protection
141
Malfunction Display: Communication Error
142
Malfunction Display: Indoor Unit Water Full Protection
143
Malfunction Display: Temperature Sensor Error
143
Malfunction Display: High/Low Pressure Sensor Error
144
Power Distribution
145
Diagram of Power Distribution
145
Wiring Diagram
146
The Resistances of Common Temperature Sensors
154
15 Kω
154
20 Kω
155
50 Kω
156
Disassembly and Assembly Procedure of Main Parts
159
Outdoor Unit
159
Indoor Unit
164
Exploded Views and Part List
177
Outdoor Unit
177
Indoor Unit
180
BU Module
214
