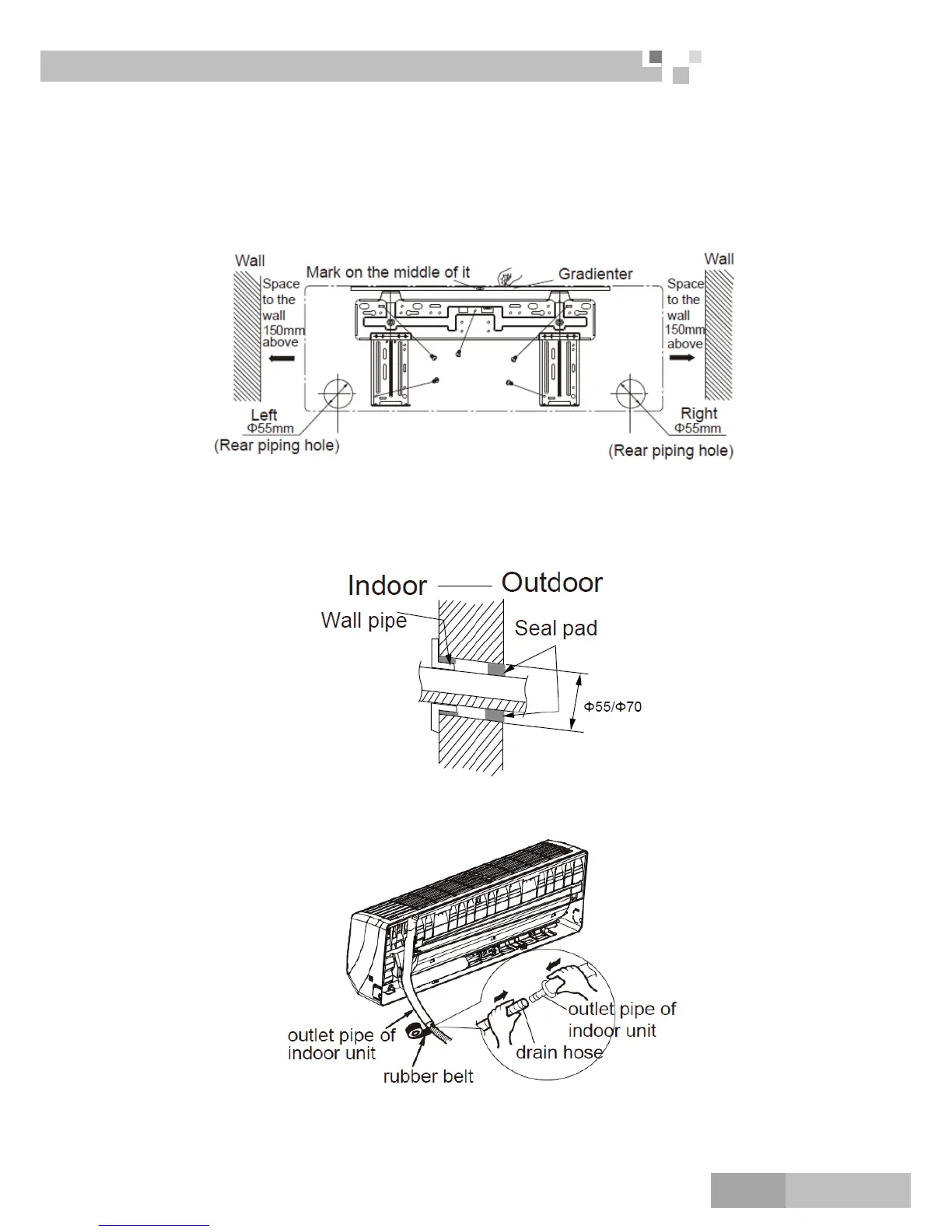

4.1.5 Installation of Mounting Plate
1) Mounting plate should be installed horizontally. As the water drainage pipe for the indoor unit is
two-way type, during installation, the indoor unit should slightly slant to water tray's outlet for smooth
drainage of condenser water.
2) Fix the mounting plate on the selected location with screws.
3) Be sure that the mounting plate has been fixed firmly enough to withstand the weight of an adult of
60kg, furthermore, the weight should be evenly shared by each screw.
4.1.6 Drill piping hole
1) Slant the piping hole (Φ55/Φ70) on the wall slightly downward to the outdoor side.
2) Insert the piping-hole sleeve into the hole to prevent the connection piping and wiring from being
damaged when passing through the hole.
4.1.7 Installation of drain hose
1) Connect the drain hose to the outlet pipe of the indoor unit. Bind the joint with rubber belt.
