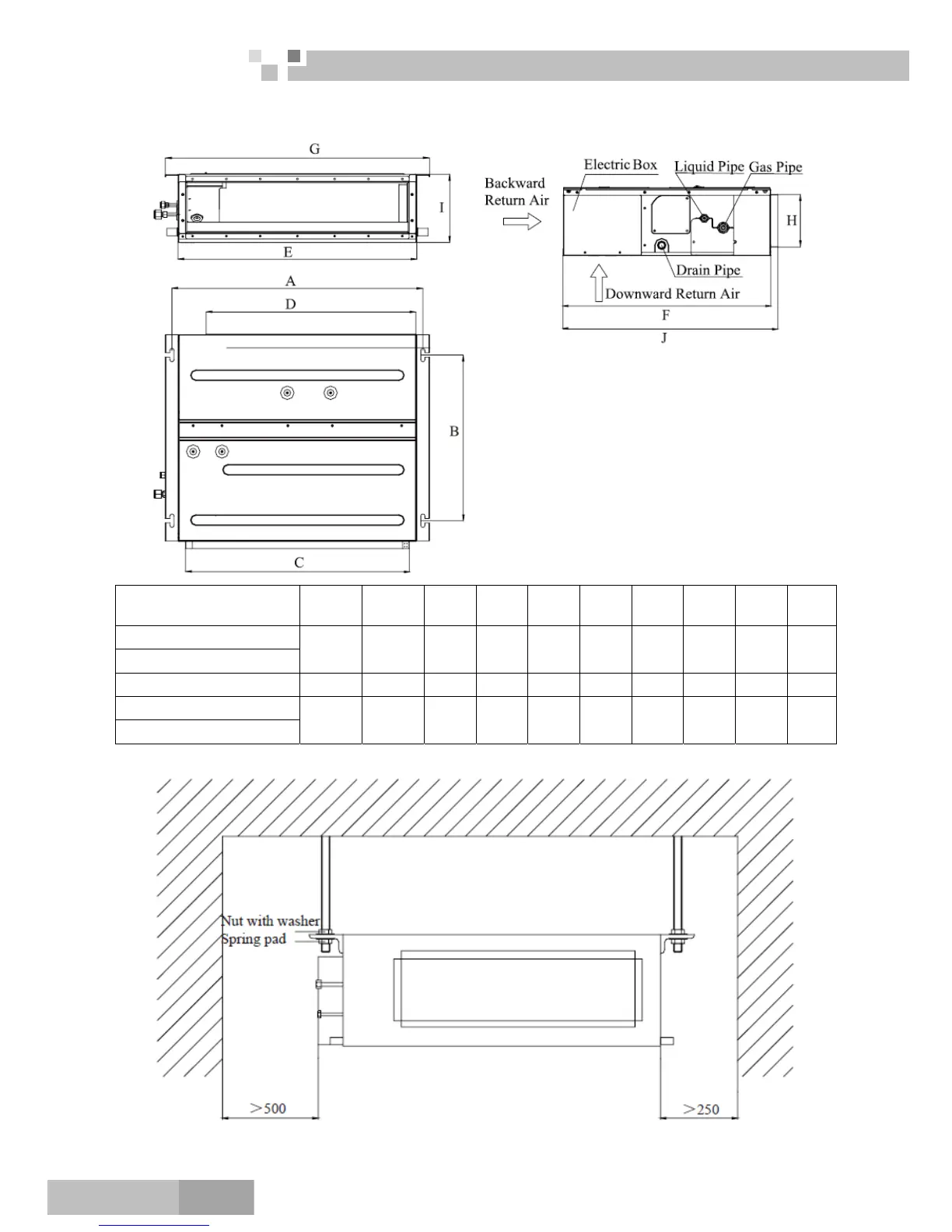

4.2.4 Outline Dimension Drawings of the Indoor Unit
Note: the unit in the followings figures is mm, unless otherwise specified.
Model A B C D E F G H I J
GFH(09)EA-K3DNA1A/I
GFH(12)EA-K3DNA1A/I
742 491 528 620 700 615 782 121 200 635
GFH(18)EA-K3DNA1A/I 942 491 728 820 900 615 982 121 200 635
GFH(21)EA-K3DNA1A/I
GFH(24)EA-K3DNA1A/I
1142 491 928 1020 1100 615 1182 121 200 635
4.2.5 Dimension Requirements on the Installation Space of the Indoor Unit
