Super Free Match
Service Manual
INSTALLATION95

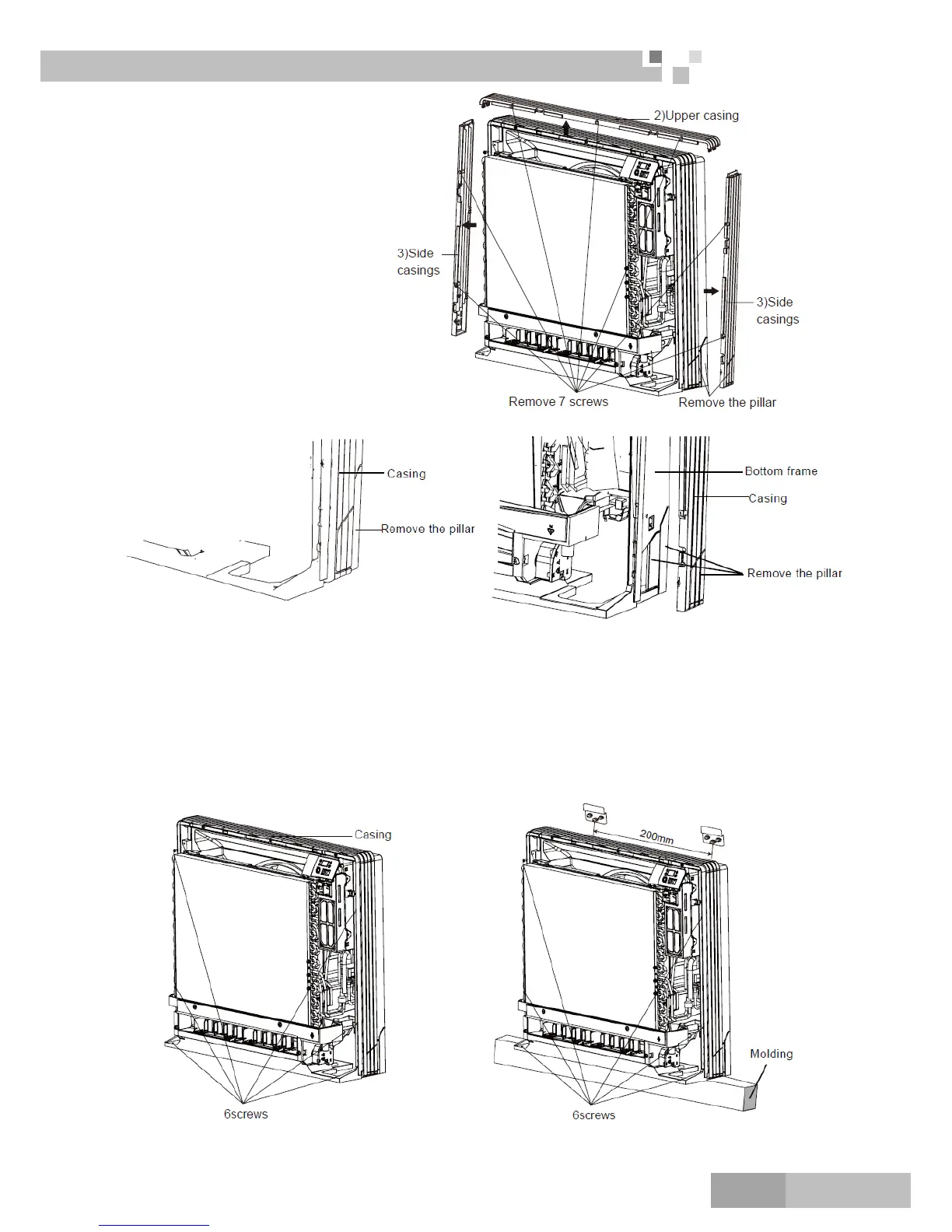

3) For Side Piping
Remove the pillars.
① Remove the 7screws.
② Remove the upper casing (2 tabs).
③ Remove the left and right casings (2
tabs on each side ).
④ Remove the slit portions on the
bottom frame and casings using nippers .
⑤ Return by following the steps in
reverse order(3>2>1).
4) Installation
Secure using 6 screws for floor installations.(Do not forget to secure to the rear wall.)
For wall installations, secure the mounting plate using 5 screws and the indoor unit using 4 screws.
The mounting plate should be installed on a wall which can support the weight of the indoor unit.
Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and
mark the boring points on the wall.
Secure the mounting plate to the wall with screws.
Floor Installation Wall Installation
To Next Page
