Gree GMV-280WL/C-X - Removal Operation for Blade

GREE DC Inverter Multi VRF System II Service Manual
107
Removal operation for panel
Remark: Before removing the panel, please make sure that the unit is disconected with the power
Process
Operation Instruction
3
)

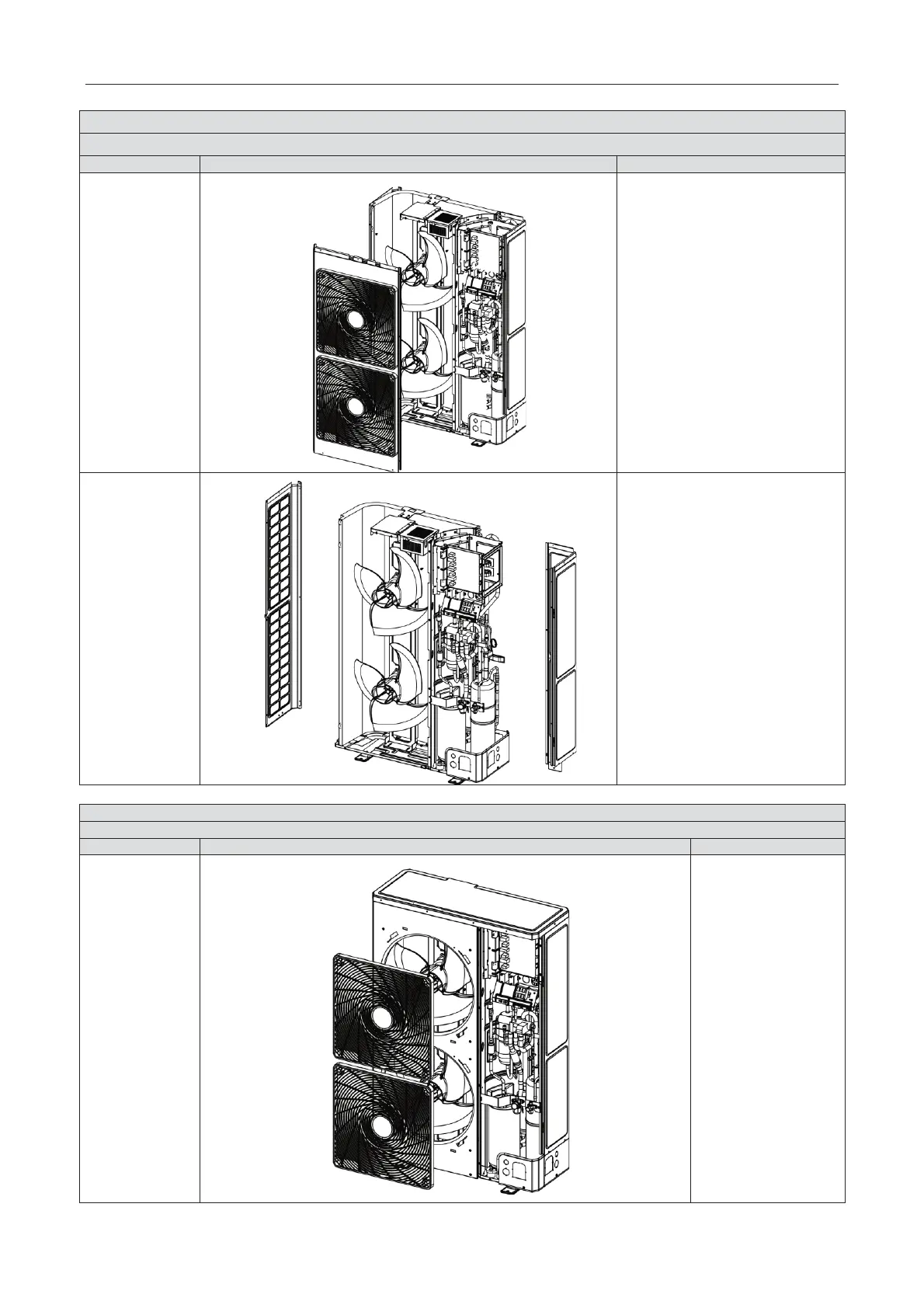

Remove front
panel and grille
● Loose the screws fixing the front
panel and grille with screwdriver
● Put the front panel and grille on
the floor flatly
4)
Remove left
side plate and
rear side plate
● Loose screws fixing left side
plate and rear side plate with
screwdriver
● remove the rear side plate
Removal operation for blade
Remark: Before removing the motor, please make sure that the unit is disconnected with the power.
Process
Operation Instruction
1
)
Remove grille
● Loose screws fixing
the panel with
screwdriver
● Then remove the
grille
