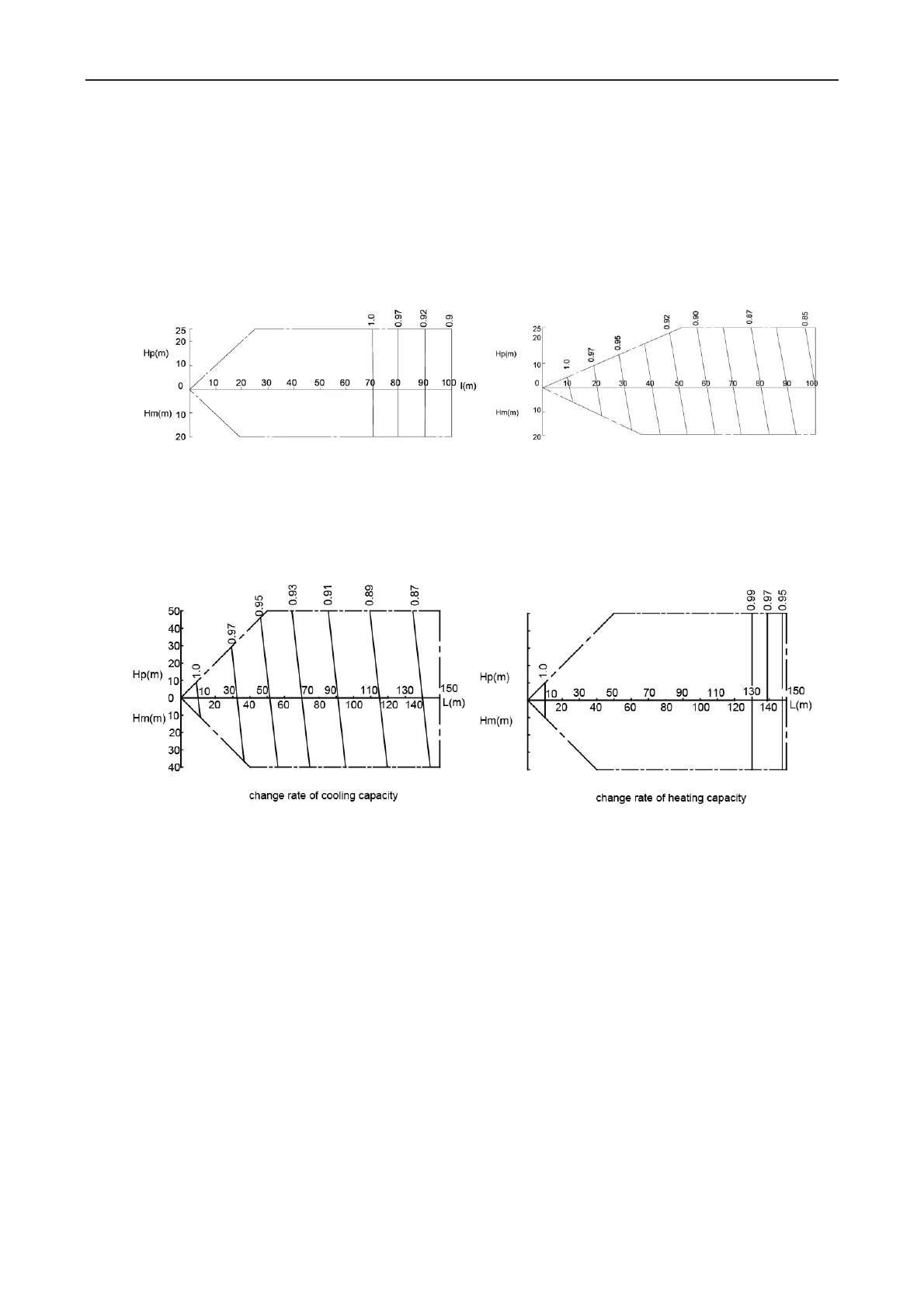

5.2 Correction factor of pipe length and height difference
z Symbol description:
Hp: Height difference in case indoor unit is below outdoor unit (m);
Hm: Height difference in case indoor unit is above outdoor unit (m);
L: Length of one-way equivalent pipe
z Below table shows the capacity variance ratio for 100% full load in standard working condition
(thermostat setting is 16ć for cooling and 30ć for heating).
GMV-80WL/A-T GMV-100WL/A-T GMV-121WL/A-T GMV-80WL/C-T GMV-100WL/C-T
GMV-121WL/C-T
GMV-141WL/C-T GMV-120WL/A-T GMV-140WL/A-T GMV-160WL/A-T GMV-120WL/A-X
GMV-140WL/A-X GMV-160WL/A-X GMV-H224WL/A-X GMV-H280WL/A-X
GMV-H335WL/A-X
GMV-120WL/C-T GMV-140WL/C-T GMV-160WL/C-T GMV-120WL/C-X GMV-140WL/C-X
GMV-160WL/C-X GMV-224WL/C-X GMV-280WL/C-X GMV-335WL/C-X
