Gree GMV6 DC Inverter VRF Units Service Manual
274
(2) Remove the electric heating belt.
Installation procedure
(1) Install the electric heating belt at the shaft of the compressor, as shown in the figure.
(2) Buckle up the electric heating belt.
(3) Connect the fan according to the original wiring.
(4) Install the soundproof cotton.
(5) Install the unit’s front panel by referring to 5.1.1 Removing and Installing the Unit Panel.

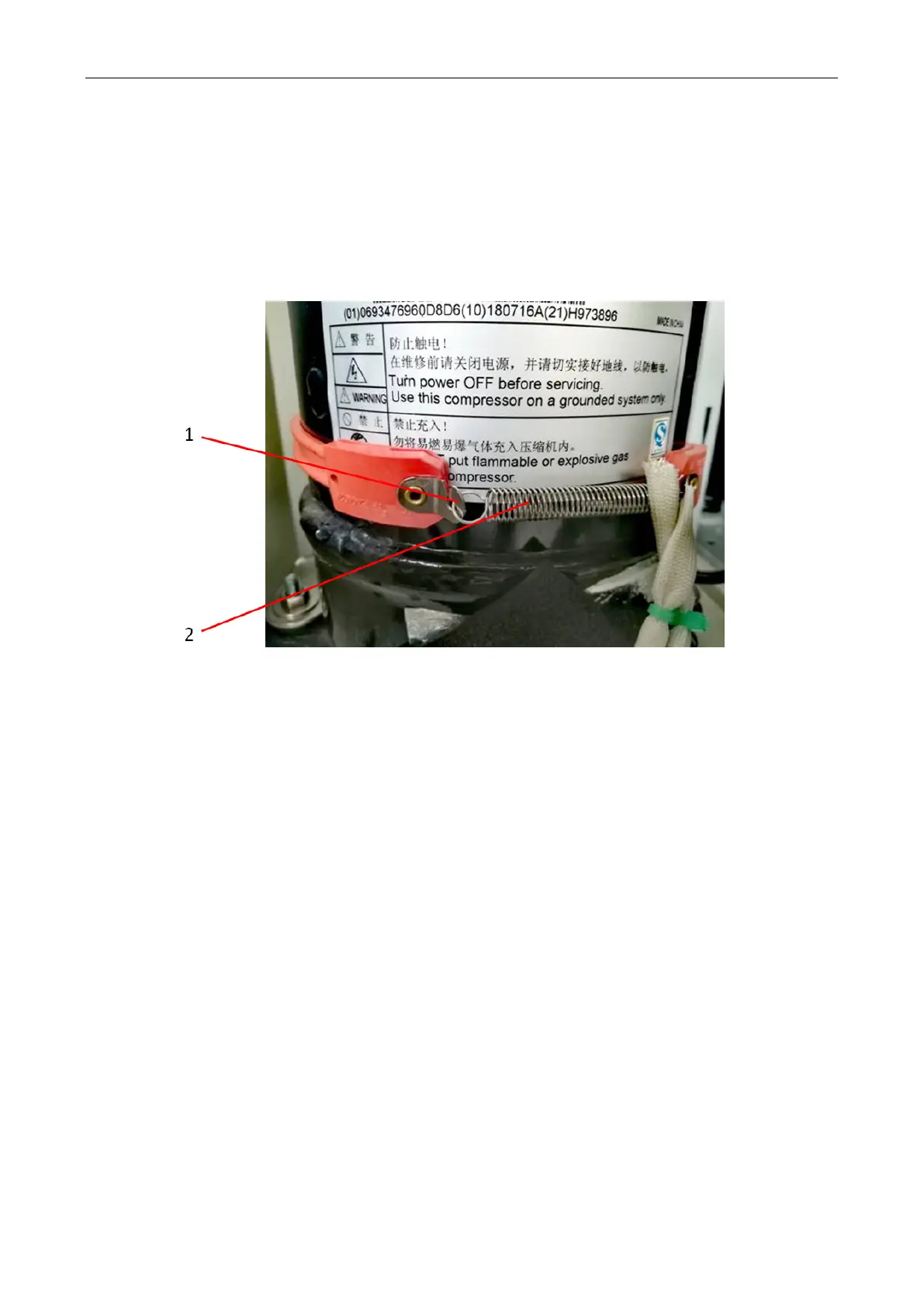

1 — buckle 2 — spring hook
5.17 Removing and Installing Condenser
Preparations
(1) Use the power circuit breaker to switch off the power of the GMV6 VRF system.
(2) Make sure that the unit pipeline system is free of refrigerant.
(3) Remove the unit’s panel by referring to 5.1.1 Removing and Installing the Unit Panel.
(4) Remove the top cover assembly by referring to 5.1.2 Removing and Installing the Unit Top Cover
Assembly.
Removing procedure
(1) Remove the baffle ring 2 and the fan unit 3 in turn, and the unit is shown as 4 after the removing.
To Next Page
