Gree GMV6 DC Inverter VRF Units Service Manual
275

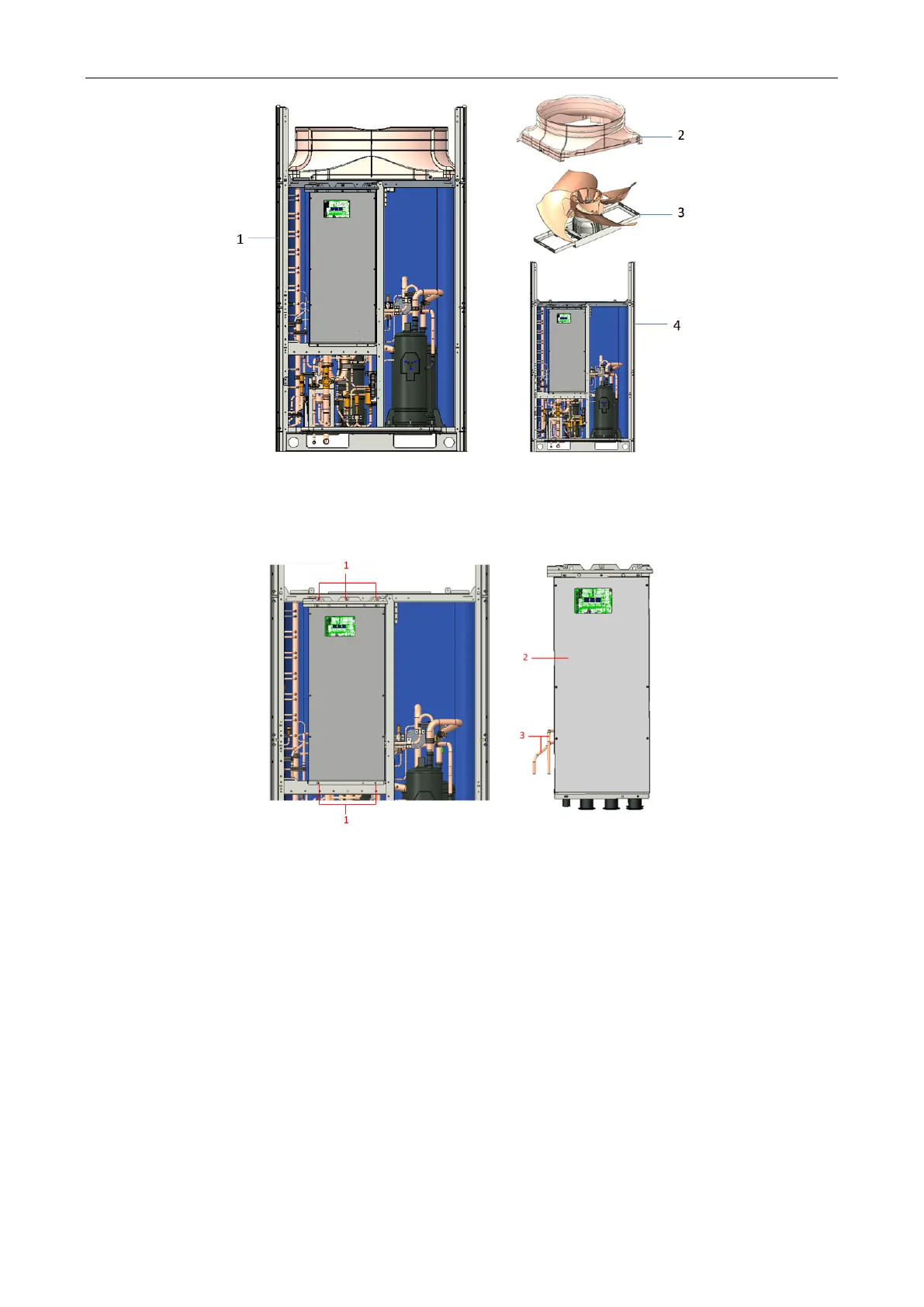

(2) Remove the electrical appliance box: Use a screwdriver to remove the screw that secures the
electrical appliance box and remove the electrical appliance box 2. Note: Before removing,
loosen the two refrigerant tubes of the electrical box radiator.
1 — screw 2 — electrical appliance box 3 — radiator refrigerant tube
(3) Remove the grille (back), the upper cross beams (two in front and rear), the right side panel,
and the left side panel.
(4) Use a screwdriver to remove the two screws that connect the condenser to the chassis.
(5) Weld and loosen the four connection points of the condenser and pipeline system and then pull
the connecting tube off.
Note:
When welding, do not get the other components burnt.
(6) Remove the condenser from the chassis.
