173
"PH" Over Voltage
Protection for the DC Bus
of Compressor Driver
The compr essor drive
board operates improperly
Yes
Whether th e i nput voltage of the
unit exceeds 460V?
No
Replace the compre ssor
drive board
Yes
Chang e the volta ge to
380V
2.136 "PL" Under Voltage Protection for DC Bus of Compressor
Drive
Fault display: main board of outdoor unit displays
Applicable models: GMV6, GMV5, GMV5S series
Fault diagnosis:
When the input power cable of the main board has a voltage below 320 V, the unit triggers protection
against faults.
Possible causes:
■ The unit's input power cable has a voltage below 320V;
■ The compressor drive board operates improperly.
Troubleshooting:

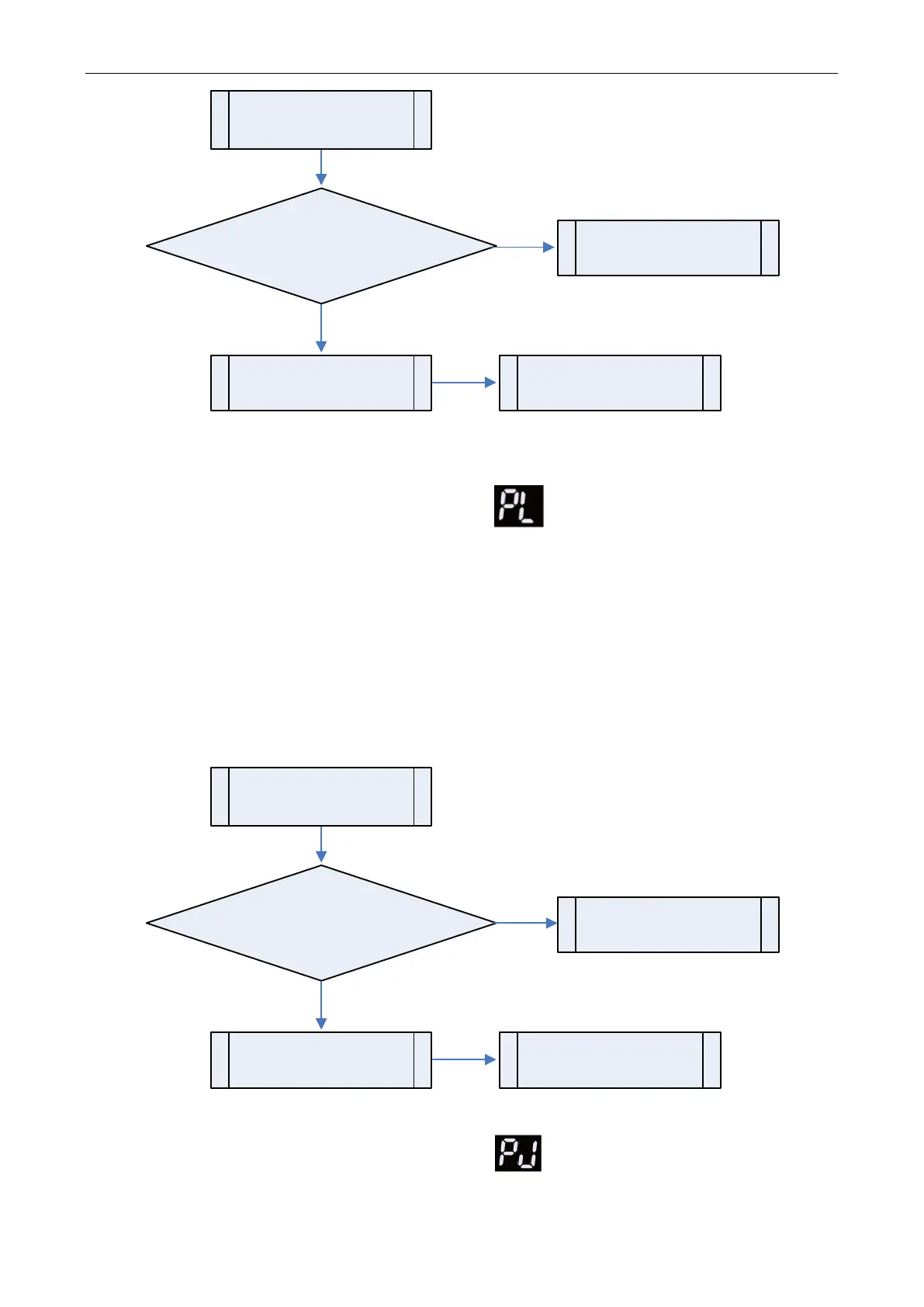

"PL" Under Vol tage
Protection for the DC Bus
of Compressor Driver
The compr essor drive
board operates improperly
Yes
Whether th e i nput voltage of the
unit falls below 320V?
No
Replace the compre ssor
drive board
Yes
Chang e the volta ge to
380V
2.137 "PJ" Inverter Compressor Startup Failure
Fault display: main board of outdoor unit displays
Fault diagnosis:
