3.2.3 Installation Space Requirements
The installation space of the unit should consider the maintenance space of the unit and the
ventilation of the unit. Select an installation method according to the actual situation.

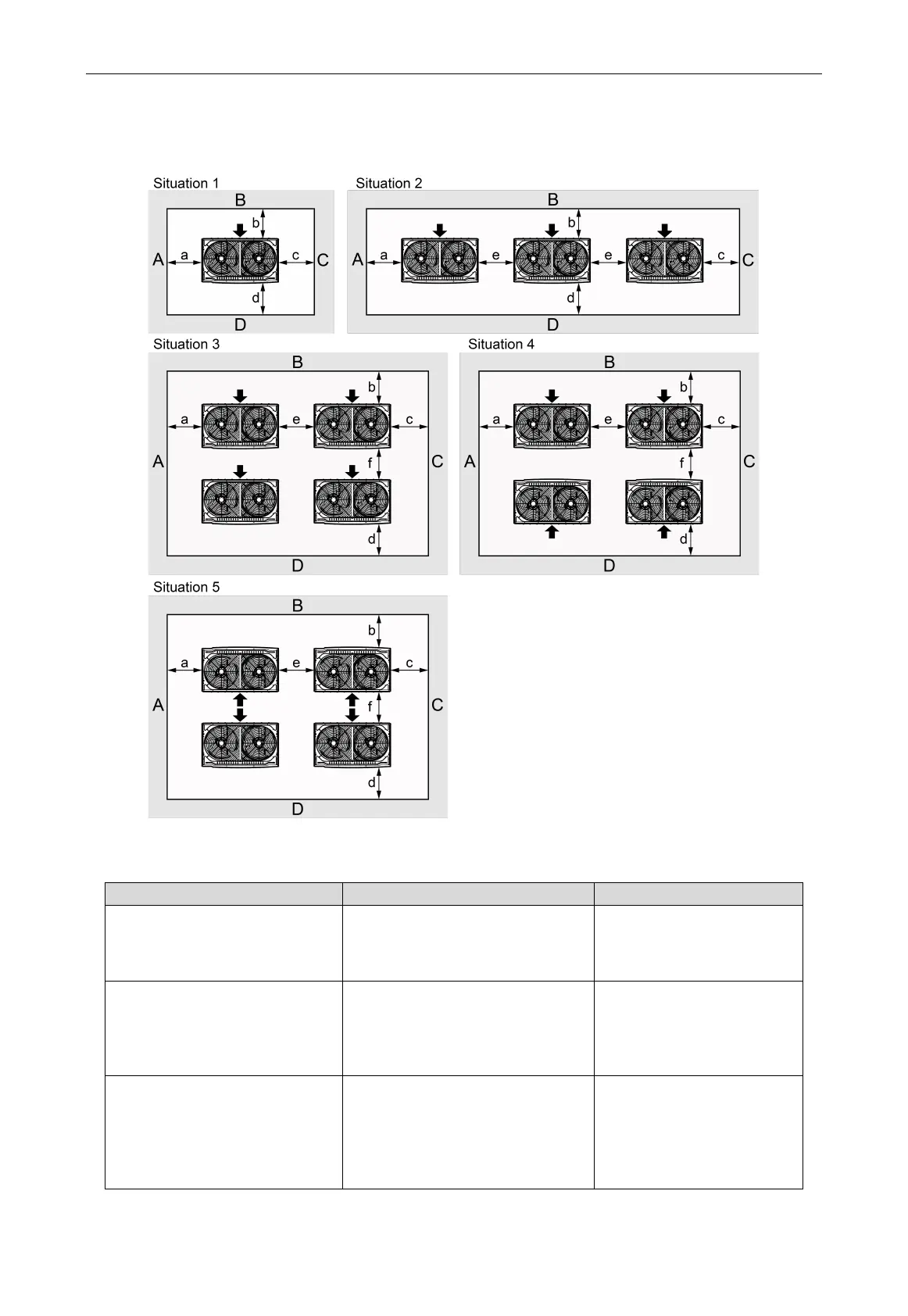

Fig.3.2.6
Unit: mm
Status
A+B+C+D
A+B
Status
1
a≥300
b≥100
c≥100
d≥500
a≥300
b≥300
Status
2
a≥300
b≥100
c≥100
d≥500
e≥100
a≥300
b≥300
e≥400
Status
3
a≥300
b≥100
c≥100
d≥500
e≥200
f≥600
—
