Gree GMV-ND06G/B4B-T - 4 Installation Instructions; Installation of Indoor Unit

Multi Variable Air Conditioners Wall Mounted Type Indoor Unit
5
(1) Use copper wire only as unit’s power cord. Operating temperature should be within its rated value.
(2) If the power cord is more than 15m(590-1/2 inch) long, please increase properly the sectional area of power cord to
avoid overload, which may cause accident.
(3) Above selection requirements: Power cord size is based on BV single-core wire (2~4pc) at 40°C (104°F) ambient
temperature when laying across plastic pipe. Air switch is D type and used at 40°C (104°F). If actual installation
condition varies, please lower the capacity appropriately according to the specifications of power cord and air switch
provided by manufacturer.
(4) Install cut-off device near the unit. The minimum distance between each stage of cut-off device should be 3mm (1/8
inch) (The same for both indoor unit and outdoor unit).
(5) If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
4 Installation Instructions
4.1 Installation of Indoor Unit

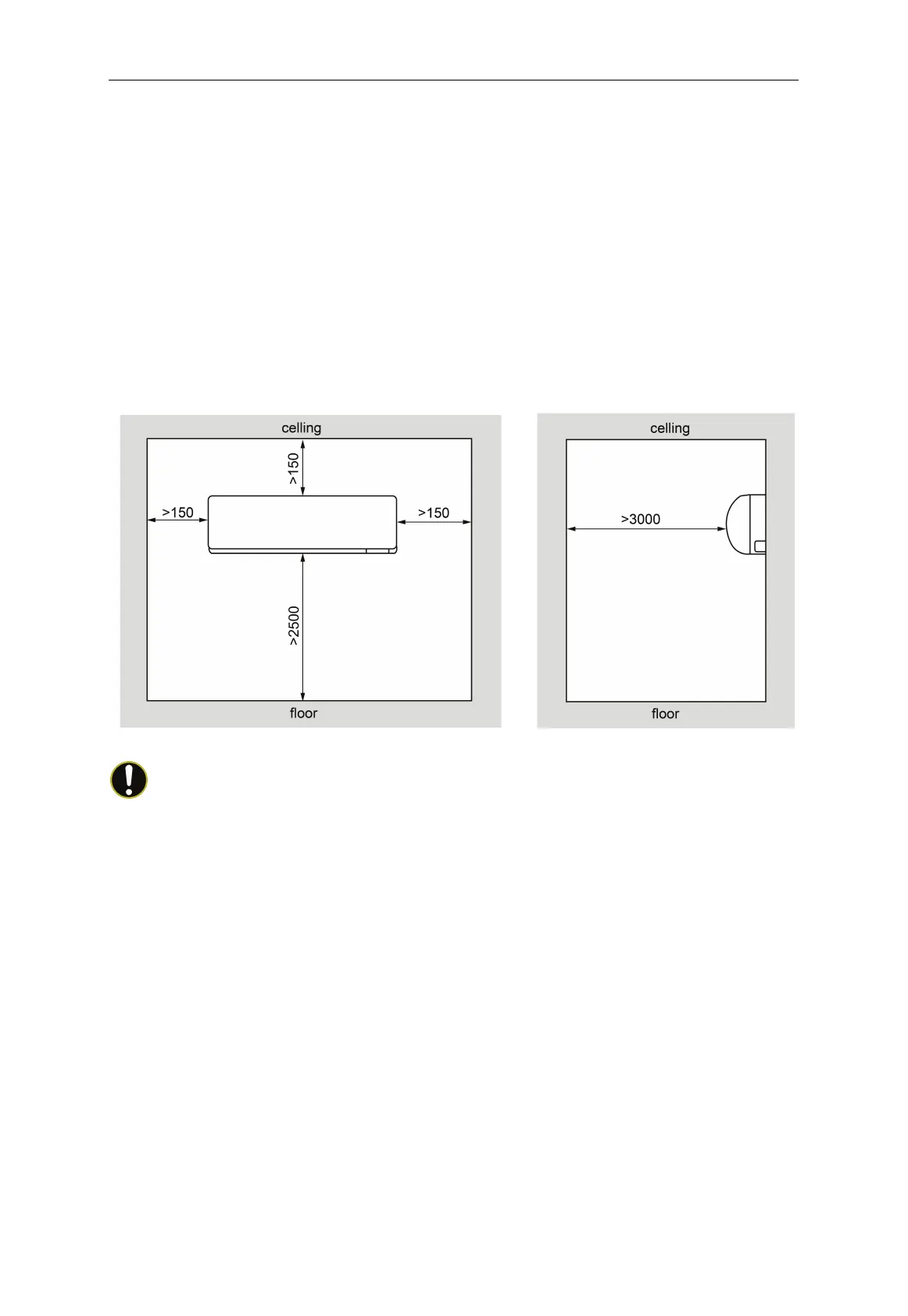

Fig. 4.1
Below are dimensions of W, H, D for different models:
Unit: mm(inch)
Item
Model
W H D
GMV-ND06G/B4B-T(U) GMV-ND07G/B4B-T(U)
GMV-ND09G/B4B-T(U) GMV-ND12G/B4B-T(U)
845(33-1/4) 289(11-3/8) 209(8-1/4)
GMV-ND14G/B4B-T(U)
970(38-3/16)
300(11-13/16)
224(8-13/16)
GMV-ND18G/B4B-T(U) GMV-ND24G/B4B-T(U)
1078(42-7/16)
325(12-13/16)
246(9-11/16)
GMV-ND30G/B4B-T(U) GMV-ND36G/B4B-T(U)
1350 (53-1/8)
326 (12-13/16)
258 (10-3/16)
