Gree GMV-ND22PLS/A-T

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
103
3.13 Installation of Super High Static Pressure Duct Type Indoor
Unit

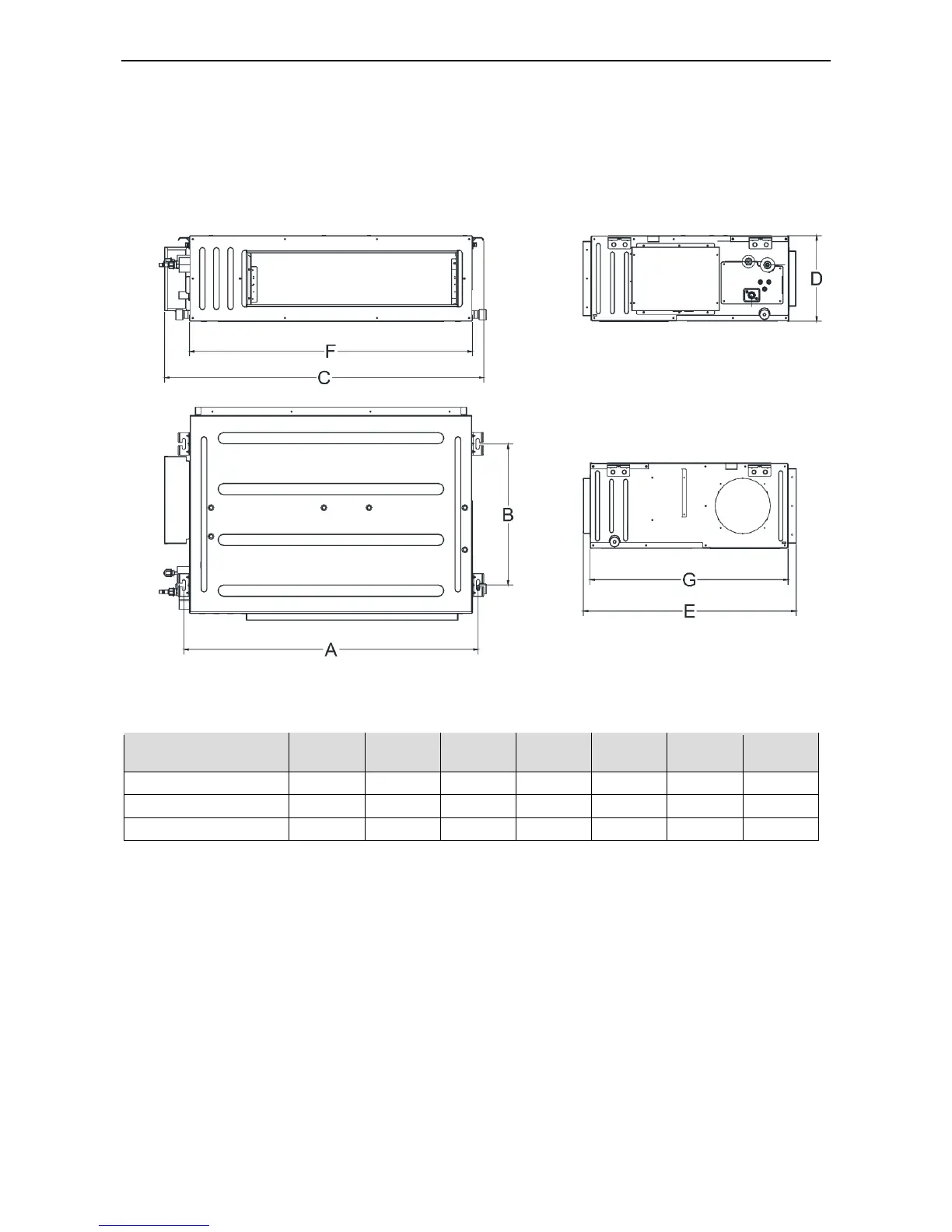

3.13.1 Outline and installation dimension
Model：GMV-ND22PHS/B-T~ GMV-ND160PHS/B-T
Below are dimensions of A, B, C, etc. for different models:
Unit: mm/inch
Model
A
B
C
D
E
F
G
GMV-ND22~50PHS/B-T
740
500
830
300
754
700
700
GMV-ND56~80PHS/B-T
1040
500
1130
300
754
1000
700
GMV-ND90~160PHS/B-T
1440
500
1530
300
754
1400
700
