4.7 1-way Cassette Type
Motor and fan
Step
Diagram

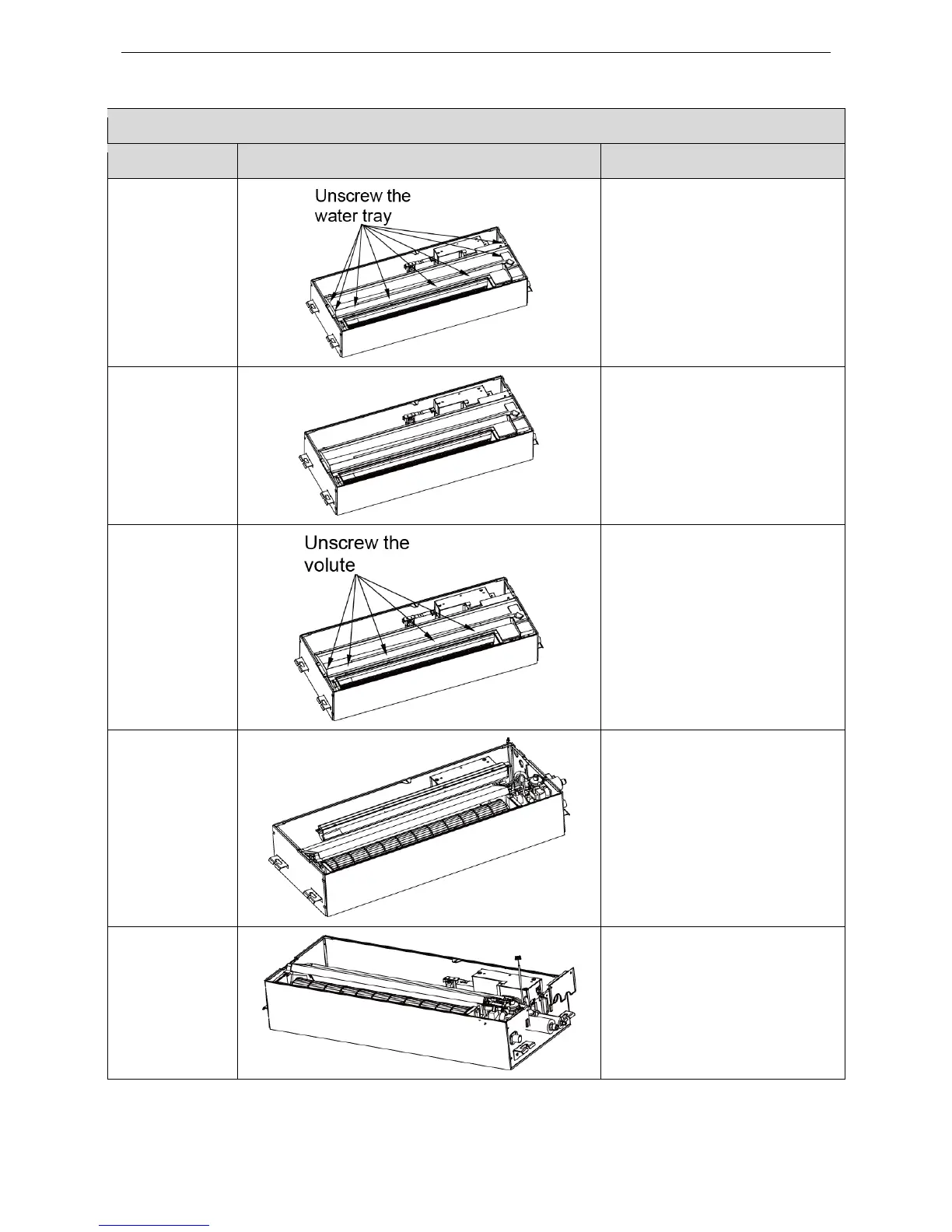

Operation Procedure
1. Unscrew the
water tray.
●Use a screwdriver to unscrew
the water tray.
2. Remove the
water tray.
●Remove the water tray.
3. Unscrew the
volute tongue.
●Use a screwdriver to unscrew
the volute tongue.
4. Remove the
volute tongue.
●Remove the volute tongue.
5. Unscrew the
outlet board.
●Use a screwdriver to unscrew
the outlet board and then remove
the board.
