5.4 4-way Cassette Type

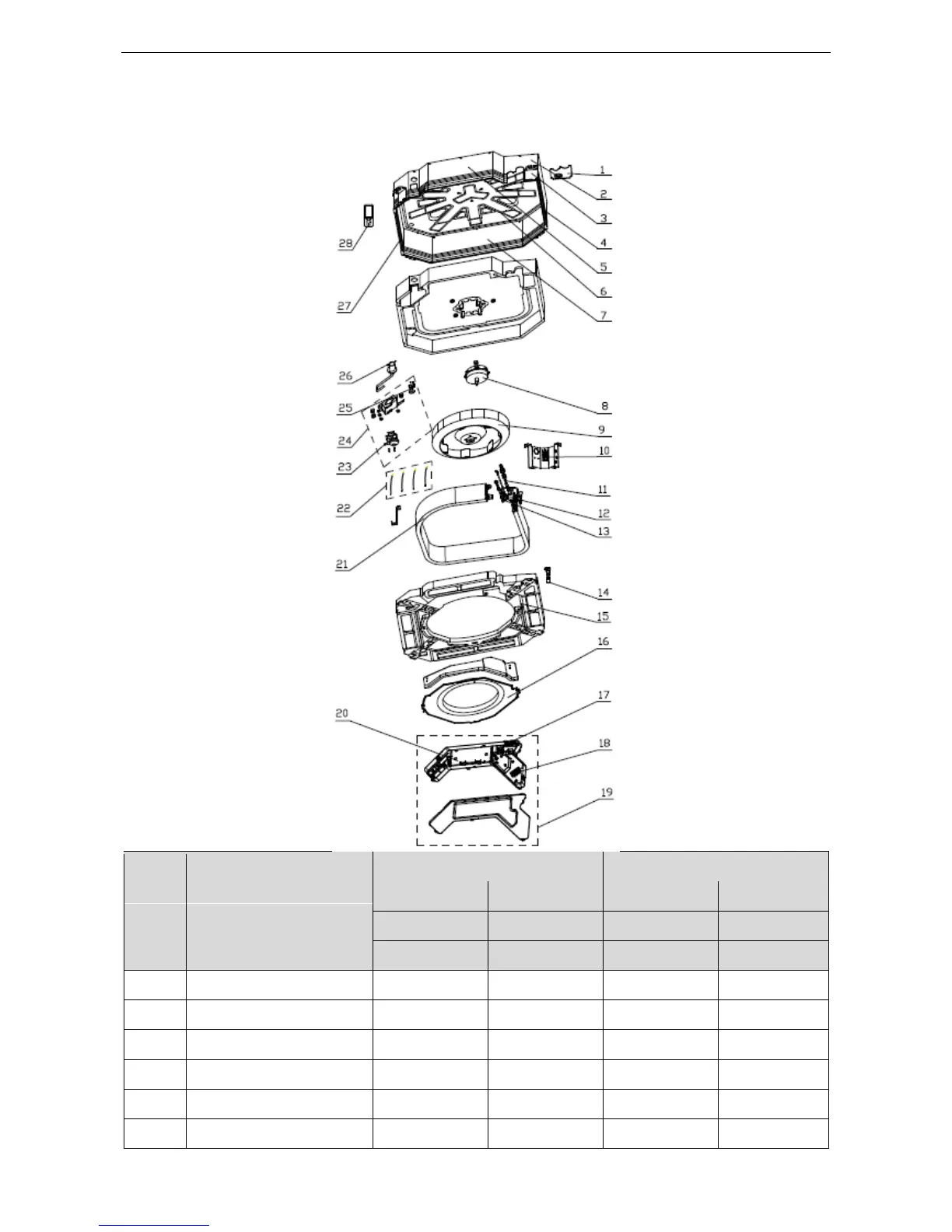

Exploded View of GMV-ND28T/A-T、GMV-ND36T/A-T、 GMV-ND45T/A-T、GMV-ND50T/A-T、GMV-
ND56T/A-T、GMV-ND63T/A-T、GMV-ND71T/A-T、GMV-ND80T/A-T、：
No.
Name of part
For the following unit
For the following unit
Unit
Product Code
Unit
Product Code
GMV-ND28T/A-T
CM500N0380
GMV-ND36T/A-T
CM500N0390
Part code
Quantity
Part code
Quantity
1
Tube Exit Plate Assy
'01382717
1
'01382717
1
2
Shell Assy
'01432701
1
'01432701
1
3
Body Installing Plate
'01332701
4
'01332701
4
4
Left Side Plate Assy
'01302740
1
'01302740
1
5
Front Side Plate assy
'01302717
1
'01302717
1
6
Base Plate Assy
'01222701
1
'01222701
1
