Gree GMV-ND22PLS/A-T Service Manual

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
131
Pump
Step
Diagram

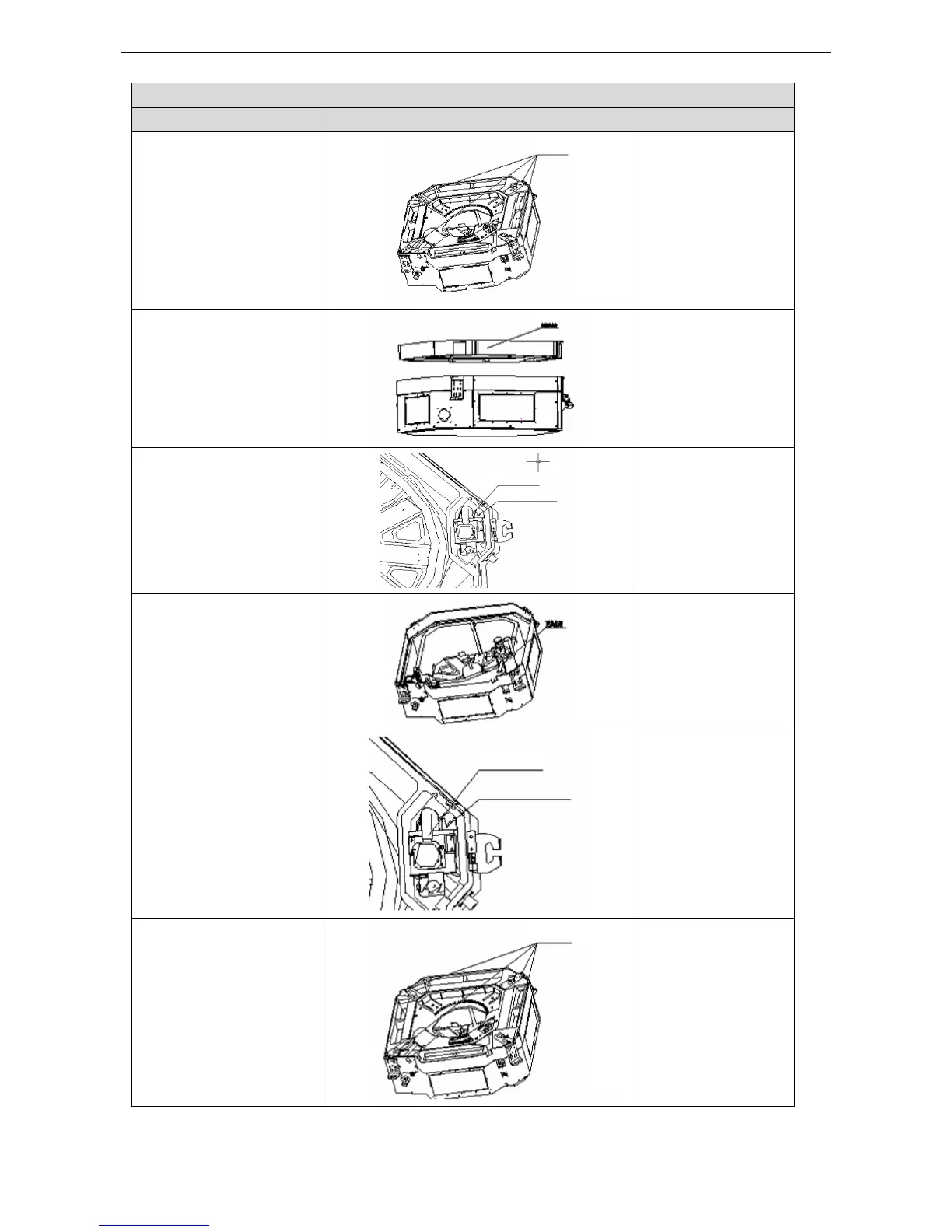

Operation Procedure
1. Unscrew the water tray.
Loosen the
screws
●Use a screwdriver to
unscrew the water tray.
2. Remove the water tray.
●Replace the water tray.
3. Remove the drainage duct
and unscrew the pump.
1. Unscrew the outlet pipe
2. Unscrew the pump
3. Remove the drainage
duct and use a
screwdriver to unscrew
the pump.
4. Replace the pump.
●Replace the pump.
5. Connect the drainage duct
and screw the new pump.
1. Screw the outlet pipe
2. Screw the pump
●Connect the drainage
duct and use a
screwdriver to screw the
new pump.
6. Install and screw the water
tray.
Tighten the screws
●Use a screwdriver to
screw the water tray.
