MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
163

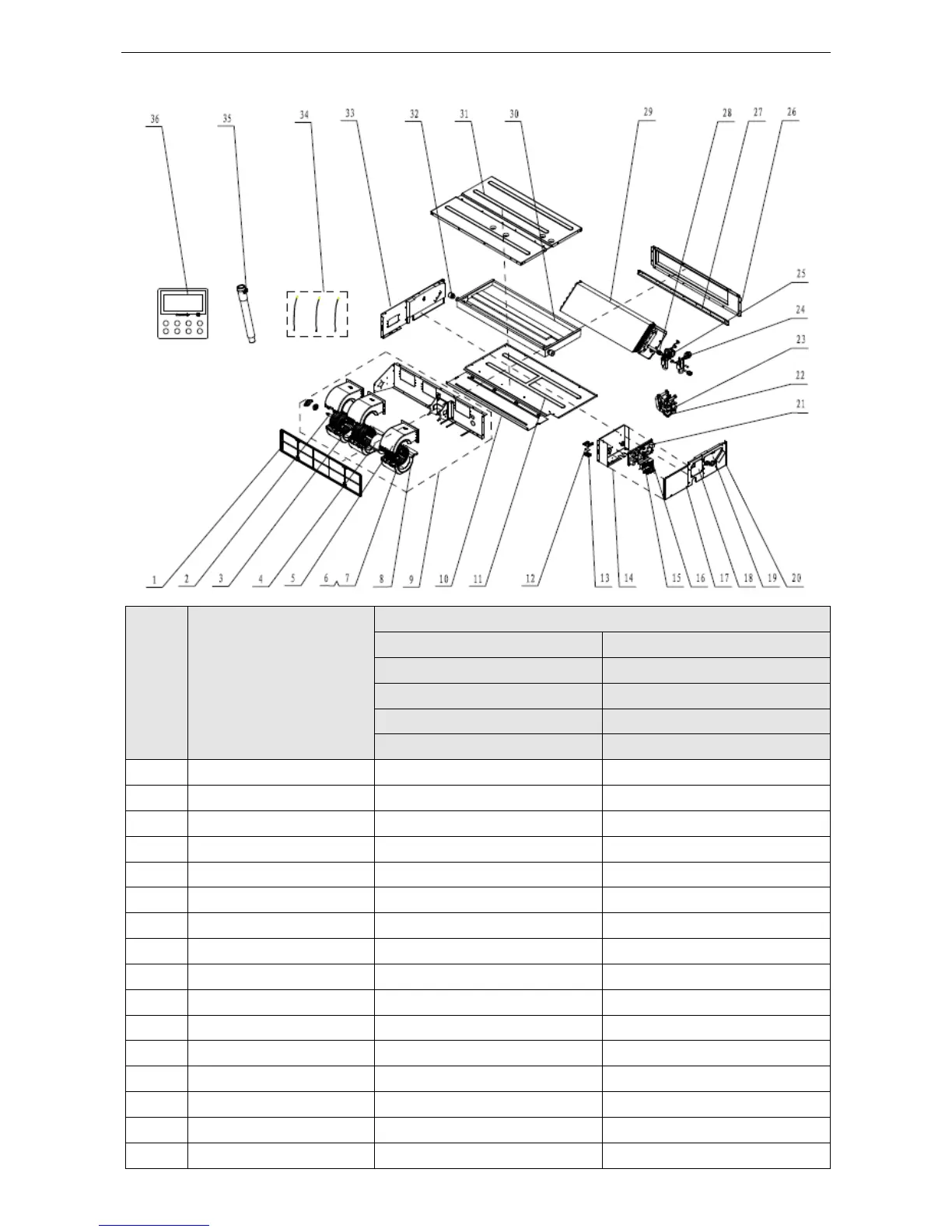

Exploded View of GMV-ND40PLS/A-T、GMV-ND45PLS/A-T、GMV-ND50PLS/A-T：
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND40PLS/A-T
CM800N3400
GMV-ND45PLS/A-T
CM800N3410
GMV-ND50PLS/A-T
CM800N3420
Part code
Quantity
1
Filter Sub-Assy
'11725210
1
2
Rotary Axis Sub-Assy
'73018020
1
3
Joint Slack
'73018731
1
4
Fan Motor
'15704100001
1
5
Front Volute Casing
'26905205
3
6
Centrifugal Fan
'10425200
3
7
Fan Bearing
'76512210
1
8
Rear Volute Casing
'26905206
3
9
Centrifugal fan assy
'15404100023
1
10
Cover board (Fan motor)
'01265333
1
11
Bottom Cover Plate
'01265332
1
12
Humidity Sensor
0
0
13
Humidity Sensor Cover
0
0
14
Electric Box Assy
'01394100204
1
15
Terminal Board
'42011106
1
16
Terminal Board
'4201800002601
1
