Gree GMV-ND22PLS/A-T

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
169

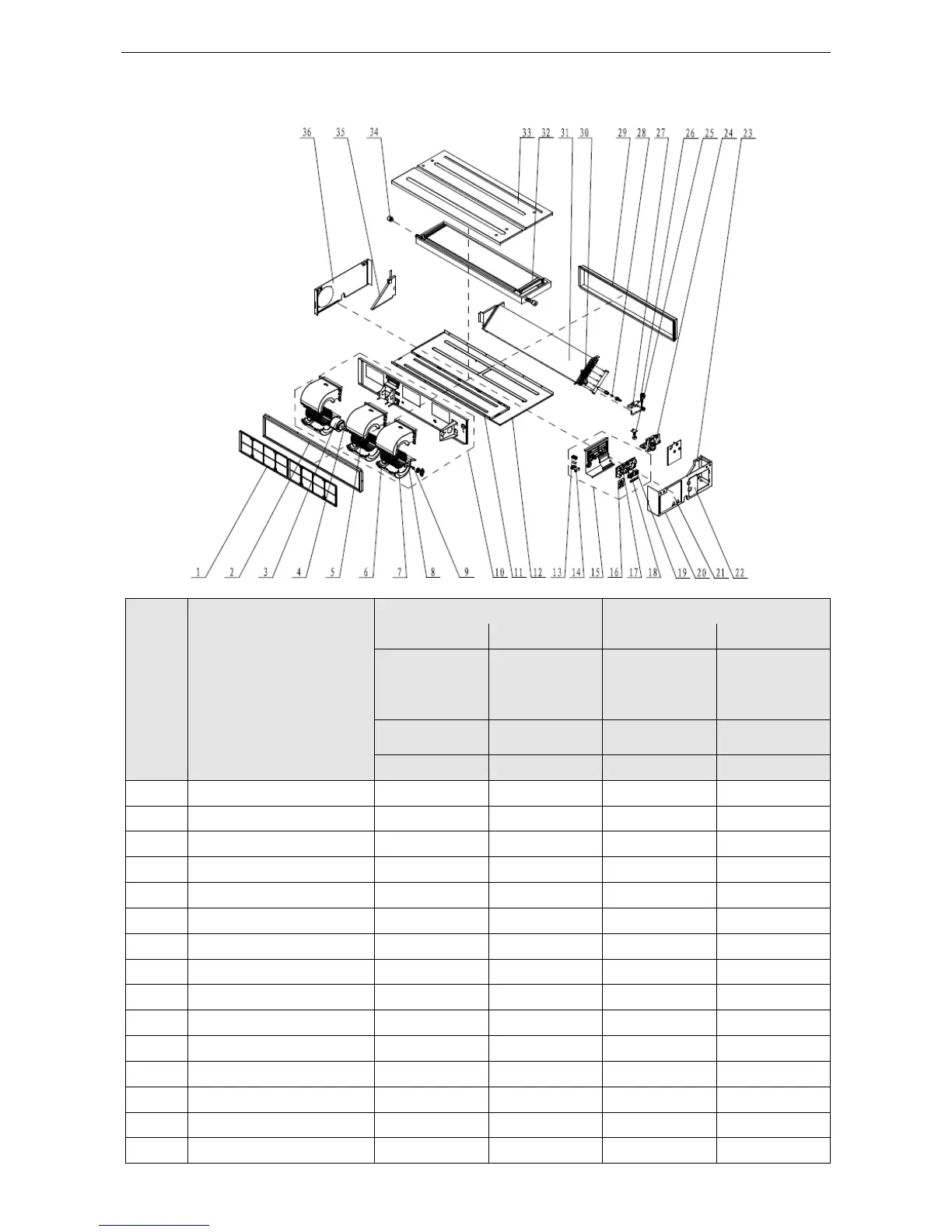

Exploded View of GMV-ND90PLS/A-T 、GMV-ND100PLS/A-T、GMV-ND112PLS/A-T、GMV-
ND125PLS/A-T、GMV-ND140PLS/A-T：
No.
Name of part
For the following unit
For the following unit
Unit
Product Code
Unit
Product Code
GMV-
ND90PLS/A-T
CM800N3450
GMV-
ND125PLS/A-T
CM800N3480
GMV-
ND100PLS/A-T
CM800N3460
GMV-
ND140PLS/A-T
CM800N3470
GMV-
ND112PLS/A-T
CM800N3530
/
/
Part code
Quantity
Part code
Quantity
1
Filter Sub-Assy
'11725206
2
'11725206
2
2
Air intake side-board Sub-assy
'02225271
1
'02225271
1
3
Brushless DC Motor
'15705200005
1
'15705200005
1
4
Joint Slack
'73018731
1
'73018731
1
5
Centrifugal fan
'1041410101
3
'1041410101
3
6
Rear volute casing
'26905209
3
'26905209
3
7
Front volute casing
'26905208
3
'26905208
3
8
Rotary Axis Sub-Assy
'73018000030
1
'73018000030
1
9
Fan Bearing
'76512210
1
'76512210
1
10
Centrifugal fan assy
` 15404100015
1
` 15404100015
1
11
Cover Of Air-In
'01265344
1
'01265344
1
12
Bottom Cover Plate
'01265343
1
'01265343
1
13
Humidity Sensor Cover
0
0
0
0
14
Humidity Sensor
0
0
0
0
15
Electric Box Assy
'01394100242
1
'01394100242
1
